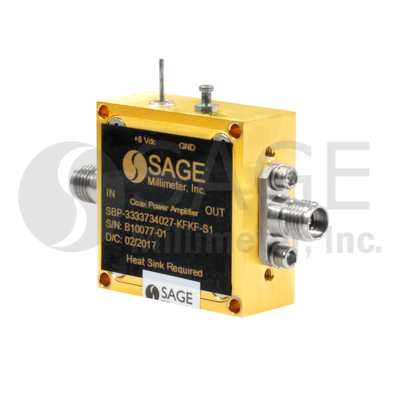

Power Amplifiers – Coaxial Power Amplifiers

メーカー名:SAGE Millimeter, Inc.
パワーアンプは、最先端のPHEMTまたはMMICデバイス、薄膜技術、および改善されたDC電源を使用して設計および製造され、優れた電力付加効率(PAE)と高い直線性で高出力電力を供給します。
標準モデルは汎用アプリケーションに焦点を合わせていますが、異なる周波数範囲、ゲイン、および電力レベルを持つ追加モデルがWebサイトにリストされています。
ユーザーの特定のニーズを満たすカスタムデザインも提供されます。

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Gain [dB]P1dB [dBm]Psat [dBm]Input Return Loss [dB]Output Return Loss [dB]DC BiasRF Input/Output
SBP-5037033518-VFVF-S1Datasheet507035+18+201010+8 VDC/650 mAV(F)
SBP-5536533022-VFVF-S1Datasheet556530+22+231010+8 VDC/800 mAV(F)
SBP-4036033519-VFVF-S1Datasheet406035+19+201010+8 VDC/650 mAV(F)
SBP-4036031519-VFVF-S1Datasheet406015+19+201010+8 VDC/300 mAV(F)
SBP-3335034520-2F2F-S1Datasheet335045+20+221010+8 VDC/800 mA2.4 mm (F)
SBP-3335033018-2F2F-S1Datasheet335030+18+201010+8 VDC/650 mA2.4 mm (F)
SBP-4035033018-2F2F-S1Datasheet405030+18+201010+8 VDC/650 mA2.4 mm (F)
SBP-4034833529-2F2F-S1Datasheet404835+29+3188+8 VDC/2.5 A2.4 mm (F)
SBP-3534733520-VFVF-S1Datasheet354735+20+22156+8 VDC/1000 mAV(F)
SBP-3534733520-2F2F-S1Datasheet354735+20+22156+8 VDC/1000 mA2.4 mm (F)
SBP-2634634023-2F2F-S1Datasheet264640+23+261010+8 VDC/1100 mA2.4 mm (F)
SBP-4334633529-2F2F-S1Datasheet434635+29+311010+8 VDC/2500 mA2.4 mm (F)
SBP-4034534528-2F2F-S1Datasheet404545+28+31127+8 VDC/2200 mA2.4 mm (F)
SBP-1734333524-KFKF-E3Datasheet174335+24+261010+12 VDC/500 mAK(F)
SBP-1834331824-KFKF-E3Datasheet184318+24+2588+12 VDC/400 mAK(F)
SBP-1834033020-KFKF-S1Datasheet184030+20+211010+8 VDC/280 mAK(F)
SBP-1834032020-KFKF-S1Datasheet184020+20+211010+8 VDC/200 mAK(F)
SBP-2034031723-KFKF-E3Datasheet204017+22+231010+12 VDC/500 mAK (F)
SBP-2034031723-KFKF-S1Datasheet204017+22+231010+8 VDC/500 mAK (F)
SBP-2034031723-KFKF-E3-MLDatasheet204017+22+231010+12 VDC/500 mAK (F)
SBP-2734132530-KFKF-E1-HRDatasheet26.54125+30+331010+8 VDC/3 AK(F)
SBP-2734034526-KFKF-S1Datasheet26.54045+26+271010+8 VDC/1100 mAK(F)
SBP-2734033526-KFKF-S1Datasheet26.54035+26+271010+8 VDC/1100 mAK(F)
SBP-2734033530-KFKF-S1-HRDatasheet26.54035+30+321010+8 VDC/4.0 AK(F)
SBP-2734033026-KFKF-S1Datasheet26.54030+26+271010+8 VDC/1100 mAK(F)
SBP-3734033027-KFKF-S1Datasheet374030+27+29510+8 VDC/1800 mAK(F)
SBP-3133834034-KFKF-C1-2Datasheet313840+34+351010+8 VDC/4 AK(F)
SBP-3433735038-KFKF-E3Datasheet343750+38+401010+12 VDC/10 mAK(F)

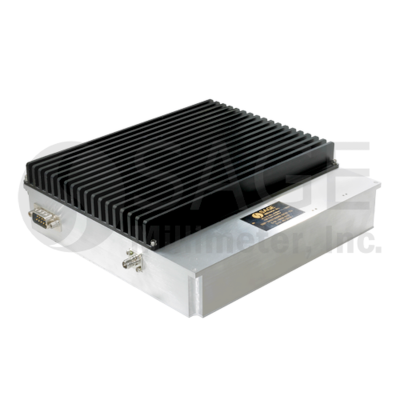

SBP-3533735536-KFKF-E3Datasheet34.536.555+36+371010+12 VDC/7 AK(F)
SBP-2333534028-KFKF-E3Datasheet233540+28+301010+12 VDC/1100 mAK(F)
SBP-2333532028-KFKF-E3Datasheet233520+28+301010+12 VDC/900 mAK(F)
SBP-2733133836-KFKF-C1-2Datasheet273138+36+381010+8 VDC/4.2 AK(F)
SBP-1832733030-KFKF-S1Datasheet1826.530+30+301010+8 VDC/1500 mAK(F)
SBP-1832733028-KFKF-S1Datasheet1826.530+28+301010+8 VDC/850 mAK(F)
SBP-1832732528-KFKF-S1Datasheet1826.525+28+301010+8 VDC/850 mAK(F)
SBP-2332633533-KFKF-S1Datasheet232635+33+351010+8 VDC/3000 mAK(F)
SBP-2332633533-2FKF-E1-HRDatasheet232635+33+351010+8 VDC/3 A2.4 mm (F)/K(F)
SBP-1832332030-KFKF-E3Datasheet182320+30+311010+8 VDC/900 mAK(F)

備考

Remarks

お問い合わせからアフターフォローまで一貫して当社にお任せ下さい。
