Phase Locked Oscillators　

メーカー名：Eravant

製品仕様　

Product Specifications

Model NumberData sheetCenter FrequencyOutput PowerPhase Noise, Internally Referenced @ 10 KHzExternal Reference FrequencyExternal Reference Input PowerDC BiasOutput PortReference
SOP-11110013-SF-EBDatasheet1.06 GHz+13 dBm-10 MHz0 dBm+12 VDC/280 mASMA (F)External
SOP-13210018-SF-E8Datasheet1.28 GHz+18 dBm-10 MHz+0 dBm+12 VDC/200 mASMA (F)External
SOP-15201113-SF-EBDatasheet1.52 GHz+13 dBm-10 MHz0 dBm+12 VDC/120 mASMA (F)External
SOP-10201113-SF-EBDatasheet1.00 GHz+13 dBm-10 MHz0 dBm+12 VDC/140 mASMA (F)External
SOP-11301113-SF-EBDatasheet10.5 GHz+13 dBm-10 MHz0 dBm+10 VDC/270 mASMA (F)External
SOP-11305110-SF-EBDatasheet10.75 GHz+10 dBm-50 MHz0 dBm+12 VDC/150 mASMA (F)External
SOP-10310114-SF-BBDatasheet10 GHz+14 dBm-110 dBc/Hz10 MHz0 dBm+12 VDC/550 mASMA (F)Internal or External
SOP-10310114-SF-BB-2Datasheet28 GHz+15 dBm-100 dBc/Hz--+12 Vdc/450 mA2.92 mm (F)Internal
SOP-11301116-SF-E2Datasheet11.4 GHz+16 dBm-10 MHz0 dBm+10 VDC/270 mASMA (F)External
SOP-11301116-SF-EBDatasheet11.40 GHz+16 dBm-10 MHz0 dBm+10 VDC/270 mASMA (F)External
SOP-12401113-06-B1-2Datasheet114.98 GHz+13 dBm-70 dBc/Hz10 MHz+0 dBm-WR-06 WGExternal or Internal
SOP-13301113-SF-EBDatasheet12.62 GHz+13 dBm-10 MHz0 dBm+10 VDC/270 mASMA (F)External
SOP-13305110-SF-EBDatasheet12.8 GHz+10 dBm-50 MHz0 dBm+12 VDC/150 mASMA (F)External
SOP-12301213-SF-EBDatasheet12 GHz+13 dBm-100 MHz0 dBm+12 VDC/250 mASMA (F)External
SOP-12310113-SF-BBDatasheet12 GHz+13 dBm-97 dBc/Hz10 MHz0 dBm+12 VDC/500 mASMA (F)Internal or External
SOP-12310113-SF-ICDatasheet12 GHz+13 dBm-100 dBc/Hz--+15 VDCSMA (F)Internal
SOP-13310113-SF-BBDatasheet12.9 GHz+13 dBm-97 dBc/Hz10 MHz0 dBm+12 VDC/500 mASMA (F)Internal or External
SOP-14301113-SF-EB-2Datasheet14.28 GHz+13 dBm-10 MHz0 dBm+12 VDC/270 mASMA (F)External
SOP-14301113-SF-EBDatasheet14.38 GHz+13 dBm-10 MHz0 dBm+12 VDC/270 mASMA (F)External
SOP-15310110-SF-EB-2Datasheet14.5 GHz+10 dBm-100 MHz0 dBm-SMA (F)External
SOP-14310110-SF-BBDatasheet-+10 dBm-90 dBc/Hz10 MHz0 dBm+12 VDC/550 mASMA (F)Internal or External
SOP-15310110-SF-BBDatasheet14.50 GHz+10 dBm-97 dBc/Hz10 MHz0 dBm+12 VDC/500 mASMA (F)Internal or External
SOP-16301113-SF-EBDatasheet15.87 GHz+13 dBm-10 MHz0 dBm+12 VDC/340 mASMA (F)External
SOP-15310113-KF-BBDatasheet15 GHz+13 dBm-97 dBc/Hz10 MHz0 dBm+12 VDC/550 mA2.92mm (F)Internal or External
SOP-16310110-SF-EB-2Datasheet16.3 GHz+10 dBm-100 MHz0 dBm+12 VDC/250 mASMA (F)External
SOP-17310014-SF-EBDatasheet16.7 GHz+14 dBm-10 MHz0 dBm+12 VDC/270 mASMA (F)External
SOP-17310014-SF-EB-2Datasheet16.71 GHz+14 dBm-10 MHz0 dBm+12 VDC/270 mASMA (F)External
SOP-16310110-SF-EBDatasheet16 GHz+10 dBm-100 MHz0 dBm+12 VDC/250 mASMA (F)External
SOP-16310110-SF-BBDatasheet16 GHz+10 dBm-90 dBc/Hz10 MHz0 dBm+12 VDC/500 mASMA (F)Internal or External
SOP-17310114-SF-BBDatasheet16.70 GHz+14 dBm-85 dBc/Hz10 MHz0 dBm+12 VDC/280 mASMA (F)Internal or External
SOP-17310114-SF-BB-2Datasheet16.71 GHz+14 dBm-83 dBc/Hz10 MHz0 dBm+12 VDC/280 mASMA (F)Internal or External
SOP-18310110-SF-EBDatasheet18 GHz+10 dBm-100 MHz0 dBm+12 VDC/250 mASMA (F)External
SOP-19310013-SF-BBDatasheet18.8 GHz+13 dBm-85 dBc/Hz10 MHz0 dBm+12 VDC/550 mASMA (F)Internal or External
SOP-19310013-SF-EBDatasheet19.2 GHz+13 dBm-10 MHz0 dBm+12 VDC/300 mASMA (F)External
SOP-20310110-SF-BB-2Datasheet19.6 GHz+10 dBm-93 dBc/Hz10 MHz0 dBm+12 VDC/550 mASMA (F)Internal or External
SOP-24210110-SF-BBDatasheet2.4 GHz+10 dBm-105 dBc/Hz10 MHz0 dBm+12 VDC/350 mASMA (F)Internal or External
SOP-20310110-SF-EBDatasheet20.4 GHz+10 dBm-100 MHz0 dBm+12 VDC/450 mASMA (F)External
SOP-21310110-SF-EBDatasheet20.5 GHz+10 dBm-100 MHz0 dBm+12 VDC/450 mASMA (F)External
SOP-20310110-SF-BBDatasheet20 GHz+10 dBm-93 dBc/Hz10 MHz0 dBm+12 VDC/550 mASMA (F)Internal or External
SOP-20310113-SF-BBDatasheet20 GHz+13 dBm-93 dBc/Hz10 MHz0 dBm+12 VDC/550 mASMA (F)Internal or External
SOP-20310116-SF-I1Datasheet20 GHz+16 dBm-80 dBc/Hz--+12 VDCSMA (F)Internal
SOP-22301120-SF-I2Datasheet22.35 GHz+20 dBm-100 dBc/Hz--+12 VDCSMA (F)Internal

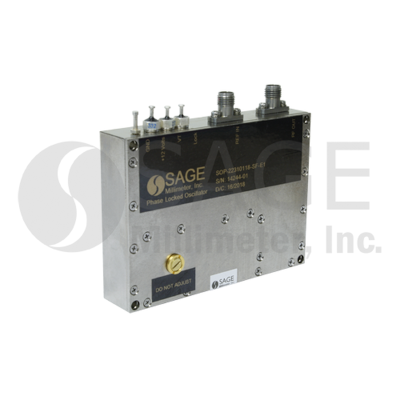

SOP-22310118-SF-E1Datasheet22 GHz+18 dBm-100 MHz+0 dBm+12 VDC/350 mASMA (F)External
SOP-24310113-KF-BBDatasheet23.5 GHz+13 dBm-93 dBc/Hz10 MHz0 dBm+12 VDC/550 mA2.92mm (F)Internal or External
SOP-25305110-KF-EIDatasheet24.5 GHz+10 dBm-100 dBc/Hz50 MHz0 dBm+12 VDC/400 mAK (F)External or Internal
SOP-25310113-KF-I1Datasheet24.5 GHz+13 dBm-104 dBc/Hz--+12 VDC2.92 mm (F)Internal
SOP-25310110-KF-BBDatasheet24.5 GHz+10 dBm-93 dBc/Hz10 MHz0 dBm+12 VDC/550 mA2.92mm (F)Internal or External
SOP-25310113-KF-BBDatasheet24.5 GHz+13 dBm-93 dBc/Hz10 MHz0 dBm+12 VDC/550 mA2.92mm (F)Internal or External
SOP-26301113-KF-EB-2Datasheet25.6 GHz+13 dBm-100 MHz0 dBm+12 VDC/300 mA2.92mm K(F)External
SOP-25301110-KF-EBDatasheet25 GHz+10 dBm-10 MHz0 dBm+12 VDC/280 mASMA (F)External
SOP-26301113-KF-EBDatasheet26.35 GHz+13 dBm-10 MHz0 dBm+12 VDC/300 mA2.92mm K(F)External
SOP-28310113-KF-BBDatasheet28 GHz+13 dBm-100 dBc/Hz10 MHz0 dBm+12 VDC/550 mA2.92mm (F)Internal or External
SOP-28310115-KF-I1Datasheet28 GHz+15 dBm-100 dBc/Hz--+12 Vdc/450 mA2.92 mm (F)Internal
SOP-29301113-KF-EBDatasheet29.4 GHz+13 dBm-10 MHz0 dBm+12 VDC/300 mA2.92mm K(F)External
SOP-29310015-SF-E8-2Datasheet29.35 GHz+13 dBm-97 dBc/Hz10 MHz0 dBm+12 VDC/550 mASMA (F)Internal or External
SOP-32201113-SF-EBDatasheet3.2 GHz+13 dBm-10 MHz0 dBm+12 VDC/250 mASMA (F)External
SOP-32210013-SF-E8Datasheet3.2 GHz+13 dBm-10 MHz+0 dBm+12 VDC/200 mASMA (F)External
SOP-34210117-SF-E2Datasheet3.4 GHz+17 dBm-100 MHz+0 dBm+13 VDC/220 mA2.92 mm (F)External
SOP-03301213-SF-BBDatasheet3 GHz+13 dBm-105 dBc/Hz10 MHz0 dBm+12 VDC/550 mASMA (F)Internal or External
SOP-32310113-KF-BBDatasheet32 GHz+13 dBm-85 dBc/Hz10 MHz0 dBm+12 VDC/550 mA2.92mm (F)Internal or External
SOP-34310115-KM-I1Datasheet34 GHz+15 dBm-100 dBc/Hz--+12 VDC/480 mA2.92 mm (M)Internal
SOP-35301113-KF-E1Datasheet35 GHz+13 dBm-10 MHz+0 dBm+12 VDC/400 mA2.92 mm (F)External
SOP-39310129-KF-E1Datasheet39.2 GHz+29 dBm-100 MHz+0 dBm+12 VDC/1700 mA2.92 mm (F)External
SOP-39301110-KF-E1Datasheet39 GHz+10 dBm-10 MHz+0 dBm+12 VDC/450 mA2.92 mm (F)External
SOP-39310115-KM-I1Datasheet39 GHz+15 dBm-100 dBc/Hz--+12 VDC2.92 mm (M)Internal
SOP-50205110-SF-EBDatasheet4.9 GHz+10 dBm-50 MHz0 dBm+12 VDC/150 mASMA (F)External
SOP-52205110-SF-EBDatasheet5.15 GHz+10 dBm-50 MHz0 dBm+12 VDC/150 mASMA (F)External
SOP-58110013-SF-EBDatasheet582.2 MHz+13 dBm-10 MHz0 dBm+12 VDC/280 mASMA (F)External
SOP-68201213-SF-EBDatasheet6.8 GHz+13 dBm-100 MHz0 dBm-SMA (F)External
SOP-70201110-SF-EBDatasheet6.95 GHz+10 dBm-10 MHz0 dBm+12 VDC/220 mASMA (F)External
SOP-61301115-15-E1Datasheet61.0 GHz+15 dBm-100 MHz+0 dBm-WR-15 WGExternal
SOP-75201113-SF-EBDatasheet7.465 GHz+13 dBm-10 MHz0 dBm-SMA (F)External
SOP-75310117-12-B1Datasheet75 GHz+17 dBm-75 dBc/Hz100 MHz+0 dBm+13 VDC/1100 mAWR-12 WGExternal or Internal
SOP-09301113-SF-EBDatasheet9 GHz+13 dBm-100 MHz0 dBm+12 VDC/250 mASMA (F)External
SOP-94310117-10-B1Datasheet94 GHz+17 dBm-70 dBc/Hz100 MHz+0 dBm+13 VDC/1400 mAWR-10 WGExternal or Internal

備考　

Remarks
