Passive Frequency Multipliers

メーカー名:Eravant
周波数変換器frequency-converters

二つの信号を混合する混合器のことです。
ミキサには入力信号RF(Radio Frequency)と、ローカル信号LO(Local Oscillator)そして出力信号IF(Intermediate Frequency)の三つがあります。

製品仕様

Product Specifications

ModelData sheetMinimum Output Frequency [GHz]Maximum Output Frequency [GHz]Output Power [dBm]Minimum Input Frequency [GHz]Maximum Input Frequency [GHz]Input Power [dBm]Output PortInput Port
SFP-05210-S2Datasheet140220-370110+17WR-05 WaveguideWR-10 Waveguide

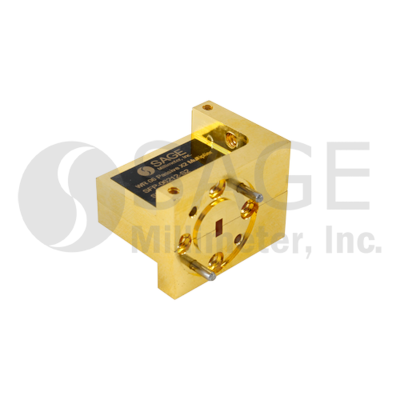

SFP-06212-S2Datasheet11017005585+16WR-06 WaveguideWR-12 Waveguide
SFP-06319-U6Datasheet110170-336.6756.67+20WR-06 WaveguideWR-19 Waveguide
SFP-08215-S2Datasheet90140+24570+16WR-08 WaveguideWR-15 Waveguide

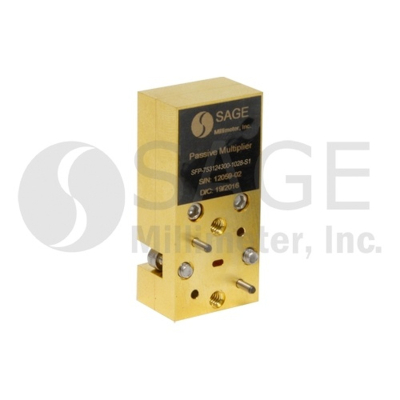

SFP-753124300-1028-S1Datasheet75120+02540+20WR-10 WaveguideWR-28 Waveguide
SFP-1022F-S2Datasheet75110+037.555+17WR-10 Waveguide2.4 mm (F)
SFP-102VF-S2Datasheet75110+037.555+17WR-10 WaveguideV(F)
SFP-103KF-S2Datasheet7511002536.67+17WR-10 WaveguideK (F)
SFP-103KF-S1-MDatasheet75110-52536.6+16WR-10 WaveguideK (F)
SFP-10328-S1Datasheet75110+02536.67+20WR-10 WaveguideWR-28 Waveguide
SFP-1222F-S2Datasheet6090+33045+17WR-12 Waveguide2.4 mm (F)
SFP-1222F-S1Datasheet6090+53045+20WR-12 Waveguide2.4 mm (F)
SFP-1222F-S1-MDatasheet6090+33045+15WR-12 Waveguide2.4 mm (F)
SFP-123KF-S1Datasheet6090+32030+20WR-12 WaveguideK(F)
SFP-123KF-S1-MDatasheet6090-32030+16WR-12 Waveguide2.92 mm (F)
SFP-15228-S1Datasheet5075+52537.5+20WR-15 WaveguideWR-28 Waveguide
SFP-152KF-S1-MDatasheet4080+32040+15WR-15 WaveguideK(F)
SFP-152KF-S2Datasheet5075+42537.5+17WR-15 WaveguideK (F)
SFP-152KF-S1Datasheet5075+62537.5+20WR-15 WaveguideK(F)
SFP-153KF-S1-MDatasheet5075-316.6725+16WR-15 WaveguideK(F)
SFP-192KF-S1Datasheet4060+62030+20WR-19 WaveguideK(F)
SFP-363573303-19SF-N1Datasheet3657+31219+20WR-19 WaveguideSMA (F)
SFP-222KF-S1Datasheet3350+716.525+20WR-22 WaveguideK(F)
SFP-223SF-S1Datasheet3350+31116.67+20WR-22 WaveguideSMA (F)
SFP-223403205-28SF-S1Datasheet2240+51120+18WR-28 WaveguideSMA (F)
SFP-243423303-28SF-S1Datasheet2442+3814+20WR-28 WaveguideSMA (F)
SFP-2734033N05-28SF-S1Datasheet26.540-58.3713.33+10WR-28 WaveguideSMA (F)
SFP-283SF-U9Datasheet26.540+58.3713.33+20WR-28 WaveguideSMA (F)

備考

Remarks

・Balanced Mixers ・Passive Frequency Multipliers ・Quadrature Mixers
