Omnidirectional Antennas

全方向性アンテナは、360度の完全な方位角範囲を提供し、±1.0 dBの角度ゲイン平坦性を備えています。
以下の標準製品は、23〜110 GHzの周波数範囲をカバーしていますが、カスタム周波数を要求することもできます。
リストされたモデルは、導波管または同軸インターフェースでのみ提供されます。 ほとんどのモデルは、通常10˚および45˚の固定垂直ビーム幅を提供しますが、10〜60˚の垂直ビーム幅を持つカスタムモデルも、KからWバンドまでのすべての導波管バンドで利用できます。

Omnidirectional antennas are offered with either a coaxial or rectangular waveguide interface. Omnidirectional antennas provide a complete azimuth coverage of 360˚ with ±1.0 dB angular gain flatness. These omnidirectional antennas cover a bandwidth up to full waveguide bands with unnoticeable performance degradation towards the higher and lower ends of the frequency range. They are also constructed with precisely machined housings and a protective radome to ensure a rugged mechanical configuration. The below standard offering covers the frequency range of 23 to 110 GHz, but custom frequencies can be requested. The listed models are only offered with a waveguide or coaxial interface. While most models offer a fixed vertical beamwidth of 10˚ and 45˚ typical, custom models with a vertical beamwidth from 10 to 60˚ are also available for all waveguide bands from K to W band.


Product Specifications

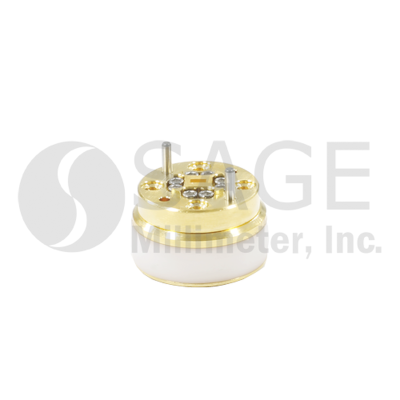

Model NumberData sheetMinimum FrequencyMaximum FrequencyGainAzimuth3 dB Beamwidth, VerticalReturn LossInput

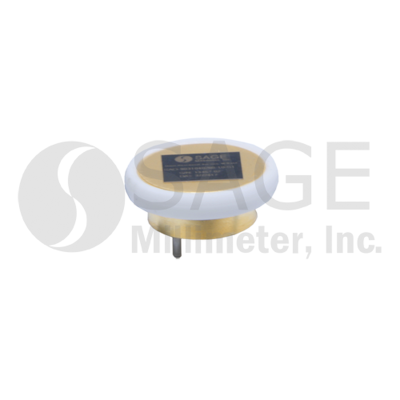

SAO-9031040060-10-S1Datasheet90 GHz100 GHz0 dBi360°60°9 dBWR-10 Waveguide
SAO-2734031845-KF-C1-BLDatasheet26.5 GHz40 GHz18 dBi360°45°10 dB2.92 mm (F)
SAO-2734031845-KF-R1-BLDatasheet26.5 GHz40 GHz18 dBi360°45°10 dBRight Angle 2.92 mm (F)
SAO-5037530230-15-S1Datasheet50 GHz75 GHz2 dBi360°30°10 dBWR-15 Waveguide
SAO-6039030230-12-S1Datasheet60 GHz90 GHz2 dBi360°30°9 dBWR-12 Waveguide
SAO-7138630230-12-S1Datasheet71 GHz76 GHz2 dBi360°30°9 dBWR-12 Waveguide
SAO-7531140230-10-S1Datasheet75 GHz110 GHz2 dBi360°30°8 dBWR-10 Waveguide

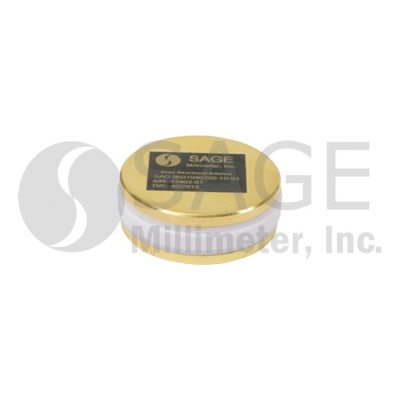

SAO-9031040230-10-S1Datasheet90 GHz100 GHz2 dBi360°30°9 dBWR-10 Waveguide
SAO-2734030345-KF-S1Datasheet26.5 GHz40 GHz3 dBi360°45°8 dB2.92 mm (F)
SAO-2734030345-KF-R1Datasheet26.5 GHz40 GHz3 dBi360°45°8 dBRight Angle 2.92 mm (F)
SAO-2734030345-28-S1Datasheet26.5 GHz40 GHz3 dBi360°45°10 dBWR-28 Waveguide
SAO-2734030345-28-S1-WRDatasheet26.5 GHz40 GHz3 dBi360°45°10 dBWR-28 Waveguide
SAO-2734033045-KF-C1-BLDatasheet26.5 GHz40 GHz30 dBi360°45°10 dB2.92 mm (F)
SAO-2734033045-KF-R1-BLDatasheet26.5 GHz40 GHz30 dBi360°45°10 dBRight Angle 2.92 mm (F)
SAO-4036030415-19-S1Datasheet40 GHz60 GHz4 dBi360°15°10 dBWR-19 Waveguide
SAO-2734030810-KF-S1Datasheet26.5 GHz40 GHz7.5 dBi360°10°9 dB2.92 mm (F)
SAO-2734030810-28-S1Datasheet26.5 GHz40 GHz7.5 dBi360°10°9 dBWR-28 Waveguide
