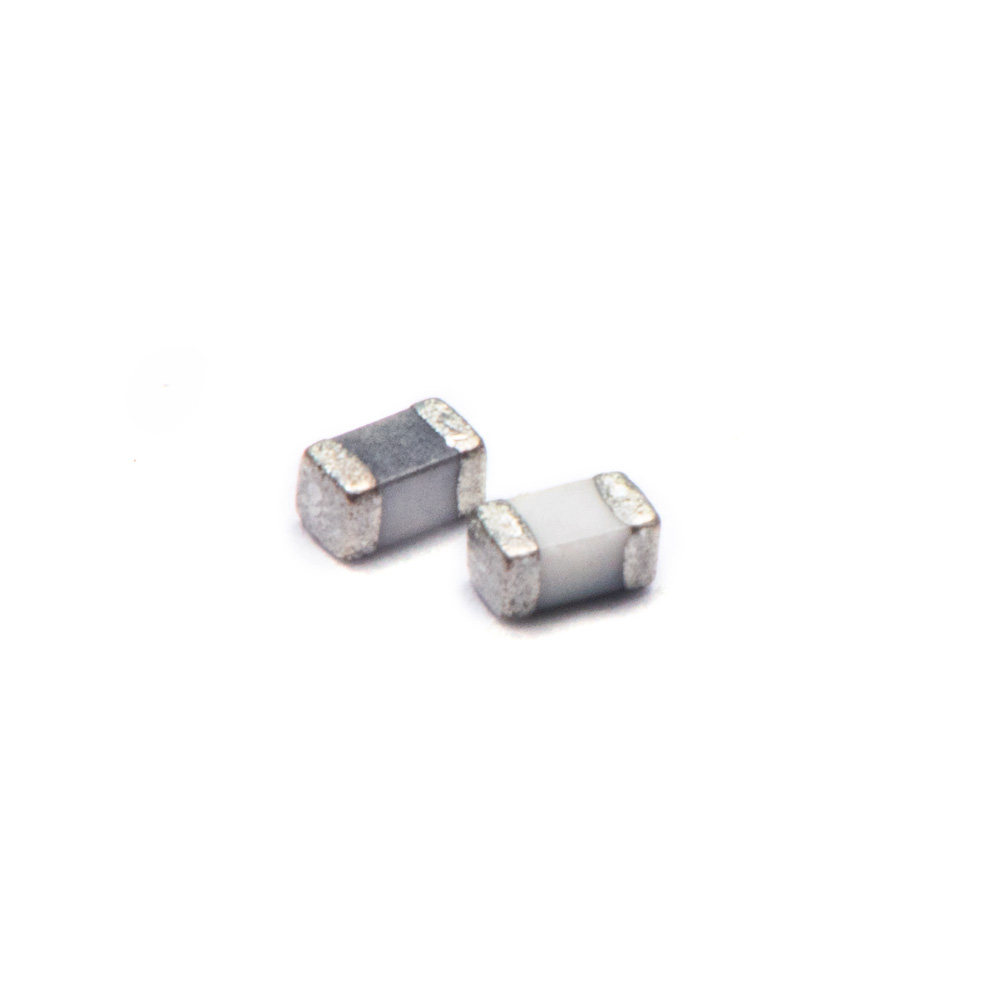

多層チップインダクタ〔Multilayer Chip Inductor〕MH

RF回路用途に適した高インダクタンス、高精度な公差、高いQや高い直列共振周波数をもつチップ・インダクタです。
チップ・ビーズは多層加工技術を採用し、良好なインピーダンス対周波数応答カーブを実現しています。
どの製品もコンパクトかつ高精度な形状のパッケージであり、高密度プリント基板アセンブリに適しています。
Chip inductor with high inductance, high precision tolerance, high Q, high SRF is suit to use in RF circuit.
Chip bead use multilayer processing technology offer good impedance-frequency response curve.
Both of them with compact & precision dimensions package is available for high density PCB assembly.

製品仕様

Product Specifications

Part no.L*W*T [mm]Inductance [µH]RDC [Ω]Specification
MH1005R10JL1*0.5*0.50.12Datasheet
MH10058N2JL1*0.5*0.50.00820.24Datasheet
MH100582NJL1*0.5*0.50.0821.6Datasheet
MH10056N8JL1*0.5*0.50.00680.24Datasheet
MH100568NJL1*0.5*0.50.0681.5Datasheet
MH10055N6DL1*0.5*0.50.00560.2Datasheet
MH100556NJL1*0.5*0.50.0561.3Datasheet
MH10054N7DL1*0.5*0.50.00470.18Datasheet
MH100547NJL1*0.5*0.50.0471.2Datasheet
MH10053N9DL1*0.5*0.50.00390.18Datasheet
MH10053N3DL1*0.5*0.50.00330.15Datasheet
MH100539NJL1*0.5*0.50.0391Datasheet
MH100533NJL1*0.5*0.50.0330.9Datasheet
MH10052N7DL1*0.5*0.50.00270.15Datasheet
MH10052N2DL1*0.5*0.50.00220.12Datasheet
MH100527NJL1*0.5*0.50.0270.8Datasheet
MH100522NJL1*0.5*0.50.0220.7Datasheet
MH10051N8DL1*0.5*0.50.00180.1Datasheet
MH10051N5DL1*0.5*0.50.00150.1Datasheet
MH10051N2DL1*0.5*0.50.00120.09Datasheet
MH10051N0DL1*0.5*0.50.0010.07Datasheet
MH100518NJL1*0.5*0.50.0180.55Datasheet
MH100515NJL1*0.5*0.50.0150.5Datasheet
MH100512NJL1*0.5*0.50.0120.4Datasheet
MH100510NJL1*0.5*0.50.010.26Datasheet
MH1608R22JL1.6*0.8*0.80.222Datasheet
MH1608R18JL1.6*0.8*0.80.181.9Datasheet
MH1608R15JL1.6*0.8*0.80.151.7Datasheet
MH1608R12JL1.6*0.8*0.80.121.3Datasheet
MH1608R10JL1.6*0.8*0.80.11.2Datasheet
MH16088N2JL1.6*0.8*0.80.00820.24Datasheet
MH160882NJL1.6*0.8*0.80.0821Datasheet
MH16086N8JL1.6*0.8*0.80.00680.22Datasheet
MH160868NJL1.6*0.8*0.80.0680.85Datasheet
MH160862NJL1.6*0.8*0.80.0620.85Datasheet
MH16085N6DL1.6*0.8*0.80.00560.18Datasheet
MH160856NJL1.6*0.8*0.80.0560.75Datasheet
MH16084N7DL1.6*0.8*0.80.00470.16Datasheet
MH160847NJL1.6*0.8*0.80.0470.7Datasheet
MH16083N9DL1.6*0.8*0.80.00390.14Datasheet
MH16083N3DL1.6*0.8*0.80.00330.12Datasheet
MH160839NJL1.6*0.8*0.80.0390.6Datasheet
MH160833NJL1.6*0.8*0.80.0330.55Datasheet
MH16082N7DL1.6*0.8*0.80.00270.1Datasheet
MH16082N2DL1.6*0.8*0.80.00220.1Datasheet
MH160827NJL1.6*0.8*0.80.0270.45Datasheet
MH160822NJL1.6*0.8*0.80.0220.4Datasheet
MH16081N8DL1.6*0.8*0.80.00180.1Datasheet
MH16081N5DL1.6*0.8*0.80.00150.1Datasheet
MH06039N1JS0.6*0.3*0.39.10.48Datasheet
MH06038N2JS0.6*0.3*0.38.20.45Datasheet
MH06037N5JS0.6*0.3*0.37.50.41Datasheet
MH06036N8JS0.6*0.3*0.36.80.39Datasheet
MH06036N2DS0.6*0.3*0.36.20.38Datasheet
MH06035N6DS0.6*0.3*0.35.60.36Datasheet
MH06035N1DS0.6*0.3*0.35.10.33Datasheet
MH06034N7DS0.6*0.3*0.34.70.3Datasheet
MH06034N3DS0.6*0.3*0.34.30.3Datasheet
MH06033N9DS0.6*0.3*0.33.90.27Datasheet
MH06033N6DS0.6*0.3*0.33.60.25Datasheet
MH06033N3DS0.6*0.3*0.33.30.23Datasheet
MH06033N0DS0.6*0.3*0.330.22Datasheet
MH06032N7DS0.6*0.3*0.32.70.21Datasheet
MH06032N4DS0.6*0.3*0.32.40.2Datasheet
MH06032N2DS0.6*0.3*0.32.20.19Datasheet
MH06032N1DS0.6*0.3*0.32.10.17Datasheet
MH06032N0DS0.6*0.3*0.320.17Datasheet
MH060327NJS0.6*0.3*0.3271.35Datasheet
MH060322NJS0.6*0.3*0.3221Datasheet
MH06031N8DS0.6*0.3*0.31.80.16Datasheet
MH06031N5DS0.6*0.3*0.31.50.13Datasheet
MH06031N2DS0.6*0.3*0.31.20.12Datasheet
MH06031N0DS0.6*0.3*0.310.11Datasheet

備考

Remarks

ABC台湾エレクトロニクス社は、チップインダクタ、非シールドパワーインダクタ、シールドパワーインダクタ、セミシールドパワーインダクタ、大電流パワーインダクタ、コモンモードラインフィルタなどの幅広いDIPおよびSMDインダクタを供給しています。
ABC supply wide range DIP & SMD inductor such as chip inductor, non-shielded power inductor, shielded power inductor, semi-shielded power inductor, high current power inductor & common mode line filter.
