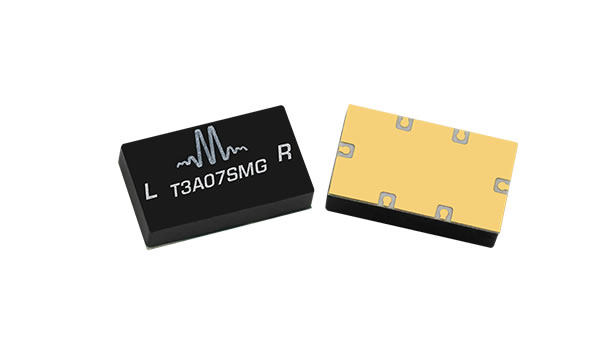

T3

メーカー名:Marki Microwave, Inc.
二つの信号を混合する混合器のことです。

ミキサには入力信号RF(Radio Frequency)と、ローカル信号LO(Local Oscillator)そして出力信号IF(Intermediate Frequency)の三つがあります。

製品仕様

Product Specifications

ModelData sheetRF/LO [GHz] LowRF/LO [GHz] HighIF [GHz] LowIF [GHz] HighLO Drive [dBm] LowLO Drive [dBm] HighConversion Loss [dB]Isolations L-R [dB]IIP3 [dBm]
MT3-0113LCQGDatasheet1.5130.01711247.54024
MT3-0113HCQGDatasheet1.5130.01716247.54030
MT3-0113SCQGDatasheet1.5130.01722308.54036
MT3L-0113HDatasheet1.5130.25515258.54331
MT3L-0113HSMDatasheet1.5130.25515258.53931
MT3H-0113LDatasheet1.5130.88.571584320
MT3H-0113LSMDatasheet1.5130.88.571584222
MT3H-0113HDatasheet1.5130.88.516248.53728
MT3H-0113HSMDatasheet1.5130.88.5162483729
T3-07Datasheet0.00170.001415276.52432
T3-0838Datasheet8380.0110132582825
T3-1040Datasheet1040118132582825
T3-12Datasheet0.01120.001415277.52430
T3-18Datasheet0.01180.0011015277.52530
T3-20Datasheet0.01200.0011015277.52430
T3A-07PADatasheet0.0170.001410156.5-27
T3H-18Datasheet0.01180.011815278.53030
T3H-20Datasheet0.01200.011815278.53030

備考

Remarks
