MMIC/Microlithic Bare Die/Modules

メーカー名:Marki Microwave, Inc.
二つの信号を混合する混合器のことです。

ミキサには入力信号RF(Radio Frequency)と、ローカル信号LO(Local Oscillator)そして出力信号IF(Intermediate Frequency)の三つがあります。

製品仕様

Product Specifications

ModelData sheetRF/LO [GHz]
Low
RF/LO [GHz]
High
IF [GHz]
Low
IF [GHz]
High
LO Drive [dBm]
Low
LO Drive [dBm]
High
Conversion Loss [dB]Isolations L-R [dB]IIP3 [dBm]
MM1-0212LDatasheet212DC311584712.5
MM1-0212HDatasheet212DC313178.54723
MM1-0212SDatasheet212DC317238.54726
MM1-0222LDatasheet222DC3.57158.55111.5
MM1-0222HDatasheet222DC3.511208.55120
MM1-0312HDatasheet312DC4.513207.55219
MM1-0312SDatasheet312DC4.518237.55224
MM1-0320LDatasheet320DC45985410
MM1-0320HDatasheet3.520DC4122085220
MM1-0424SDatasheet4.524DC4172384925

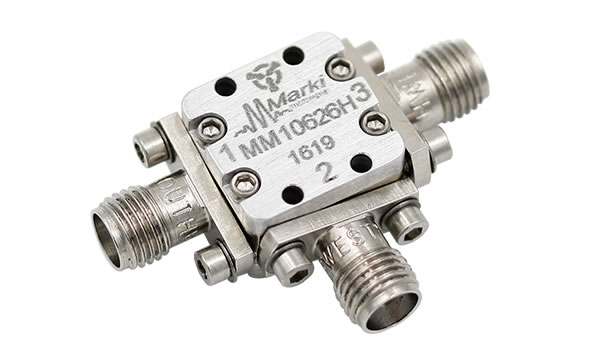

MM1-0626HDatasheet626.5DC913207.55321
MM1-0626SDatasheet626.5DC9172385325
MM1-0832LDatasheet83201271584613.5
MM1-0832HDatasheet83201211207.65022.8
MM1-1044LDatasheet1044DC147157.64712.5
MM1-1044HDatasheet1044DC1411207.64722
MM1-1140HDatasheet1140DC12122084721
MM1-1240SDatasheet1240DC12182384325
MM1-1467LDatasheet1467DC2191375312
MM1-1467HDatasheet1467DC21112075317.5
MM1-1850HDatasheet1850DC20122084321
MM1-1850SDatasheet1850DC2017238.54325
MM1-1857LDatasheet1857DC2171583513
MM1-1857HDatasheet1857DC2113217.54520
MM1-2567LDatasheet2567DC306169339
MM2-0530LDatasheet530220917104419
MM2-0530HDatasheet530220142094028
MT3L-0113HDatasheet1.5130.25515258.54331
MT3H-0113LDatasheet1.5130.88.571584320
MT3H-0113HDatasheet1.5130.88.516248.53728

備考

Remarks
