Microlithic and MMIC Surface Mount

メーカー名:Marki Microwave, Inc.
二つの信号を混合する混合器のことです。

ミキサには入力信号RF(Radio Frequency)と、ローカル信号LO(Local Oscillator)そして出力信号IF(Intermediate Frequency)の三つがあります。

製品仕様

Product Specifications

ModelData sheetRF/LO [GHz]
Low
RF/LO [GHz]
High
IF [GHz]
Low
IF [GHz]
High
LO Drive [dBm]
Low
LO Drive [dBm]
High
Conversion Loss [dB]Isolations L-R [dB]IIP3 [dBm]
ML1-0110SMDatasheet1.510DC282073821
MM1-0212LSMDatasheet212031158.55713
MM1-0212HSMDatasheet2120313178.55725
MM1-0212SSMDatasheet21203172395228
MM1-0222HSMDatasheet22203.512207.55020
MM1-0312HSMDatasheet312DC4.5122074919
MM1-0312SSMDatasheet312DC4.5172374924
MM1-0320HSMDatasheet3.520DC4122084920
MM1-0424SSMDatasheet4.524DC4172384825
MM1-0626HSMDatasheet626.5DC913207.54521
MM1-0626SSMDatasheet626.5DC9172384524.5
MM1-0726HSMDatasheet726.5DC915237.52717
MM1-0832LSMDatasheet832DC128158.53611
MM1-0832HSMDatasheet832DC12162383620.5
MM1-1130HSMDatasheet1130DC12122074021
MM1-1850HSMDatasheet1850DC2112228.73917
MM1-1850SSMDatasheet1850DC2120289.72828
MM1-2567LSMDatasheet2567030101611409
MM2-0530LSMDatasheet530220917104419
MM2-0530HSMDatasheet530220162294028

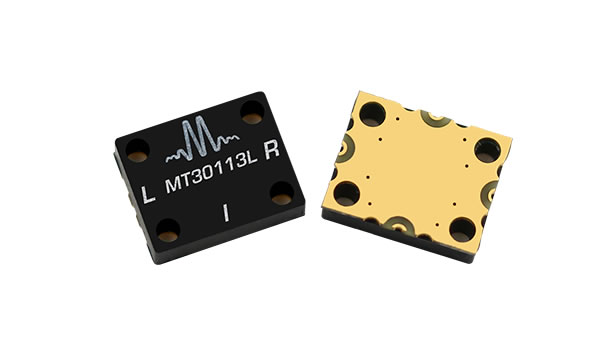

MT3-0113LCQGDatasheet1.5130.01711247.54024
MT3-0113HCQGDatasheet1.5130.01716247.54030
MT3-0113SCQGDatasheet1.5130.01722308.54036
MT3L-0113HSMDatasheet1.5130.25515258.53931
MT3H-0113LSMDatasheet1.5130.88.571584222
MT3H-0113HSMDatasheet1.5130.88.5162483729

備考

Remarks
