IQ/IR/SSB

メーカー名:Marki Microwave, Inc.
二つの信号を混合する混合器のことです。

ミキサには入力信号RF(Radio Frequency)と、ローカル信号LO(Local Oscillator)そして出力信号IF(Intermediate Frequency)の三つがあります。

製品仕様

Product Specifications

ModelData sheetIF [MHz]RF/LO [GHz]ConversionLoss [dB]Isolations L-R [dB]Isolations L-I [dB]
IQ-0307DatasheetDC to 5003 to 75.53020
IQ-0618DatasheetDC to 5006 to 187.53520
IQ-1545DatasheetDC to 5001.5 to 4.55.54330
IQ-4509DatasheetDC to 5004.5 to 95.53020
IQB-0618DatasheetDC to 50006 to 18122020
IR-4509Datasheet50 to 904.5 to 95.53025
IRW-0618Datasheet4 to 2106 to 187.53525
MLIQ-0218DatasheetDC to 35002 to 188.54525
MLIQ-0218SMDatasheetDC to 35002 to 188.54525
MMIQ-0205HSMDatasheetDC to 20001.75 to 586146
MMIQ-0205SSMDatasheetDC to 20001.75 to 58.55647
MMIQ-0218HDatasheetDC to 30002 to 187.55326
MMIQ-0218LDatasheetDC to 30002 to 1885828
MMIQ-0218LSMDatasheetDC to 35002 to 1885828
MMIQ-0416HSM-2DatasheetDC to 60004 to 168.55139
MMIQ-0520LDatasheetDC to 60005 to 2094649
MMIQ-0520LSMDatasheetDC to 60005 to 2094649
MMIQ-0520HDatasheetDC to 60005 to 2094649
MMIQ-0626LDatasheetDC to 60006 to 2694150
MMIQ-0626LSMDatasheetDC to 60006 to 2693948
MMIQ-0626HDatasheetDC to 60006 to 2694150
MMIQ-1040SDatasheetDC to 1200010 to 4094449
MMIQ-1040LDatasheetDC to 1200010 to 4094748
MMIQ-1037HDatasheetDC to 1200010 to 3794748
MMIQ-1865HCH-2DatasheetDC to 2300018 to 6594842
MMIQ-1865LCH-2DatasheetDC to 2300018 to 6594944
MMIQ-1865SDatasheetDC to 2300018 to 6595045
MMIQ-4067LDatasheetDC to 2000040 to 6793340

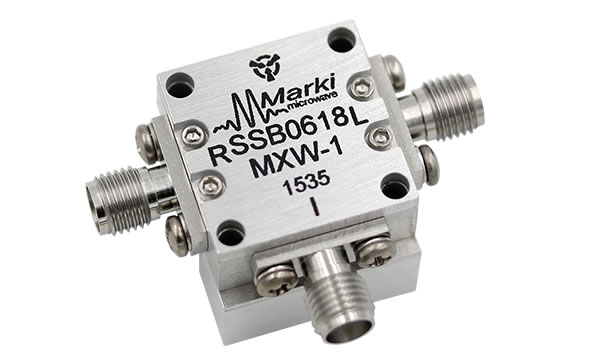

SSB-0618Datasheet4 to 2106 to 187.53525

備考

Remarks
