Mechanically-Tuned Gunn Oscillators

メーカー名:Eravant

製品仕様

Product Specifications

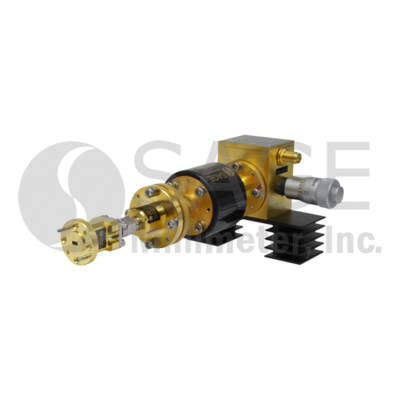

modelData sheetCenter Frequency []Output Power [dBm]Mechanical Tuning Range []Bias Tuning Range (+4.5 to + 5.5 VDC) [MHz]Bias [ VDC/mA]RF PortMechanical Tuning
SOM-11305210-90-S1Datasheet10.525+12±250-+8.5 / 100WR-28 WaveguideSelf-Locking Set Screw

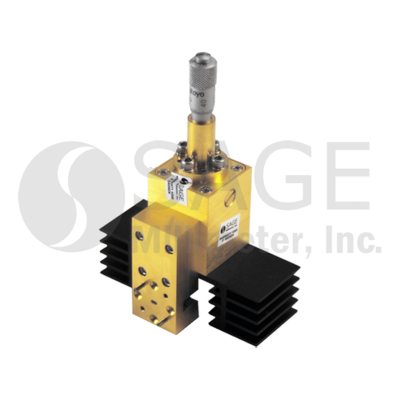

SOM-10420303-10-M1Datasheet100+3±10 GHz-+5.0 / 850WR-10 WaveguideMicrometer
SOM-29304320-28-M1Datasheet29+20±2 GHz±100+4.5 / 850WR-28 WaveguideSelf-Locking Set Screw
SOM-30302313-28-S1Datasheet30+13±1000±100+5.0 / 350WR-28 WaveguideSelf-Locking Set Screw
SOM-30302320-28-S1Datasheet30+20±1000±100+4.5 / 850WR-28 WaveguideSelf-Locking Set Screw
SOM-35304313-28-S1Datasheet35+13±2000±100+4.5 / 250WR-28 WaveguideSelf-Locking Set Screw
SOM-35304320-28-S1Datasheet35+20±2000±100+4.5 / 850WR-28 WaveguideSelf-Locking Set Screw
SOM-38310320-22-MIDatasheet38+20±5000-+4.2 / 880WR-22 WaveguideMicrometer
SOM-42301318-22-S1Datasheet42+18±500-+4.5 / 650WR-22 WaveguideSelf-Locking Set Screw
SOM-46304316-22-S1Datasheet46+16±2 GHz-+3.5 / 800WR-22 WaveguideSelf-Locking Set Screw
SOM-48304320-22-MIDatasheet48+20±2000-+5.0 / 880WR-22 WaveguideMicrometer

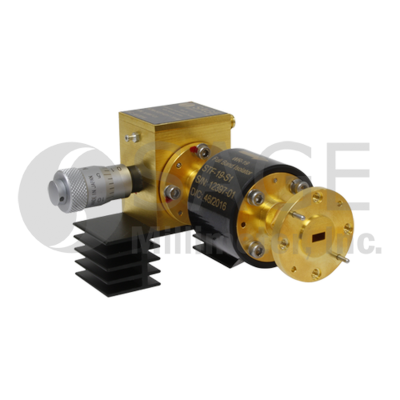

SOM-50314317-19-MIDatasheet50+17±6000-+4.2 / 700WR-19 WaveguideMicrometer
SOM-50314320-19-MIDatasheet50+20±6000-+4.2 / 1000WR-19 WaveguideMicrometer
SOM-51302315-19-MIDatasheet51+16±1000-+4.2 / 700WR-19 WaveguideMicrometer
SOM-60301317-15-S1Datasheet60+17±500±100+5.0 / 750WR-15 WaveguideSelf-Locking Set Screw
SOM-60302316-15-S1Datasheet60+16±1000-+5.5 / 650WR-15 WaveguideSelf-Locking Set Screw
SOM-63301313-12-S1Datasheet63+13±500±100+5.0 / 350WR-12 WaveguideSelf-Locking Set Screw
SOM-65302317-15-S1Datasheet65+17±1000±100+5.0 / 750WR-15 WaveguideSelf-Locking Set Screw
SOM-70302317-15-S1Datasheet70+17±1000±100+5.5 / 750WR-15 WaveguideSelf-Locking Set Screw
SOM-73303310-12-M1Datasheet73+10±1500-+4.5 / 350WR-12 WaveguideMicrometer
SOM-75301317-12-S1Datasheet75+17±500±100+5.5 / 850WR-12 WaveguideSelf-Locking Set Screw
SOM-75302317-12-S1Datasheet75+17±1000±100+5.0 / 850WR-12 WaveguideSelf-Locking Set Screw
SOM-75320305-12-MIDatasheet75+5±10000-+5.0 / 900WR-12 WaveguideMicrometer
SOM-77302315-12-M1Datasheet76.5+15±1000-+5.5 / 750WR-12 WaveguideMicrometer
SOM-77304313-10-M1Datasheet76.5+15±2000-+4.5 / 750WR-10 WaveguideMicrometer
SOM-76302317-12-S1Datasheet76+17±1.0 GHz-+5.5 / 750WR-12 WaveguideSelf-Locking Set Screw
SOM-78301313-12-S1Datasheet78+13±500±100+5.5 / 350WR-12 WaveguideSelf-Locking Set Screw
SOM-78301317-12-S1Datasheet78+17±500±100+5.5 / 650WR-12 WaveguideSelf-Locking Set Screw
SOM-79302313-10-M1Datasheet79+13±1000-+4.5 / 350WR-10 WaveguideMicrometer

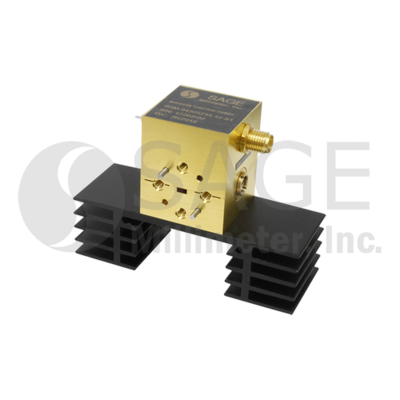

SOM-84305213-12-S1Datasheet84+13±250±100+5.0 / 350WR-12 WaveguideSelf-Locking Set Screw
SOM-90305213-10-S1Datasheet90+13±250-+5.0 / 350WR-10 WaveguideSelf-Locking Set Screw
SOM-90301316-10-S1Datasheet90+16±0.5 GHz-+4.5 / 850WR-10 WaveguideSelf-Locking Set Screw
SOM-94302315-10-M1Datasheet94+15± 1 GHz-+4.5 / 750WR-10 WaveguideMicrometer
SOM-94302315-10-S1Datasheet94+15±1 GHz-+5.0 / 650WR-10 WaveguideSelf-Locking Set Screw
SOM-94302317-10-S1Datasheet94+17±1 GHz-+4.5 / 850WR-10 WaveguideSelf-Locking Set Screw
SOM-94304316-10-S1-HDatasheet94+16±2.0 GHz--WR-10 WaveguideSelf-Locking Set Screw
SOM-94304316-10-S1Datasheet94+16±2000-+4.5 / 850WR-10 WaveguideSelf-Locking Set Screw
SOM-95301315-10-S1Datasheet95+15±0.5 GHz-+4.5 / 850WR-10 WaveguideSelf-Locking Set Screw
SOM-96301315-10-S1Datasheet96+15±0.5 GHz-+4.5 / 850WR-10 WaveguideSelf-Locking Set Screw
