Magic Tees

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Isolation, Sum and Difference Ports [dB]Isolation, Collinear Ports [dB]Magic Tee TypeSum and Difference PortsCollinear Ports
SWM-18327320-42-SBDatasheet1826.50.153020Split-BlockWR-42 WGWR-42 WG
SWM-22333320-34-SBDatasheet22330.33020Split-BlockWR-34 WGWR-34 WG
SWM-27340320-28-SBDatasheet26.5400.253020Split-BlockWR-28 WGWR-28 WG
SWM-33350320-22-SBDatasheet33500.33020Split-BlockWR-22 WGWR-22 WG
SWM-40360320-19-SBDatasheet40600.33020Split-BlockWR-19 WGWR-19 WG
SWM-50370320-15-SBDatasheet50700.33020Split-BlockWR-15 WGWR-15 WG
SWM-50375320-15-SBDatasheet50750.33020Split-BlockWR-15 WGWR-15 WG
SWM-60390320-12-SBDatasheet60900.353020Split-BlockWR-12 WGWR-12 WG

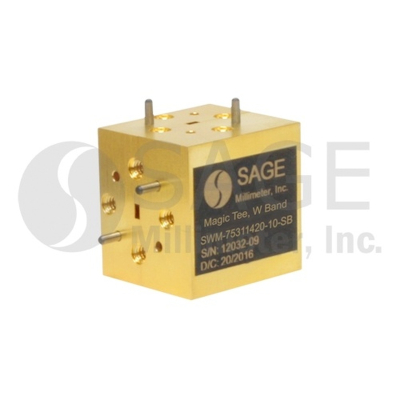

SWM-75311420-10-SBDatasheet751100.33020Split-BlockWR-10 WGWR-10 WG

備考

Remarks
