Linear to Circular Polarizers

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetCenter FrequencyBandwidthInsertion LossAxial RatioReturn LossInput/Output
SAS-153-58462-F1Datasheet15.2 GHz±2.8 GHz0.5 dB1.215 dB0.584" Diameter Circular Waveguide
SAS-124-07506-F1Datasheet121 GHz±7 GHz1.0 dB1.120 dB0.075" Diameter Circular Waveguide

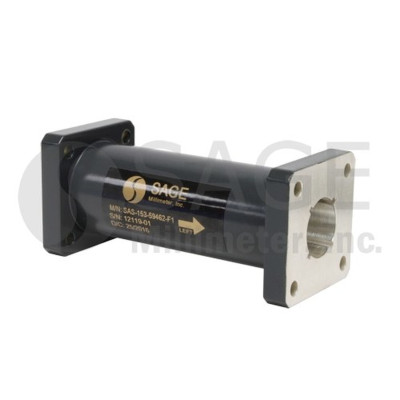

SAS-153-59462-F1Datasheet15 GHz±1.0 GHz0.5 dB1.120 dB0.594" Diameter Circular Waveguide
SAS-144-07506-F1Datasheet144 GHz±6 GHz1.0 dB1.120 dB0.075" Diameter Circular Waveguide
SAS-203-47042-F1Datasheet--0.5 dB1.117 dB0.470" Diameter Circular Waveguide
SAS-223-39642-F1Datasheet--0.5 dB1.117 dB0.396" Diameter Circular Waveguide
SAS-213-36842-F1Datasheet21 GHz±1 GHz0.5 dB1.120 dB0.368" Diameter Circular Waveguide
SAS-223-43642-F1Datasheet22 GHz±1.0 GHz0.5 dB1.120 dB0.436" Diameter Circular Waveguide
SAS-233-39642-F1Datasheet22.5 GHz± 2.5 GHz0.5 dB1.120 dB0.396" Diameter Circular Waveguide
SAS-243-36842-F1Datasheet24 GHz±1.0 GHz0.5 dB1.120 dB0.368" Diameter Circular Waveguide
SAS-243-39642-F1Datasheet24 GHz±1.0 GHz0.5 dB1.120 dB0.396" Diameter Circular Waveguide
SAS-293-31528-F1Datasheet29.5 GHz±3.5 GHz0.3 dB1.120 dB0.315" Diameter Circular Waveguide
SAS-293-32834-F1Datasheet29.5 GHz±3.5 GHz0.3 dB1.120 dB0.328" Diameter Circular Waveguide
SAS-353-25028-F1Datasheet35 GHz±2.6 GHz0.3 dB1.120 dB0.250" Diameter Circular Waveguide
SAS-353-25028-F1-1.0Datasheet32.4 GHz±2.6 GHz0.3 dB1.120 dB0.250" Diameter Circular Waveguide
SAS-403-21922-F1Datasheet36 GHz±1 GHz0.5 dB1.120 dB0.219" Diameter Circular Waveguide
SAS-443-18819-F1Datasheet44 GHz±3.3 GHz0.5 dB1.120 dB0.188" Diameter Circular Waveguide
SAS-603-14115-F1Datasheet60 GHz±2.5 GHz0.5 dB1.120 dB0.141" Diameter Circular Waveguide
SAS-773-12512-F1Datasheet77 GHz±6 GHz0.5 dB1.120 dB0.125" Diameter Circular Waveguide
SAS-793-11012-F1Datasheet78.5 GHz±7.5 GHz0.5 dB1.120 dB0.110" Diameter Circular Waveguide
SAS-943-09410-F1Datasheet94 GHz±2 GHz0.7 dB1.120 dB0.094" Diameter Circular Waveguide

備考

Remarks
