Level Setting Attenuators

メーカー名: Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Attenuation [dB]Return LossPower Handling [W]RF PortAttenuator Type

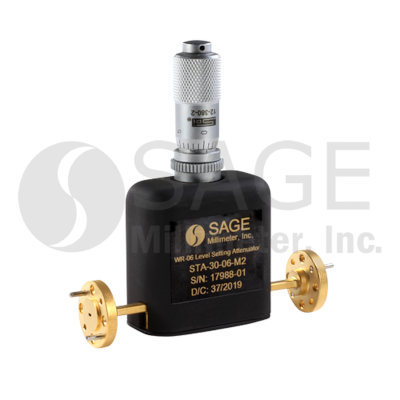

STA-30-06-M2Datasheet1101700 to 3016 dB0.3WR-06 WaveguideLevel Setting
STA-30-08-M2Datasheet901400 to 3016 dB0.3WR-08 WaveguideLevel Setting
STA-30-10-M2Datasheet751100 to 3021 dB0.3WR-10 WaveguideLevel Setting
STA-30-12-M2Datasheet60900 to 3021 dB0.5WR-12 WaveguideLevel Setting
STA-30-15-M2Datasheet50750 to 3021 dB0.5WR-15 WaveguideLevel Setting
STA-30-19-M2Datasheet40600 to 3021 dB0.5WR-19 WaveguideLevel Setting
STA-30-22-M2Datasheet33500 to 3021 dB0.75WR-22 WaveguideLevel Setting
STA-30-34-M2Datasheet22330 to 3021 dB Max1WR-34 WaveguideLevel Setting

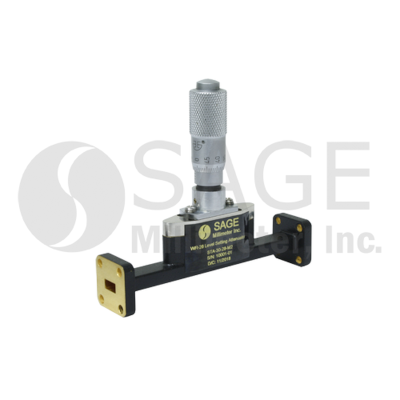

STA-30-28-M2Datasheet26.5400 to 351.2:11WR-28 WaveguideLevel Setting
STA-30-42-M2Datasheet1826.50 to 351.2:10.1WR-42 WaveguideLevel Setting

備考

Remarks
