In Series Coaxial Adapters

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossReturn LossImpedanceConnector 1Connector 2
SCT-1F1F-UBDatasheetDC110 GHz0.6 dB16 dB50 Ohms1.0 mm Female1.0 mm Female
SCT-1F1F-U7DatasheetDC110 GHz0.6 dB16 dB50 Ohms1.0 mm Female1.0 mm Female
SCT-1F1M-UBDatasheetDC110 GHz0.6 dB16 dB50 Ohms1.0 mm Female1.0 mm Male
SCT-1F1M-U7DatasheetDC110 GHz0.6 dB16 dB50 Ohms1.0 mm Female1.0 mm Male
SCT-1M1M-UBDatasheetDC110 GHz0.6 dB16 dB50 Ohms1.0 mm Male1.0 mm Male
SCT-1M1M-U7DatasheetDC110 GHz0.6 dB16 dB50 Ohms1.0 mm Male1.0 mm Male
SCT-SFSF-UBDatasheetDC26.5 GHz0.3 dB20 dB50 OhmsSMA FemaleSMA Female
SCT-SFSM-UBDatasheetDC26.5 GHz0.3 dB20 dB50 OhmsSMA FemaleSMA Male
SCT-SMSM-UBDatasheetDC26.5 GHz0.3 dB20 dB50 OhmsSMA MaleSMA Male
SCT-3F3F-UBDatasheetDC33 GHz0.5 dB21 dB50 Ohms3.5 mm Female3.5 mm Female
SCT-3F3M-UBDatasheetDC33 GHz0.5 dB21 dB50 Ohms3.5 mm Female3.5 mm Male
SCT-3M3M-UBDatasheetDC33 GHz0.5 dB21 dB50 Ohms3.5 mm Male3.5 mm Male
SCT-KFKF-UBDatasheetDC40 GHz0.6 dB21 dB50 Ohms2.92 mm Female2.92 mm Female
SCT-KFKM-UBDatasheetDC40 GHz0.6 dB21 dB50 Ohms2.92 mm Female2.92 mm Male
SCT-KMKM-UBDatasheetDC40 GHz0.6 dB21 dB50 Ohms2.92 mm Male2.92 mm Male
SCT-2F2F-UBDatasheetDC50 GHz0.4 dB21 dB50 Ohms2.4 mm Female2.4 mm Female
SCT-2F2M-UBDatasheetDC50 GHz0.3 dB21 dB50 Ohms2.4 mm Female2.4 mm Male
SCT-2M2M-UBDatasheetDC50 GHz0.3 dB21 dB50 Ohms2.4 mm Male2.4 mm Male
SCT-VFVM-U2DatasheetDC65 GHz-17 dB50 Ohms1.85 mm Female1.85 mm Male
SCT-VFVF-UBDatasheetDC67 GHz0.6 dB19 dB50 Ohms1.85 mm Female1.85 mm Female
SCT-VFVM-UBDatasheetDC67 GHz0.5 dB19 dB50 Ohms1.85 mm Female1.85 mm Male
SCT-VMVM-UBDatasheetDC67 GHz0.5 dB19 dB50 Ohms1.85 mm Male1.85 mm Male
SCT-EFEF-UBDatasheetDC90 GHz0.7 dB14 dB50 Ohms1.35 mm Female1.35 mm Female

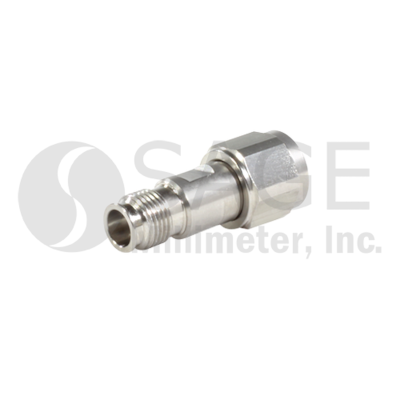

SCT-EFEM-UBDatasheetDC90 GHz0.7 dB14 dB50 Ohms1.35 mm Female1.35 mm Male
SCT-EMEM-UBDatasheetDC90 GHz0.7 dB14 dB50 Ohms1.35 mm Male1.35 mm Male

備考

Remarks
