High Power Fixed Waveguide Termination Loads

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyPower Handling, WattsPower Handling, dBmVSWRLoad TypeWaveguide Port

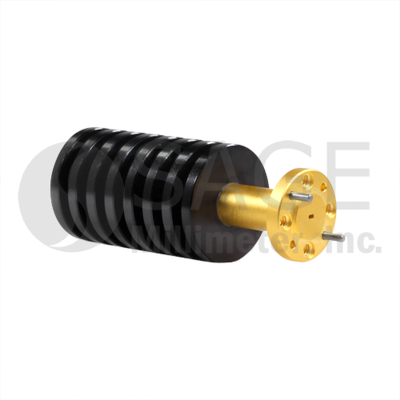

SWL-0637-S1Datasheet110 GHz170 GHz5.0 W37 dBm1.1FixedWR-06 Waveguide
SWL-5157-S6Datasheet15 GHz22 GHz500 W--FixedWR-51 Waveguide

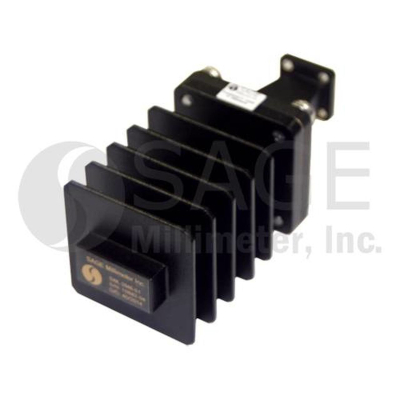

SWL-2846-S1Datasheet26.5 GHz40 GHz28 W44 dBm1.04FixedWR-28 Waveguide

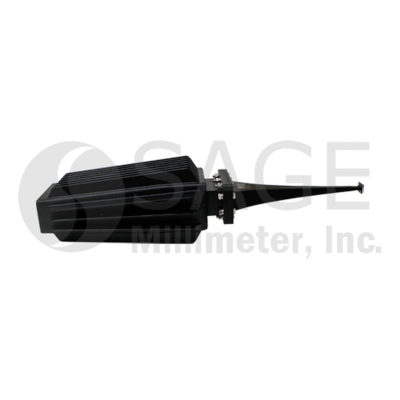

SWL-2860-S1Datasheet26.5 GHz40 GHz900 W60 dBm-FixedWR-28 Waveguide

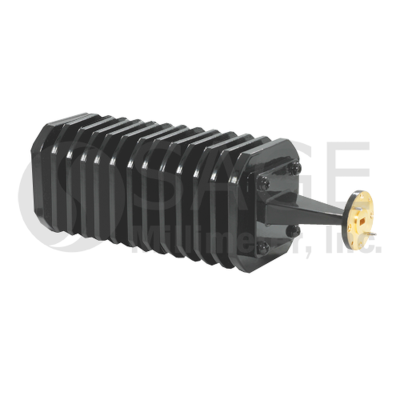

SWL-2253-S1Datasheet33 GHz50 GHz200 W--FixedWR-22 Waveguide
SWL-2246-S1Datasheet33 GHz50 GHz40 W--FixedWR-22 Waveguide
SWL-2237-S1Datasheet33 GHz50 GHz5.0 W37 dBm-FixedWR-22 Waveguide
SWL-1937-S1Datasheet40 GHz60 GHz5.0 W37 dBm1.06FixedWR-19 Waveguide
SWL-1537-S1Datasheet50 GHz75 GHz5.0 W37 dBm1.06FixedWR-15 Waveguide
SWL-1237-S1Datasheet60 GHz90 GHz5.0 W37 dBm1.06FixedWR-12 Waveguide
SWL-1037-S1Datasheet75 GHz110 GHz5.0 W37 dBm1.06FixedWR-10 Waveguide
SWL-9060-S6Datasheet8.2 GHz12.4 GHz1100 W--FixedWR-90 Waveguide
SWL-0837-S1Datasheet90 GHz140 GHz5.0 W37 dBm1.1FixedWR-08 Waveguide
