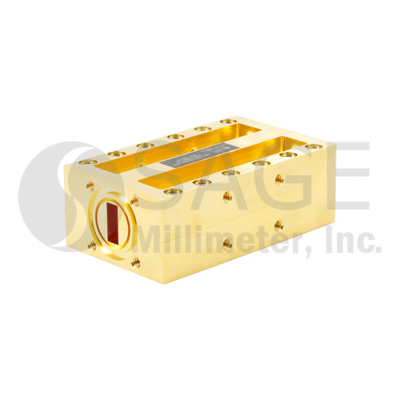

High Power Fixed Attenuators

メーカー名: Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]AttenuationReturn LossPower Handling [W]RF PortAttenuator Type
STA-03-10-FS-40Datasheet751103 dB @ 92.5 GHz21 dB10WR-10 WaveguideFixed
STA-06-10-FS-40Datasheet751106 dB @ 92.5 GHz1.2:110WR-10 WaveguideFixed
STA-10-10-FS-40Datasheet7511010 dB @ 92.5 GHz21 dB10WR-10 WaveguideFixed
STA-20-10-FS-40Datasheet7511020 dB @ 92.5 GHz21 dB10WR-10 WaveguideFixed
STA-30-10-FS-40Datasheet7511030 dB @ 92.5 GHz21 dB10WR-10 WaveguideFixed
STA-40-10-FS-40Datasheet7511040 dB @ 92.5 GHz21 dB10WR-10 WaveguideFixed
STA-50-10-FS-40Datasheet7511050 dB @ 92.5 GHz21 dB10WR-10 WaveguideFixed
STA-03-12-FS-40Datasheet60903 dB @ 75 GHz1.2:110WR-12 WaveguideFixed
STA-06-12-FS-40Datasheet60906 dB @ 75 GHz1.2:110WR-12 WaveguideFixed
STA-10-12-FS-40Datasheet609010 dB @ 75 GHz1.2:110WR-12 WaveguideFixed
STA-20-12-FS-40Datasheet609020 dB @ 75 GHz1.2:110WR-12 WaveguideFixed
STA-30-12-FS-40Datasheet609030 dB @ 75 GHz1.2:110WR-12 WaveguideFixed
STA-40-12-FS-40Datasheet609040 dB @ 75 GHz21 dB10WR-12 WaveguideFixed
STA-50-12-FS-40Datasheet609050 dB @ 75 GHz1.2:110WR-12 WaveguideFixed
STA-03-15-FS-40Datasheet50753 dB @ 62.5 GHz1.2:110WR-15 WaveguideFixed
STA-06-15-FS-40Datasheet50756 dB @ 62.5 GHz1.2:110WR-15 WaveguideFixed
STA-10-15-FS-40Datasheet507510 dB @ 62.5 GHz1.2:110WR-15 WaveguideFixed
STA-20-15-FS-40Datasheet507520 dB @ 62.5 GHz1.2:110WR-15 WaveguideFixed
STA-30-15-FS-40Datasheet507530 dB @ 62.5 GHz1.2:110WR-15 WaveguideFixed
STA-40-15-FS-40Datasheet507540 dB @ 62.5 GHz1.2:110WR-15 WaveguideFixed
STA-50-15-FS-40Datasheet507550 dB @ 62.5 GHz1.2:110WR-15 WaveguideFixed
STA-03-19-FS-40Datasheet40603 dB14 dB10WR-19 WaveguideFixed
STA-06-19-FS-40Datasheet40606 dB14 dB10WR-19 WaveguideFixed
STA-10-19-FS-40Datasheet406010 dB14 dB10WR-19 WaveguideFixed
STA-20-19-FS-40Datasheet406020 dB14 dB10WR-19 WaveguideFixed
STA-30-19-FS-40Datasheet406030 dB14 dB10WR-19 WaveguideFixed
STA-40-19-FS-40Datasheet406040 dB14 dB10WR-19 WaveguideFixed
STA-50-19-FS-40Datasheet406050 dB14 dB10WR-19 WaveguideFixed
STA-03-22-FS-40Datasheet33503 dB @ 41.5 GHz1.5:110WR-22 WaveguideFixed
STA-06-22-FS-40Datasheet33506 dB @ 41.5 GHz1.5:110WR-22 WaveguideFixed
STA-10-22-FS-40Datasheet335010 dB @ 41.5 GHz1.5:110WR-22 WaveguideFixed
STA-20-22-FS-40Datasheet335020 dB @ 41.5 GHz1.5:110WR-22 WaveguideFixed
STA-20-222M2F-F1-43Datasheet335020 dB14 dB202.4 mm (F) and (M)Fixed
STA-30-22-FS-40Datasheet335030 dB @ 41.5 GHz1.5:110WR-22 WaveguideFixed
STA-40-22-FS-40Datasheet335040 dB @ 41.5 GHz1.5:110WR-22 WaveguideFixed
STA-50-22-FS-40Datasheet335050 dB @ 41.5 GHz1.5:110WR-22 WaveguideFixed
STA-04-42-F1-H-2Datasheet1826.54 dB14 dB35WR-42 Waveguide with Compatible Choke FlangeFixed
