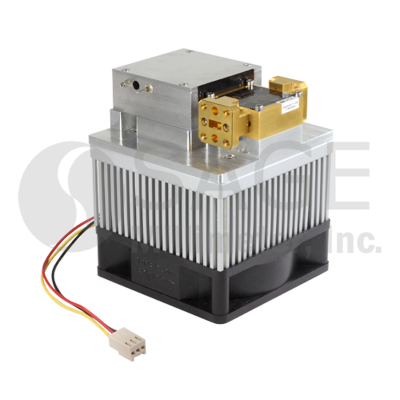

High Power Amplifiers with Heatsink

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Gain [dB]P1dB [dBm]Psat [dBm]Input Return Loss [dB]Output Return Loss [dB]DC Bias [VDC/mA]RF Input/Output
SBP-8138632833-1212-E1Datasheet818628+33+341010+8/9WR-12 Waveguide
SBP-6737633534-1212-E1Datasheet677635+34+351010+8/7WR-12 Waveguide
SBP-3834034032-2828-E1-HRDatasheet384040+32+341010+8/4WR-28 Uni-Guide™ Waveguide
SBP-2434132530-2828-E1-HRDatasheet244125+30+321010+8/4WR-28 Uni-Guide™ Waveguide
SBP-2734132530-2828-E1-HRDatasheet26.54125+30+321010+8/4WR-28 Uni-Guide™ Waveguide
SBP-2734132530-28KF-E1-HRDatasheet26.54125+30+321010+8/4WR-28 Uni-Guide™ Waveguide/K(F)
SBP-2734132530-KFKF-E1-HRDatasheet26.54125+30+331010+8/3K(F)
SBP-2734033530-2828-E1-HRDatasheet26.54035+30+311010+8/4WR-28 Uni-Guide™ Waveguide
SBP-2734033530-KFKF-S1-HRDatasheet26.54035+30+321010+8/4.0K(F)
SBP-3834034032-2828-C1Datasheet384040+32+331010+8/4WR-28 Waveguide
SBP-3133834034-2828-E1-HRDatasheet313840+34+351010+8/4WR-28 Uni-Guide™ Waveguide
SBP-3133834034-2828-C1-2Datasheet313840+34+351010+8/4WR-28 Waveguide
SBP-3133834034-KFKF-C1-2Datasheet313840+34+351010+8/4K(F)

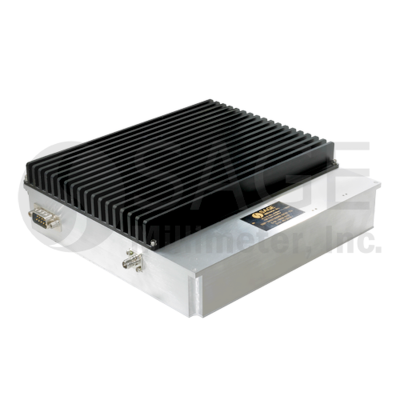

SBP-3433735038-KFKF-E3Datasheet343750+38+401010+12/0.01K(F)
SBP-3533735536-KFKF-E3Datasheet34.536.555+36+371010+12/7K(F)
SBP-2733133836-KFKF-C1-2Datasheet273138+36+381010+8/4.2K(F)
SBP-2733133836-KF28-E1-HRDatasheet273138+36+381010+8/4.2K(F)/WR-28 Uni-Guide™ Waveguide
SBP-2332633533-2FKF-E1-HRDatasheet232635+33+351010+8/32.4 mm (F)/K(F)
