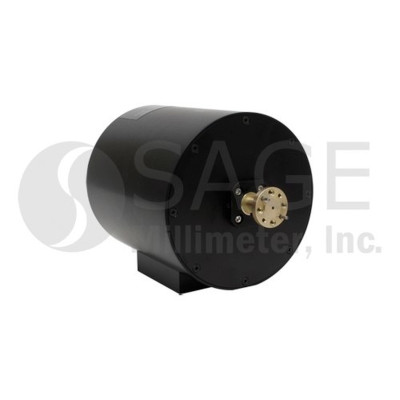

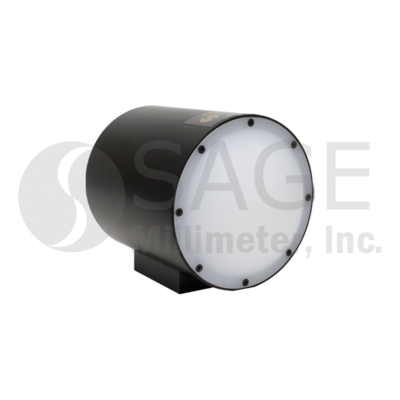

Gaussian Optical Lens Antennas

メーカー名:Eravant
ガウス光学レンズアンテナは、円形または長方形の導波管インターフェースを備えています。
矩形導波管インターフェースを備えたガウス光学レンズアンテナは直線偏波のみをサポートできますが、円形導波管インターフェースを備えたモデルは、より広いアプリケーション向けに水平、垂直、左回りの円偏波、右回りの円偏波を含むさまざまな偏波タイプをサポートできます。
ガウス光学レンズアンテナは、高効率、低サイドローブ、および堅牢な機械的構成を提供するように設計および構築されています。
コルゲートフィードホーンと誘電体レンズにより、これらのアンテナは明確なガウスビームを形成できます。
さらに、誘電体レンズは位相誤差補正を提供し、環境条件から保護するためのレドームとして機能します。

Gaussian optics lens antennas are offered with either a circular or rectangular waveguide interface. While Gaussian optics lens antennas with a rectangular waveguide interface can only support linear polarization, models with a circular waveguide interface can support various polarization types including horizontal, vertical, left-handed circular, and right-handed circular polarization for broader applications. Gaussian optics lens antennas are designed and constructed to offer high efficiency, low side lobes and a rugged mechanical configuration. A corrugated feed horn and dielectric lens allow these antennas to form well-defined Gaussian beams. Additionally, the dielectric lens provides phase error corrections and serves as a radome to protect from environmental conditions.

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyGain3 dB BeamwidthReturn LossPolarizationAntenna PortLens Diameter
SAG-2032532806-396-S1Datasheet20 GHz24.5 GHz28 dBi6.2°20 dBLinear and Circular0.396" Dia Circular WG6"
SAG-2032532806-42-S1Datasheet20 GHz24.5 GHz28 dBi6.2°20 dbLinearWR-42 Waveguide6"
SAG-2533033005-315-S1Datasheet25 GHz30 GHz30 dBi5.0°14 dBLinear and Circular0.315" Dia Circular WG6
SAG-2533033005-28-S1Datasheet25 GHz30 GHz30 dBi5.0°15 dbLinearWR-28 Waveguide6
SAG-7438033203-125-S1Datasheet73.5 GHz79.5 GHz32 dBi3.0°21 dBLinear and Circular0.125" Dia Circular WG3"
SAG-7438033203-12-S1Datasheet73.5 GHz79.5 GHz32 dBi3.0°21 dBLinearWR-12 Waveguide3"
SAG-2032533403-396-S1Datasheet20 GHz24.5 GHz34 dBi3.2°20 dBLinear and Circular0.396" Dia Circular WG12"
SAG-2032533403-42-S1Datasheet20 GHz24.5 GHz34 dBi3.2°20 dBLinearWR-42 Waveguide12"
SAG-8831043403-094-S1Datasheet88 GHz100 GHz34 dBi3.0°21 dBLinear and Circular0.094" Dia Circular WG3"
SAG-8831043403-10-S1Datasheet88 GHz100 GHz34 dBi3.0°21 dBLinearWR-10 Waveguide3
SAG-2533033502-315-S1Datasheet25 GHz30 GHz35 dBi2.0°13 dBLinear and Circular0.315" Dia Circular WG12
SAG-2533033502-28-S1Datasheet25 GHz30 GHz35 dBi2.0°13 dBLinear0.315" Circular WG12
SAG-5836833503-141-S1Datasheet58 GHz68 GHz36 dBi3.0°14 dBLinear and Circular0.141" Dia Circular WG6"
SAG-5836833503-15-S1Datasheet58 GHz68 GHz36 dBi3.0°14 dBLinearWR-15 Waveguide6"
SAG-3234033802-250-S1Datasheet32 GHz40 GHz38 dBi1.9°14 dBLinear and Circular0.250" Dia Circular WG12"
SAG-3234033802-28-S1Datasheet32 GHz40 GHz38 dBi1.9°14 dBLinearWR-28 Waveguide12
SAG-1441544002-059-S1Datasheet140 GHz150 GHz40 dBi1.9°21 dBLinear and Circular0.059" Dia Circular WG3
SAG-1441544002-06-S1Datasheet140 GHz150 GHz40 dBi1.9°-LinearWR-06 Waveguide3
SAG-7138634002-110-S1Datasheet71 GHz86 GHz40 dBi1.8°15 dBLinear and Circular0.110" Dia Circular WG6"
SAG-7138634002-12-S1Datasheet71 GHz86 GHz40 dBi1.8°15 dBLinearWR-12 Waveguide6"
SAG-8831044002-094-S1Datasheet88 GHz100 GHz40 dBi1.5°15 dBLinear and Circular0.094" Dia Circular WG6"
SAG-8831044002-10-S1Datasheet88 GHz100 GHz40 dBi1.5°15 dBLinearWR-10 Waveguide6"
SAG-5836834201-141-S1Datasheet58 GHz68 GHz42 dBi1.2°15 dBLinear and Circular0.141" Dia Circular WG12"
SAG-5836834201-15-S1Datasheet58 GHz68 GHz42 dBi1.2°15 dBLinearWR-15 Waveguide12"
SAG-1441644501-06-S1Datasheet135 GHz160 GHz45 dBi1.0°20 dBLinearWR-06 Waveguide6"
SAG-6838634501-125-S1Datasheet68 GHz86 GHz45 dBi1.0°15 dBLinear and Circular0.125" Dia Circular WG12"
SAG-6838634501-12-S1Datasheet68 GHz88 GHz45 dBi1.0°15 dBLinearWR-12 Waveguide12"
SAG-1441544601-059-S1Datasheet140 GHz150 GHz46 dBi0.95°21 dBLinear and Circular0.059" Dia Circular WG6"
SAG-1441544601-06-S1Datasheet140 GHz150 GHz46 dBi0.95°21 dBLinearWR-06 Waveguide6"
SAG-8831044801-094-S1Datasheet88 GHz100 GHz48 dBi0.8°15 dBLinear and Circular0.094" Dia Circular WG12
SAG-8831044801-10-S1Datasheet88 GHz100 GHz48 dBi0.8°15 dBLinearWR-10 Waveguide12"

備考

Remarks
