Balanced Mixers

メーカー名: Eravant
二つの信号を混合する混合器のことです。

ミキサには入力信号RF(Radio Frequency)と、ローカル信号LO(Local Oscillator)そして出力信号IF(Intermediate Frequency)の三つがあります。

製品仕様

Product Specifications

ModelData sheetMinimum RF Frequency [GHz]Maximum RF Frequency [GHz]Minimum LO Frequency [GHz]Maximum LO Frequency [GHz]Minimum IF Frequency [GHz]Maximum IF Frequency [GHz]LO Pumping Power [dBm]RF Port

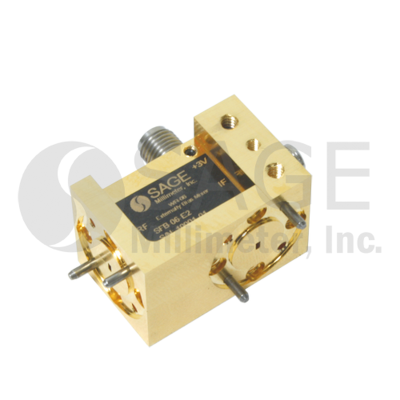

SFB-06-E2Datasheet110170110170DC20+3WR-06 Waveguide
SFB-06-N1Datasheet110170110170DC40+13WR-06 Waveguide
SFB-08-E2Datasheet9014090140DC20+3WR-08 Waveguide
SFB-08-N1Datasheet9014090140DC40+13WR-08 Waveguide
SFB-90314415-0810KF-N1Datasheet9014075110DC35+13WR-08 Waveguide
SFB-10-E2Datasheet7511075110DC35+3WR-10 Waveguide
SFB-10-N1Datasheet7511075110DC35+13WR-10 Waveguide
SFB-65310410-1010KF-N1Datasheet65110102.5102.5DC37.5+13WR-10 Waveguide
SFB-67310410-1010KF-N3Datasheet65100102.5102.52.537.5+13WR-10 Waveguide
SFB-12-E2Datasheet60906090DC30+3WR-12 Waveguide
SFB-12-N1Datasheet60906090DC30+13WR-12 Waveguide
SFB-75380308-1212SF-N1Datasheet75807580DC5+13WR-12 Waveguide
SFB-15-E2Datasheet50755075DC25+3WR-15 Waveguide
SFB-50375315-1519KF-N1Datasheet50754060DC35+13WR-15 Waveguide
SFB-15-N1Datasheet50755075DC25+13WR-15 Waveguide
SFB-15-N1-ADatasheet50755075DC25+13WR-15 Waveguide
SFB-15-N1-MDatasheet50755075DC25+13WR-15 Waveguide
SFB-55375307-1519SF-E2Datasheet55754060DC25+3WR-15 Waveguide
SFB-55375307-1519SF-N1Datasheet55754060DC25+13WR-15 Waveguide
SFB-19-E2Datasheet40604060DC20+3WR-19 Waveguide
SFB-19-N1Datasheet40604060DC20+13WR-19 Waveguide
SFB-40360311-1919SF-N1-MDatasheet40604060DC14+15WR-19 Waveguide
SFB-22-E2Datasheet33503350DC17+3WR-22 Waveguide
SFB-22-N1Datasheet33503350DC17+13WR-22 Waveguide

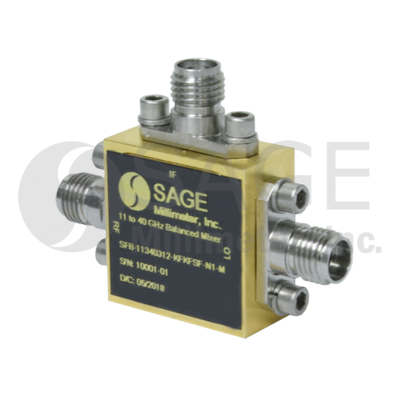

SFB-11340312-KFKFSF-N1-MDatasheet11401140DC10+15K(F)
SFB-28-N1Datasheet26.54026.540DC13.5+13WR-28 Waveguide
SFB-28-N1-MDatasheet26.54026.540DC13+15WR-28 Waveguide
SFB-42-N1Datasheet1826.51826.5DC8.5+13WR-42 Waveguide

備考

Remarks

・Balanced Mixers ・Passive Frequency Multipliers ・Quadrature Mixers
