Flexible Waveguide Sections

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyReturn LossInsertion LossInsertion LengthWaveguide Size
SWG-10040-FB-FDatasheet75 GHz110 GHz15 dB2.3 dB4"WR-10 Waveguide
SWG-10020-FB-FDatasheet75 GHz110 GHz15 dB1.5 dB2"WR-10 Waveguide
SWG-10030-FB-FDatasheet75 GHz110 GHz15 dB1.9 dB3"WR-10 Waveguide
SWG-112118-FB-FT-GDatasheet7.05 GHz10.0 GHz26 dB0.09 dB11.81"WR-112 Waveguide
SWG-112236-FB-FT-GDatasheet7.05 GHz10.0 GHz26 dB0.18 dB23.6"WR-112 Waveguide
SWG-112354-FB-FT-GDatasheet7.05 GHz10.0 GHz26 dB0.27 dB35.4"WR-112 Waveguide
SWG-12040-FB-FDatasheet60 GHz90 GHz15 dB1.6 dB4"WR-12 Waveguide

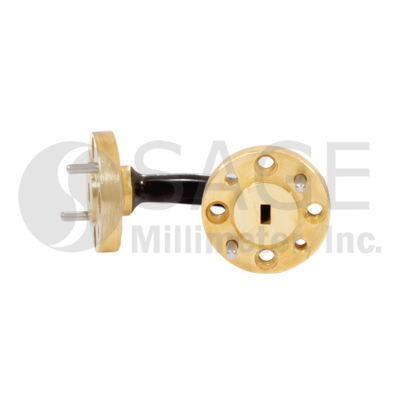

SWG-12020-FB-FDatasheet60 GHz90 GHz15 dB1.2 dB2"WR-12 Waveguide
SWG-12030-FB-FDatasheet60 GHz90 GHz15 dB1.4 dB3"WR-12 Waveguide
SWG-137118-FB-FT-GDatasheet5.85 GHz8.2 GHz26 dB0.08 dB11.81"WR-137 Waveguide
SWG-137236-FB-FT-GDatasheet5.85 GHz8.2 GHz26 dB0.15 dB23.6"WR-137 Waveguide
SWG-137354-FB-FT-GDatasheet5.85 GHz8.2 GHz26 dB0.23 dB35.4"WR-137 Waveguide
SWG-15040-FB-FDatasheet50 GHz75 GHz15 dB1.4 dB4"WR-15 Waveguide
SWG-15020-FB-FDatasheet50 GHz75 GHz15 dB1.0 dB2"WR-15 Waveguide
SWG-15030-FB-FDatasheet50 GHz75 GHz15 dB1.2 dB3"WR-15 Waveguide

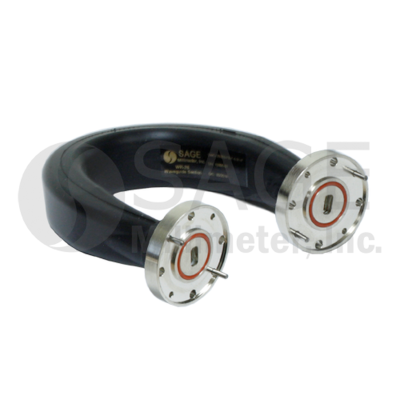

SWG-22059-FB-FT-A-GDatasheet33 GHz50 GHz14 dB0.8 dB5.91"WR-22 Waveguide
SWG-22118-FB-FT-A-GDatasheet33 GHz50 GHz14 dB0.8 dB11.81"WR-22 Waveguide
SWG-22236-FB-FT-A-GDatasheet33 GHz50 GHz14 dB1.5 dB23.6"WR-22 Waveguide

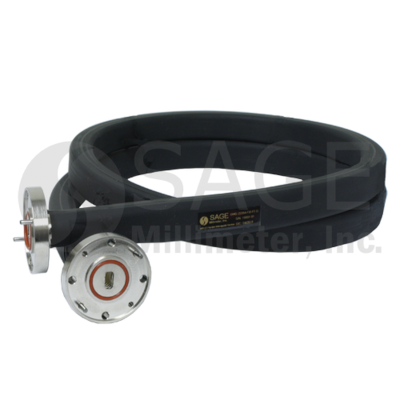

SWG-22354-FB-FT-A-GDatasheet33 GHz50 GHz14 dB2.3 dB35.4"WR-22 Waveguide
SWG-28059-FB-FT-GDatasheet26.5 GHz40 GHz21 dB0.3 dB5.91"WR-28 Waveguide
SWG-28059-FB-FT-U320Datasheet26.5 GHz40 GHz21 dB0.6 dB5.91"WR-28 Waveguide
SWG-28118-FB-FT-GDatasheet26.5 GHz40 GHz21 dB0.6 dB11.81"WR-28 Waveguide
SWG-28236-FB-FT-GDatasheet26.5 GHz40 GHz17 dB1.2 dB23.6"WR-28 Waveguide
SWG-28354-FB-FT-GDatasheet26.5 GHz40 GHz17 dB1.8 dB35.4"WR-28 Waveguide
SWG-223443354-FB-FT-GDatasheet22 GHz44 GHz17 dB1.8 dB35.4"WR-28 Waveguide
SWG-34118-FB-FTDatasheet22 GHz33 GHz18 dB0.3 dB11.81"WR-34 Waveguide
SWG-34118-FB-FT-GDatasheet22 GHz33 GHz20 dB0.45 dB11.81"WR-34 Waveguide
SWG-34236-FB-FT-GDatasheet22 GHz33 GHz20 dB0.9 dB23.6"WR-34 Waveguide
SWG-34354-FB-FT-GDatasheet22 GHz33 GHz19 dB1.35 dB35.4"WR-34 Waveguide
SWG-42059-FB-FT-GDatasheet18 GHz26.5 GHz23 dB0.35 dB5.91"WR-42 Waveguide
SWG-42118-FB-FT-GDatasheet18 GHz26.5 GHz23 dB0.4 dB11.81"WR-42 Waveguide
SWG-42236-FB-FT-GDatasheet18 GHz26.5 GHz23 dB0.75 dB23.6"WR-42 Waveguide
SWG-42354-FB-FT-GDatasheet18 GHz26.5 GHz21 dB1.0 dB35.4"WR-42 Waveguide
SWG-62118-FB-FT-GDatasheet12.4 GHz18 GHz25 dB0.3 dB11.81"WR-62 Waveguide
SWG-62236-FB-FT-GDatasheet12.4 GHz18 GHz25 dB0.5 dB23.6"WR-62 Waveguide
SWG-62354-FB-FT-GDatasheet12.4 GHz18 GHz25 dB0.8 dB35.4"WR-62 Waveguide
SWG-75118-FB-FT-GDatasheet10 GHz15 GHz25 dB0.15 dB11.81"WR-75 Waveguide
SWG-75236-FB-FT-GDatasheet10 GHz15 GHz25 dB0.3 dB23.6"WR-75 Waveguide
SWG-75354-FB-FT-GDatasheet10 GHz15 GHz25 dB0.5 dB35.4"WR-75 Waveguide
SWG-90118-FB-FT-GDatasheet8.2 GHz12.4 GHz25 dB0.12 dB11.81"WR-90 Waveguide
SWG-90236-FB-FT-GDatasheet8.2 GHz12.4 GHz25 dB0.24 dB23.6"WR-90 Waveguide
SWG-90354-FB-FT-GDatasheet8.2 GHz12.4 GHz25 dB0.36 dB35.4"WR-90 Waveguide
