Flexible Coaxial Cable Assemblies

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyReturn LossImpedanceCable LengthCable TypeCable Outer DiameterMinimum Bending RadiusConnectors

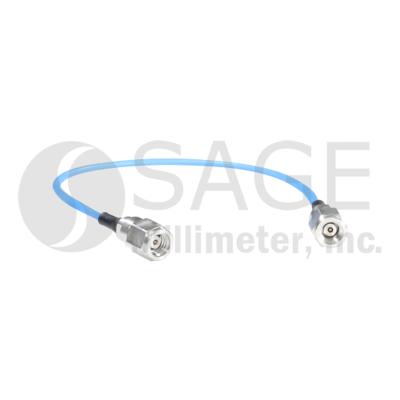

SCW-1F1M006-F1DatasheetDC110 GHz20 dB50 Ohms6"Flexible0.058"0.201"1 mm Male and Female
SCW-1M1M012-F1DatasheetDC110 GHz14 dB50 Ohms12"Flexible0.058"0.250"1 mm Male
SCW-1M1M012-F1-PMDatasheetDC110 GHz14 dB50 Ohms12"Flexible0.058"0.250"1 mm Male
SCW-1M1M012-F1-2DatasheetDC110 GHz16 dB50 Ohms12"Flexible0.058"0.201"1 mm Male
SCW-1M1M024-F1DatasheetDC110 GHz14 dB50 Ohms24"Flexible0.058"0.250"1 mm Male
SCW-1M1M024-F1-PMDatasheetDC110 GHz14 dB50 Ohms24"Flexible0.058"0.250"1 mm Male
SCW-1M1M003-F1DatasheetDC110 GHz14 dB50 Ohms3"Flexible0.058"0.250"1 mm Male
SCW-1M1M003-F1-PMDatasheetDC110 GHz14 dB50 Ohms3"Flexible0.058"0.250"1 mm Male
SCW-1M1M003-F1-2DatasheetDC110 GHz16 dB50 Ohms3"Flexible0.058"0.201"1 mm Male
SCW-1M1M040-F1DatasheetDC110 GHz14 dB50 Ohms40"Flexible0.058"0.250"1 mm Male
SCW-1M1M040-F1-PMDatasheetDC110 GHz14 dB50 Ohms40"Flexible0.058"0.250"1 mm Male
SCW-1M1M048-F1DatasheetDC110 GHz14 dB50 Ohms48"Flexible0.058"0.250"1 mm Male
SCW-1M1M048-F1-PMDatasheetDC110 GHz14 dB50 Ohms48"Flexible0.058"0.250"1 mm Male
SCW-1M1M006-F1DatasheetDC110 GHz14 dB50 Ohms6"Flexible0.058"0.250"1 mm Male
SCW-1M1M006-F1-PMDatasheetDC110 GHz14 dB50 Ohms6"Flexible0.058"0.250"1 mm Male
SCW-1M1M006-F1-2DatasheetDC110 GHz16 dB50 Ohms6"Flexible0.058"0.201"1 mm Male
SCW-1M1M060-F1DatasheetDC110 GHz14 dB50 Ohms60"Flexible0.058"0.250"1 mm Male
SCW-1M1M060-F1-PMDatasheetDC110 GHz14 dB50 Ohms60"Flexible0.058"0.250"1 mm Male
STQ-CW-3F3F025-F1DatasheetDC26.5 GHz19 dB50 Ohms25"Flexible0.598"2.36"3.5 mm NMD Female and 3.5 mm Female
STQ-CW-3F3M025-F1DatasheetDC26.5 GHz19 dB50 Ohms25"Flexible0.598"2.36"3.5 mm NMD Female and 3.5 mm NMD Male
SCW-SMSM012-F1-A-PMDatasheetDC26.5 GHz20 dB50 Ohms12"Flexible0.181"0.79"SMA Male
SCW-SMSM012-F1-ADatasheetDC26.5 GHz20 dB50 Ohms12"Flexible0.181"0.79"SMA Male
SCW-SMSM020-F1-A-PMDatasheetDC26.5 GHz20 dB50 Ohms20"Flexible0.181"0.79"SMA Male
SCW-SMSM020-F1-ADatasheetDC26.5 GHz20 dB50 Ohms20"Flexible0.181"0.79"SMA Male
SCW-SMSM024-F1-A-PMDatasheetDC26.5 GHz20 dB50 Ohms24"Flexible0.181"0.79"SMA Male
SCW-SMSM024-F1-ADatasheetDC26.5 GHz20 dB50 Ohms24"Flexible0.181"0.79"SMA Male
SCW-SMSM003-F1-A-PMDatasheetDC26.5 GHz20 dB50 Ohms3"Flexible0.181"0.79"SMA Male
SCW-SMSM003-F1-ADatasheetDC26.5 GHz20 dB50 Ohms3"Flexible0.181"0.79"SMA Male
SCW-SMSM040-F1-A-PMDatasheetDC26.5 GHz20 dB50 Ohms40"Flexible0.181"0.79"SMA Male
SCW-SMSM040-F1-ADatasheetDC26.5 GHz20 dB50 Ohms40"Flexible0.181"0.79"SMA Male
SCW-SMSM048-F1-A-PMDatasheetDC26.5 GHz20 dB50 Ohms48"Flexible0.181"0.79"SMA Male
SCW-SMSM048-F1-ADatasheetDC26.5 GHz20 dB50 Ohms48"Flexible0.181"0.79"SMA Male
SCW-SMSM006-F1-A-PMDatasheetDC26.5 GHz20 dB50 Ohms6"Flexible0.181"0.79"SMA Male
SCW-SMSM006-F1-ADatasheetDC26.5 GHz20 dB50 Ohms6"Flexible0.181"0.79"SMA Male
SCW-SMSM060-F1-A-PMDatasheetDC26.5 GHz20 dB50 Ohms60"Flexible0.181"0.79"SMA Male
SCW-SMSM060-F1-ADatasheetDC26.5 GHz20 dB50 Ohms60"Flexible0.181"0.79"SMA Male
SCW-KMKM012-F1-PMDatasheetDC40 GHz18 dB50 Ohms12"Flexible0.142"0.7"2.92 mm Male
SCW-KMKM012-F1DatasheetDC40 GHz18 dB50 Ohms12"Flexible0.142"0.7"2.92 mm Male
SCW-KMKM024-F1-PMDatasheetDC40 GHz18 dB50 Ohms24"Flexible0.142"0.7"2.92 mm Male
SCW-KMKM024-F1DatasheetDC40 GHz18 dB50 Ohms24"Flexible0.142"0.7"2.92 mm Male
SCW-KMKM003-F1DatasheetDC40 GHz18 dB50 Ohms3"Flexible0.087"0.5"2.92 mm Male
SCW-KMKM003-F1-PMDatasheetDC40 GHz18 dB50 Ohms3"Flexible0.087"0.5"2.92 mm Male
SCW-KMKM040-F1-PMDatasheetDC40 GHz18 dB50 Ohms40"Flexible0.142"2.92 mm Male
SCW-KMKM040-F1DatasheetDC40 GHz18 dB50 Ohms40"Flexible0.142"2.92 mm Male
SCW-KMKM048-F1-PMDatasheetDC40 GHz18 dB50 Ohms48"Flexible0.142"2.92 mm Male
SCW-KMKM048-F1DatasheetDC40 GHz18 dB50 Ohms48"Flexible0.142"2.92 mm Male
SCW-KMKM006-F1DatasheetDC40 GHz18 dB50 Ohms6"Flexible0.087"0.5"2.92 mm Male
SCW-KMKM006-F1-PMDatasheetDC40 GHz18 dB50 Ohms6"Flexible0.087"0.5"2.92 mm Male
SCW-KMKM060-F1-PMDatasheetDC40 GHz18 dB50 Ohms60"Flexible0.142"2.92 mm Male
SCW-KMKM060-F1DatasheetDC40 GHz18 dB50 Ohms60"Flexible0.142"2.92 mm Male
STQ-CW-KFKF025-F1DatasheetDC40 GHz17 dB50 Ohms25"Flexible0.598"2.36"2.92 mm NMD Female and 2.92 mm Female
STQ-CW-KFKM025-F1DatasheetDC40 GHz17 dB50 Ohms25"Flexible0.598"2.36"2.92 mm NMD Female and 2.92 mm NMD Male
SCW-2M2M012-F1DatasheetDC50 GHz14 dB50 Ohms12"Flexible0.087"0.5"2.4 mm Male
SCW-2M2M012-F1-PMDatasheetDC50 GHz14 dB50 Ohms12"Flexible0.087"0.5"2.4 mm Male
SCW-2M2M024-F1DatasheetDC50 GHz14 dB50 Ohms24"Flexible0.087"0.5"2.4 mm Male
SCW-2M2M024-F1-PMDatasheetDC50 GHz14 dB50 Ohms24"Flexible0.087"0.5"2.4 mm Male
SCW-2M2M003-F1DatasheetDC50 GHz14 dB50 Ohms3"Flexible0.087"0.5"2.4 mm Male
SCW-2M2M003-F1-PMDatasheetDC50 GHz14 dB50 Ohms3"Flexible0.087"0.5"2.4 mm Male
SCW-2M2M040-F1DatasheetDC50 GHz18 dB50 Ohms40"Flexible0.087"2.4 mm Male
SCW-2M2M040-F1-PMDatasheetDC50 GHz18 dB50 Ohms40"Flexible0.087"2.4 mm Male
SCW-2M2M048-F1DatasheetDC50 GHz14 dB50 Ohms48"Flexible0.087"2.4 mm Male
SCW-2M2M048-F1-PMDatasheetDC50 GHz14 dB50 Ohms48"Flexible0.087"2.4 mm Male
SCW-2M2M006-F1DatasheetDC50 GHz14 dB50 Ohms6"Flexible0.087"0.5"2.4 mm Male
SCW-2M2M006-F1-PMDatasheetDC50 GHz14 dB50 Ohms6"Flexible0.087"0.5"2.4 mm Male
SCW-2M2M060-F1DatasheetDC50 GHz14 dB50 Ohms60"Flexible0.087"2.4 mm Male
SCW-2M2M060-F1-PMDatasheetDC50 GHz14 dB50 Ohms60"Flexible0.087"2.4 mm Male
STQ-CW-2F2F025-F1DatasheetDC50 GHz17 dB50 Ohms25"Flexible0.598"2.36"2.4 mm NMD Female and 2.4 mm Female
STQ-CW-2F2M025-F1DatasheetDC50 GHz17 dB50 Ohms25"Flexible0.598"2.36"2.4 mm NMD Female and 2.4 mm NMD Male
SCW-VMVM012-F1-PMDatasheetDC67 GHz17 dB50 Ohms12"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM012-F1DatasheetDC67 GHz17 dB50 Ohms12"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM024-F1-PMDatasheetDC67 GHz17 dB50 Ohms24"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM024-F1DatasheetDC67 GHz17 dB50 Ohms24"Flexible0.087"0.197"1.85 mm Male

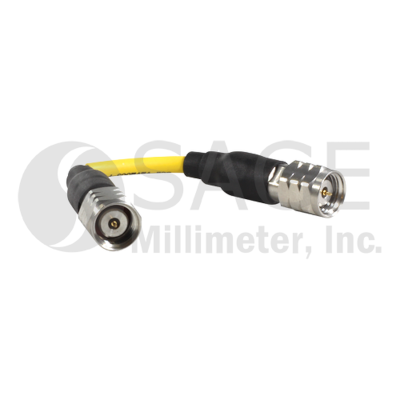

SCW-VMVM003-F1-PMDatasheetDC67 GHz17 dB50 Ohms3"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM003-F1DatasheetDC67 GHz17 dB50 Ohms3"Flexible0.087"0.197"1.85 mm Male

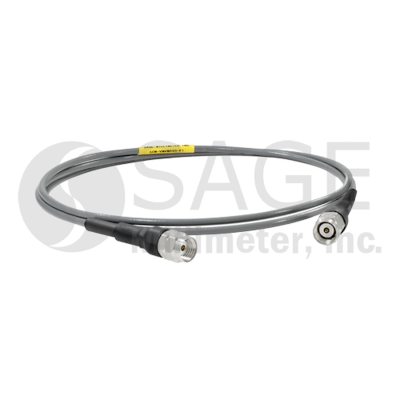

SCW-VMVM040-F1-PMDatasheetDC67 GHz17 dB50 Ohms40"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM040-F1DatasheetDC67 GHz17 dB50 Ohms40"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM048-F1-PMDatasheetDC67 GHz17 dB50 Ohms48"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM048-F1DatasheetDC67 GHz17 dB50 Ohms48"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM006-F1-PMDatasheetDC67 GHz17 dB50 Ohms6"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM006-F1DatasheetDC67 GHz17 dB50 Ohms6"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM060-F1-PMDatasheetDC67 GHz17 dB50 Ohms60"Flexible0.087"0.197"1.85 mm Male
SCW-VMVM060-F1DatasheetDC67 GHz17 dB50 Ohms60"Flexible0.087"0.197"1.85 mm Male
STQ-CW-VFVF025-F1DatasheetDC67 GHz15 dB50 Ohms25"Flexible0.598"2.36"1.85 mm NMD Female and 1.85 mm Female
STQ-CW-VFVM025-F1DatasheetDC67 GHz15 dB50 Ohms25"Flexible0.598"2.36"1.85 mm NMD Female and 1.85 mm NMD Male
STQ-CW-VFVM038-F1DatasheetDC67 GHz15 dB50 Ohms38"Flexible0.598"2.36"1.85 mm NMD Female and 1.85 mm NMD Male
STQ-CW-VFVM048-F1DatasheetDC67 GHz15 dB50 Ohms48"Flexible0.598"2.36"1.85 mm NMD Female and 1.85 mm NMD Male
SCW-EMEM012-F1-PMDatasheetDC90 GHz14 dB50 Ohms12"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM012-F1DatasheetDC90 GHz14 dB50 Ohms12"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM024-F1-PMDatasheetDC90 GHz14 dB50 Ohms24"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM024-F1DatasheetDC90 GHz14 dB50 Ohms24"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM003-F1DatasheetDC90 GHz14 dB50 Ohms3"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM003-F1-PMDatasheetDC90 GHz14 dB50 Ohms3"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM040-F1-PMDatasheetDC90 GHz14 dB50 Ohms40"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM040-F1DatasheetDC90 GHz14 dB50 Ohms40"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM048-F1-PMDatasheetDC90 GHz14 dB50 Ohms48"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM048-F1DatasheetDC90 GHz14 dB50 Ohms48"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM006-F1DatasheetDC90 GHz14 dB50 Ohms6"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM006-F1-PMDatasheetDC90 GHz14 dB50 Ohms6"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM060-F1-PMDatasheetDC90 GHz14 dB50 Ohms60"Flexible0.057"0.250"1.35 mm Male
SCW-EMEM060-F1DatasheetDC90 GHz14 dB50 Ohms60"Flexible0.057"0.250"1.35 mm Male

備考

Remarks

お問い合わせからアフターフォローまで一貫して当社にお任せ下さい。
