Dual Polarized Antennas

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberMinimum FrequencyMaximum FrequencyGain3 dB Beamwidth, E-plane (33 GHz)3 dB Beamwidth, H-plane (33 GHz)IsolationReturn LossHorizontal and Vertical Ports
SAH-2434231060-328-S1-280-DP24 GHz42 GHz10 dBi60°60°35 dB15 dBWR-28 Waveguide
SAH-5037531060-165-S1-148-DP50 GHz75 GHz10 dBi--40 dB15 dBWR-15 Waveguide
SAH-7531141060-110-S1-100-DP75 GHz110 GHz10 dBi--40 dB15 dBWR-10 Waveguide
SAV-0535031140-2F-U5-QR5 GHz50 GHz11 dbi---10 dB-
SAV-0131231226-SF-S5-DP-QR1 GHz12 GHz12 dbi---7 dB-
SAC-0231831225-SF-S4-DP2 GHz18 GHz12 dBi--30 dB10 dBSMA (F)
SAC-0432431235-SF-S4-DP-QR4 GHz24 GHz12 dBi--30 dB10 dB-
SAC-0432431230-SF-S4-DP-RD4 GHz24 GHz12 dBi--30 dB10 dB-
SAF-4036031340-219-S1-188-DP40 GHz60 GHz13 dBi40°40°35 dB15 dBWR-19 Waveguide
SAF-5037531340-165-S1-148-DP50 GHz75 GHz13 dBi40°40°30 dB15 dBWR-15 Waveguide
SAF-6039031340-141-S1-122-DP60 GHz90 GHz13 dBi40°40°35 dB15 dBWR-12 Waveguide
SAF-7531141340-110-S1-100-DP75 GHz110 GHz13 dBi40°40°30 dB15 dBWR-10 Waveguide

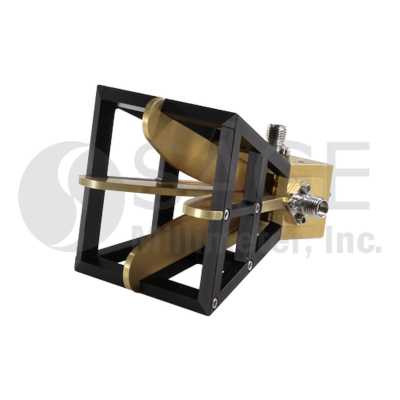

SAV-0434031428-KF-U5-QR4 GHz40 GHz14 dbi---10 dB-
SAV-0632531431-SF-U3-QR6 GHz24.5 GHz14 dbi---8 dB-
SAV-0632531431-SF-S1-QR-WR6 GHz24.5 GHz14 dbi---8 dB-
SAV-0632531431-SF-S1-QR6 GHz24.5 GHz14 dbi---8 dB-
SAC-1833231516-KF-S5-DP18 GHz32 GHz15 dBi--20 dB7 dB2.92 mm (F)
SAF-2334431535-328-S1-280-DP23 GHz44 GHz15 dBi--40 dB15 dBWR-28 Waveguide
SAF-2434031535-358-S1-280-DP24 GHz40 GHz15 dBi35°35°35 dB15 dBWR-28 Waveguide
SAF-2434231535-328-S1-280-DP24 GHz42 GHz15 dBi35°35°35 dB25 dBWR-28 Waveguide
SAF-2434431535-328-2F2F-R1-280-DP24 GHz43.5 GHz15 dBi--40 dB-2.4 mm Female
SAC-2734031517-KF-S5-DP26.5 GHz40 GHz15 dBi--20 dB7 dB2.92 mm (F)
SAR-1532-224-S2-DP33 GHz50 GHz15 dBi--45 dB-WR-22 Waveguide
SAR-1532-148-S2-DP50 GHz75 GHz15 dBi--45 dB-WR-15 Waveguide
SAR-1532-122-S2-DP60 GHz90 GHz15 dBi--45 dB15 dBWR-12 Waveguide

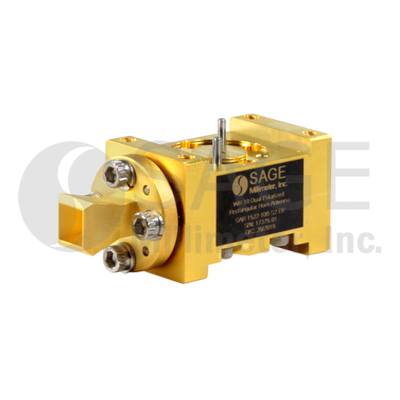

SAR-1532-100-S2-DP75 GHz110 GHz15 dBi--45 dB-WR-10 Waveguide
SAC-1834031621-KF-S5-DP18 GHz40 GHz17 dBi--30 dB10 dB2.92 mm (F)
SAF-2434231725-328-S1-280-DP24 GHz42 GHz17 dBi--35 dB15 dBWR-28 Waveguide
SAR-2018-100-S2-DP75 GHz110 GHz20 dBi--45 dB-WR-10 Waveguide
SAL-2734032309-28-S1-DP-WR26.5 GHz40 GHz23 dBi-----
SAV-0130430883-SF-U4-QR1 GHz4 GHz8 dbi---9 dB-
