Doppler Sensor Modules

メーカー名:Eravant

製品仕様

Product Specifications

Model Number RF Center FrequencyTransmitting PowerMinimum IF FrequencyMaximum IF FrequencyFrequency StabilityPower StabilityDC BiasChannel
SSM-11405-S2Datasheet110 GHz+5 dBmDC1 GHz-6.0 MHz/°C0.04 dB/°C+12 VDC/250 mASingle
SSM-24307-S1-1Datasheet24.125 GHz+7 dBmDC100 MHz-0.8 MHz/°C-0.03 dB/°C+5 VDC/250 mASingle
SSM-34300-NAN-D1Datasheet34.3 GHz-----+5 VDC/350 mADual

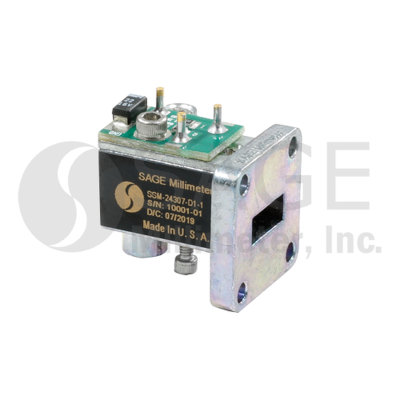

SSM-24307-D1-1Datasheet24.125 GHz+7 dBmDC100 MHz-0.8 MHz/°C-0.03 dB/°C+5 VDC/250 mADual

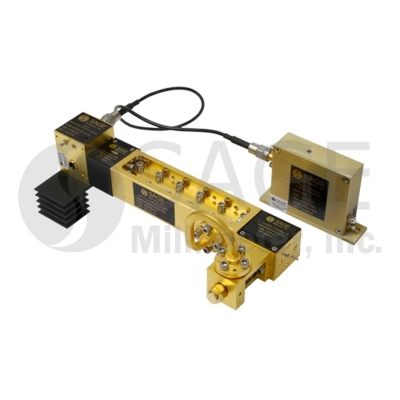

SSM-94313-S1Datasheet94 GHz+13 dBmDC1 GHz-6.0 MHz/°C0.04 dB/°C+12 VDC/250 mASingle

備考

Remarks
