Doppler Sensor Heads

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetRF Center FrequencyTX PowerAntenna Gain3 dB BW (H x V)PolarizationDC BiasChannelRange
SSS-24310-22L-D1Datasheet24.125 GHz+10 dBm22 dBi12° x 12°RH Circular+5 VDC/250 mADualLong
SSS-24310-22L-S1Datasheet24.125 GHz+10 dBm22 dBi12° x 12°RH Circular+5 VDC/250 mASingleLong
SSS-24317-22L-D1Datasheet24.125 GHz+17 dBm22 dBi12° x 12°RH Circular+5 VDC/650 mADualLong
SSS-24317-22L-S1Datasheet24.125 GHz+17 dBm22 dBi12° x 12°RH Circular+5 VDC/650 mASingleLong
SSS-24307-20M-DWDatasheet24.125 GHz+7 dBm20 dBi12° x 12°Linear, V+5 VDC/250 mADualShort

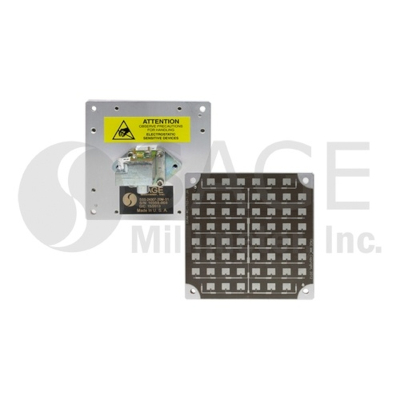

SSS-24307-20M-SWDatasheet24.125 GHz+7 dBm20 dBi12° x 12°Linear, V+5 VDC/250 mASingleShort
SSS-24307-22M-D1Datasheet24.125 GHz+7 dBm22 dBi4.6° x 14.8°Linear, V+5 VDC/250 mADualMedium
SSS-24307-22M-SWDatasheet24.125 GHz+7 dBm22 dBi4.6° x 14.8°Linear, V+5 VDC/250 mASingleShort
SSS-24307-22M-S1Datasheet24.125 GHz+7 dBm22 dBi4.6° x 14.8°Linear, V+5 VDC/250 mASingleMedium
SSS-24307-22M-DWDatasheet24.125 GHz+7 dBm22 dBi4.6° x 14.8°Linear, V+5 VDC/250 mADualShort
SSS-24307-27M-DWDatasheet24.125 GHz+7 dBm27 dBi4.6° x 6.8°Linear+5 VDC/250 mADualShort
SSS-24307-27M-SWDatasheet24.125 GHz+7 dBm27 dBi4.6° x 6.8°Linear+5 VDC/250 mASingleShort
SSS-34300-28L-D1Datasheet34.3 GHz-3 dBm28 dBi5° x 5°RH Circular+5 VDC/350 mADualLong
SSS-35307-20M-S1Datasheet34.85 GHz+7 dBm20 dBi4.6° x 14.8°Linear+5 VDC/250 mASingleMedium

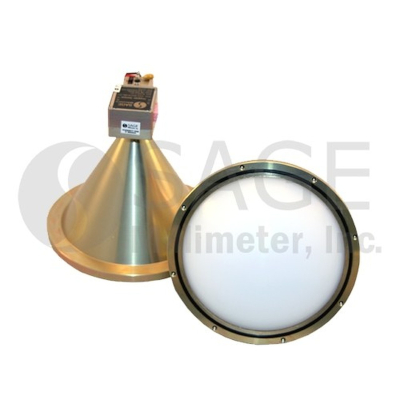

SSS-35300-29L-D1Datasheet35 GHz+0 dBm29 dBi5° x 5°RH Circular+5 VDC/250 mADualLong
SSS-35300-29L-S1Datasheet35 GHz+0 dBm29 dBi5° x 5°RH Circular+5 VDC/250 mASingleLong
SSS-35310-22L-D2Datasheet35 GHz+10 dBm22 dBi12° x 12°RH Circular+5.5 VDC/350 mADualLong

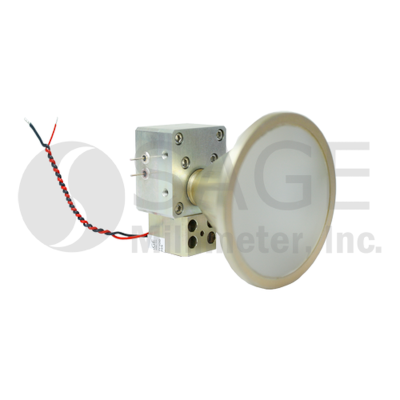

SSS-35310-22L-D1Datasheet35 GHz+10 dBm22 dBi12° x 12°RH Circular+5 VDC/250 mADualLong
SSS-35310-22L-S1Datasheet35 GHz+10 dBm22 dBi12° x 12°RH Circular+5 VDC/250 mASingleLong
SSS-35310-29L-D2Datasheet35 GHz+10 dBm29 dBiRH Circular+5 VDC/280 mADualLong
SSS-35310-29L-D1Datasheet35 GHz+10 dBm29 dBi5° x 5°RH Circular+5 VDC/250 mADualLong
SSS-35310-29L-S1Datasheet35 GHz+10 dBm29 dBi5° x 5°RH Circular+5 VDC/250 mASingleLong
SSS-35315-22L-D1Datasheet35 GHz+15 dBm22 dBi12° x 12°RH Circular+5.5 VDC/250 mADualLong
SSS-35315-22L-S1Datasheet35 GHz+15 dBm22 dBi12° x 12°RH Circular+5 VDC/350 mASingleLong
SSS-35315-29L-D1Datasheet35 GHz+15 dBm29 dBi5° x 5°RH Circular+5 VDC/350 mADualLong
SSS-35315-29L-S1Datasheet35 GHz+15 dBm29 dBi5° x 5°RH Circular+5 VDC/350 mASingleLong
SSS-35320-22L-D1Datasheet35 GHz+20 dBm22 dBi12° x 12°RH Circular+5 VDC/650 mADualLong
SSS-35320-22L-S1Datasheet35 GHz+20 dBm22 dBi12° x 12°RH Circular+5 VDC/650 mASingleLong
SSS-35320-29L-D1Datasheet35 GHz+20 dBm29 dBi5° x 5°RH Circular+5 VDC/650 mADualLong
SSS-35320-29L-S1Datasheet35 GHz+20 dBm29 dBi5° x 5°RH Circular+5 VDC/650 mASingleLong
