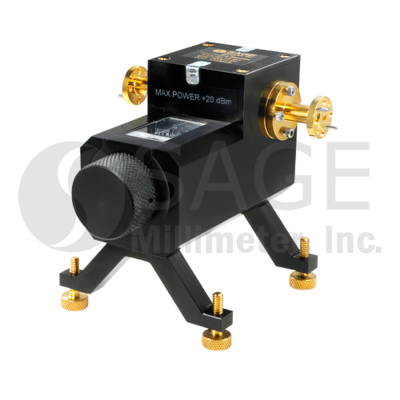

Direct Reading Attenuators

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyAttenuationReturn LossPower HandlingRF PortAttenuator Type
STA-60-06-D5Datasheet110 GHz170 GHz0 to 60 dB17 dB0.15 WWR-06 WaveguideDigital Direct Reading
STA-60-06-D1Datasheet110 GHz170 GHz0 to 60 dB0.05 WWR-06 WaveguideDirect Reading
STA-60-05-D5Datasheet140 GHz220 GHz0 to 60 dB17 dB0.15 WWR-05 WaveguideDigital Direct Reading
STA-60-05-D1Datasheet140 GHz220 GHz0 to 60 dB0.05 WWR-05 WaveguideDirect Reading
STA-60-04-D1Datasheet170 GHz260 GHz0 to 50 dB16 dB0.05 WWR-04 WaveguideDirect Reading
STA-60-04-D5Datasheet170 GHz260 GHz0 to 60 dB17 dB0.15 WWR-04 WaveguideDigital Direct Reading
STA-60-42-D1Datasheet18 GHz26.5 GHz0 to 60 dB0.05 WWR-42 WaveguideDirect Reading
STA-60-42-D5Datasheet18 GHz26.5 GHz0 to 60 dB16 dB0.15 WWR-42 WaveguideDigital Direct Reading
STA-60-34-D1Datasheet22 GHz33 GHz0 to 60 dB0.05 WWR-34 WaveguideDirect Reading
STA-60-03-D1Datasheet220 GHz325 GHz0 to 40 dB16 dB0.05 WWR-03 WaveguideDirect Reading
STA-60-03-D5Datasheet220 GHz330 GHz0 to 60 dB16 dB0.15 WWR-03 WaveguideDigital Direct Reading
STA-60-28-D1Datasheet26.5 GHz40 GHz0 to 60 dB0.05 WWR-28 WaveguideDirect Reading
STA-60-28-D5Datasheet26.5 GHz40 GHz0 to 60 dB17 dB0.15 WWR-28 WaveguideDigital Direct Reading
STA-60-22-D5Datasheet33 GHz50 GHz0 to 60 dB22 dB0.15 WWR-22 WaveguideDigital Direct Reading
STA-60-22-D1Datasheet33 GHz50 GHz0 to 60 dB0.05 WWR-22 WaveguideDirect Reading
STA-60-19-D5Datasheet40 GHz60 GHz0 to 60 dB22 dB0.15 WWR-19 WaveguideDigital Direct Reading
STA-60-19-D1Datasheet40 GHz60 GHz0 to 60 dB0.05 WWR-19 WaveguideDirect Reading
STA-60-15-D5Datasheet50 GHz75 GHz0 to 60 dB20 dB0.15 WWR-15 WaveguideDigital Direct Reading
STA-60-15-D1Datasheet50 GHz75 GHz0 to 60 dB0.05 WWR-15 WaveguideDirect Reading
STA-60-12-D5Datasheet60 GHz90 GHz0 to 60 dB20 dB0.15 WWR-12 WaveguideDigital Direct Reading
STA-60-12-D1Datasheet60 GHz90 GHz0 to 60 dB0.05 WWR-12 WaveguideDirect Reading
STA-60-10-D5Datasheet75 GHz110 GHz0 to 60 dB20 dB0.15 WWR-10 WaveguideDigital Direct Reading
STA-60-10-D1Datasheet75 GHz110 GHz0 to 60 dB0.05 WWR-10 WaveguideDirect Reading
STA-60-08-D5Datasheet90 GHz140 GHz0 to 60 dB18 dB0.15 WWR-08 WaveguideDigital Direct Reading
STA-60-08-D1Datasheet90 GHz140 GHz0 to 60 dB0.05 WWR-08 WaveguideDirect Reading

備考

Remarks
