Dielectric Resonator Oscillators

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetCenter Frequency [GHz]Output Power [dBm]Mechanical Tuning Range [MHz]Phase Noise [dBc/Hz]Spurious [dBc]Harmonics [dBc]Bias [VDC/mA]RF Port
SOD-10302217-SF-S2-3Datasheet10.2+17±100-100 @ 100 KHz Offset-75-25+12 / 70SMA (F)
SOD-10304117-SF-S1Datasheet10.25+17±20-90 @ 100 KHz Offset-75-20+12 / 100SMA (F)
SOD-10302114-SF-S4Datasheet10+14±10-70 @ 100 KHz Offset-80-20+8 / 40SMA (F)
SOD-15301113-SF-S2Datasheet15+13±5-90 @ 100 KHz Offset-75-25+12 / 100SMA (F)

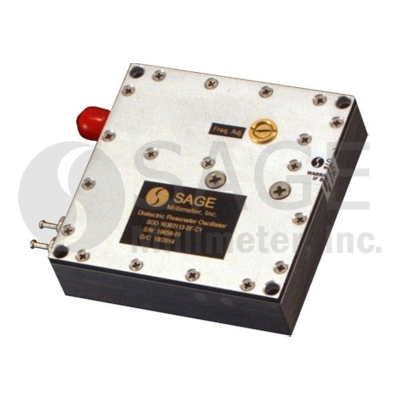

SOD-16302213-SF-C1Datasheet16+13±150-80 @ 10 KHz Offset-75-25+15 / 150SMA (F)
SOD-17304117-SF-S1Datasheet17+17±20-90 @ 100 KHz Offset-75-25+12 / 200SMA (F)
SOD-20301215-SF-S1Datasheet20+15±50-85 @ 10 KHz Offset-75-20+12 / 125SMA (F)
SOD-22301215-SF-S1Datasheet22+15±50-85 @ 10 KHz Offset-65-20+12 / 125SMA (F)
SOD-24301215-SF-S1Datasheet24+15±50-80 @ 10 KHz Offset-65-10+12 / 125SMA (F)

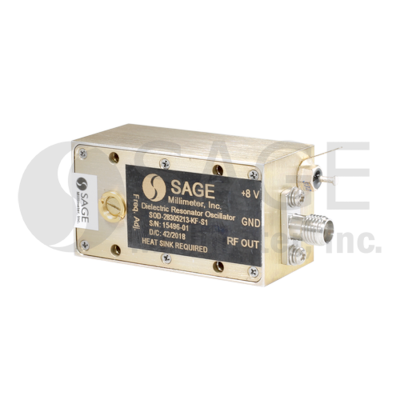

SOD-28305213-KF-S1Datasheet28.25+13±150-95 @ 100 KHz Offset-75-25+8 / 2602.92 mm (F)
SOD-28303216-KF-S1Datasheet28+16±25-100 @ 100 KHz Offset-75-40+8 / 3502.92 mm (F)
SOD-03302113-SF-C2Datasheet3+13±10-95 @ 100 KHz Offset-75-20+12 / 200SMA (F)
SOD-30303226-KF-S1Datasheet30+26±150-100 @ 100 KHz Offset-75-20+9 / 10002.92 mm (F)
SOD-34301210-22-S1Datasheet34+10±50-95 @ 100 KHz Offset-75-25+8 / 500WR-22 Waveguide

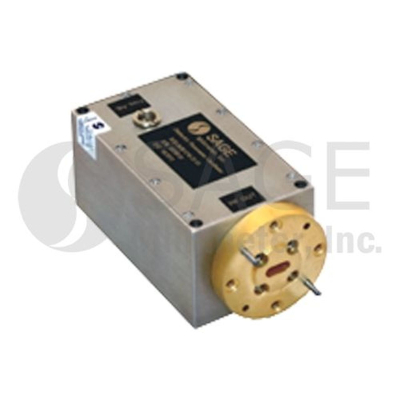

SOD-37301213-22-S1Datasheet37+13±50-95 @ 100 KHz Offset-75-25+8 / 500WR-22 Waveguide
SOD-04304115-SF-C2Datasheet4+15±20-100 @ 100 KHz Offset-75-20+15 / 200SMA (F)
SOD-06304113-SF-S1Datasheet5.92+13 Min±20-90 @ 100 KHz Offset-75-20+12 / 50SMA (F)
SOD-05301118-SF-S1Datasheet5+18±5-90 @ 10 KHz Offset-70-20+12 / 180SMA (F)
SOD-96202217-SF-S1Datasheet9.6+17±100-100 @ 100 KHz Offset-75-25+12 / 70SMA (F)
SOD-09302113-SF-C2Datasheet9+13±20-80 @ 100 KHz Offset-75-25+12 / 40SMA (F)
