Compact Waveguide Mode Transitions

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetWaveguide Size 1Waveguide Size 2Transition TypeInsertion Length
SWT-100110-SB-C-QCDatasheet0.100" Square Waveguide0.110" Circular WaveguideMode0.7"

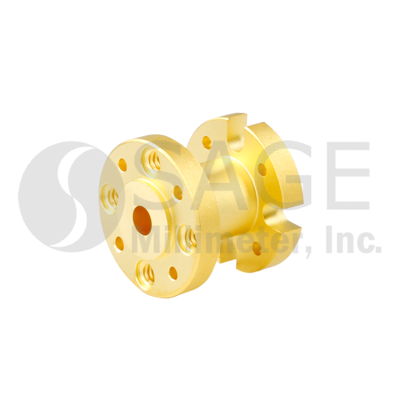

SWT-122141-SB-C-QCDatasheet0.122" Square Waveguide0.141" Circular WaveguideMode0.7"
SWT-188219-SB-C-QCDatasheet0.188" Square Waveguide0.219" Circular WaveguideMode0.7"
SWT-224219-SA-C-QCDatasheet0.224" Square Waveguide0.219" Circular WaveguideMode0.75"
SWT-280250-SA-C-QCDatasheet0.280" Square Waveguide0.250" Dia Circular WaveguideMode0.70"
SWT-280315-SA-C-QCDatasheet0.280" Square Waveguide0.315" Dia Circular WaveguideMode0.70"

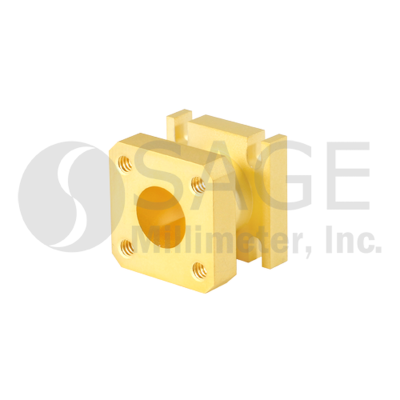

SWT-280328-SA-C-QCDatasheet0.280" Square Waveguide0.328" Dia Circular WaveguideMode0.65"
SWT-280358-SA-C-QCDatasheet0.280" Square Waveguide0.358" Dia Circular WaveguideMode0.65"
SWT-340315-SA-C-QCDatasheet0.340" Square Waveguide0.315" Dia Circular WaveguideMode0.50"
SWT-340315-SA-C-QC-599Datasheet0.340" Square Waveguide0.315" Dia Circular WaveguideMode0.70"
SWT-340328-SA-C-QCDatasheet0.340" Square Waveguide0.328" Dia Circular WaveguideMode0.50"

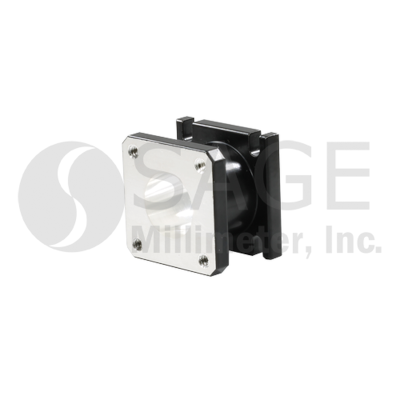

SWT-622688-SA-C-QCDatasheet0.622" Square Waveguide0.688" Dia Circular WaveguideMode1"
