〔電力分配器〕Coaxial Power Dividers

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]WaysInsertion Loss [dB]Port Isolation [dB]Return Loss [dB]Impedance [Ohms]RF Connectors
SCS-0131831215-SFSF-22Datasheet11821.6151350SMA (F)
SCS-0131833015-SFSF-42Datasheet11843151150SMA (F)
SCS-0131834815-SFSF-82Datasheet11884.8151050SMA (F)
SCS-0132732616-SFSF-22Datasheet12722.6161250SMA (F)
SCS-0134035014-KFKF-42Datasheet1404514950K (F)
SCS-0134031215-KFKF-22Datasheet14021.2151150K (F)
SCS-1032033416-SFSF-162Datasheet1020163.4161150SMA (F)
SCS-1034032615-KFKF-82Datasheet104082.3151050K (F)
SCS-1231831616-SFSF-82Datasheet12.41881.6161150SMA (F)
SCS-1231833515-SFSF-162Datasheet1218163.5151050SMA (F)
SCS-1231831018-SFSF-42Datasheet121841181250SMA (F)
SCS-1231830819-SFSF-22Datasheet121820.8191450SMA (F)
SCS-1534032916-KFKF-42Datasheet154042.9161250K (F)
SCS-1832732815-SFSF-162Datasheet1826.5162.8151050SMA (F)
SCS-1832731616-SFSF-42Datasheet1826.541.6161250SMA (F)
SCS-1832732216-SFSF-82Datasheet1826.582.2161150SMA (F)
SCS-1832730618-SFSF-22Datasheet1826.520.6181550SMA (F)
SCS-1834032116-KFKF-82Datasheet184082.1161050K (F)

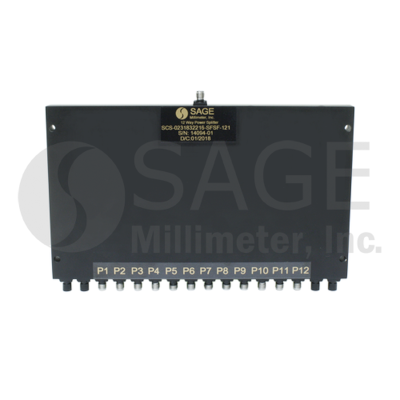

SCS-0231832216-SFSF-121Datasheet218122.2181450SMA (F)
SCS-0231835015-SFSF-162Datasheet21816515950SMA (F)
SCS-0231831816-SFSF-42Datasheet21841.8161250SMA (F)
SCS-0231833515-SFSF-82Datasheet21883.5151050SMA (F)
SCS-0231831016-SFSF-22Datasheet21821161450SMA (F)
SCS-0234033015-KFKF-42Datasheet2404315950K (F)
SCS-0234031815-KFKF-22Datasheet24021.8151050K (F)
SCS-2734031816-KFKF-42Datasheet26.54041.8161250K (F)
SCS-2734032516-KFKF-82Datasheet26.54082.5161050K (F)
SCS-2734030916-KFKF-22Datasheet26.54020.9161250K (F)
SCS-0331232815-SFSF-162Datasheet312.4162.8151050SMA (F)
SCS-0532732815-SFSF-42Datasheet526.542.8151050SMA (F)
SCS-0534032015-KFKF-42Datasheet54042151050K (F)
SCS-0631833815-SFSF-162Datasheet618163.8151050SMA (F)
SCS-0632733015-SFSF-162Datasheet626.516315950SMA (F)
SCS-0632732016-SFSF-82Datasheet626.582161050SMA (F)
SCS-0634031516-KFKF-42Datasheet64041.5161250K (F)
SCS-0634032615-KFKF-82Datasheet64082.6151050K (F)
SCS-0831233416-SFSF-162Datasheet812.4163.4161150SMA (F)
SCS-0831230818-SFSF-42Datasheet812.440.8181450SMA (F)
SCS-0831231418-SFSF-82Datasheet812.481.4181150SMA (F)
SCS-0831230520-SFSF-22Datasheet812.420.5201550SMA (F)
