Coaxial Matched Termination Loads

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum FrequencyMaximum Frequency [GHz]Return Loss [dB]Impedance [Ohms]Power Handling [W]Connector

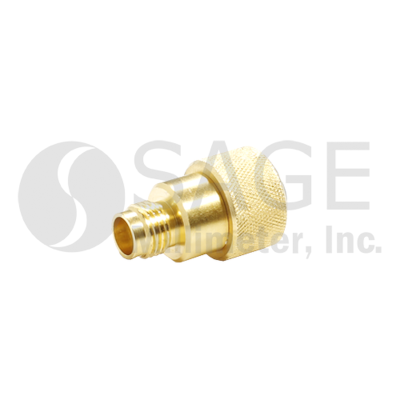

STQ-CM-2F27-U2DatasheetDC4035500.52.4 mm Female

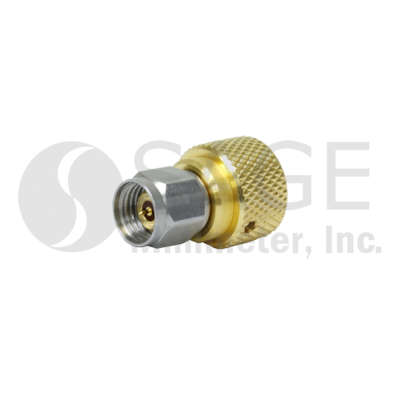

STQ-CM-2M27-U2DatasheetDC40Multiple500.52.4 mm Male
STQ-CM-KF27-U2DatasheetDC4030500.52.92 mm Female
STQ-CM-KM27-U2DatasheetDC40Multiple500.52.92 mm Male
STQ-CM-VF27-U2DatasheetDC6735500.51.85 mm Female

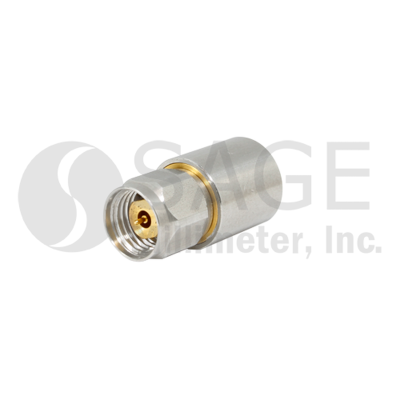

STQ-CM-VM27-U2DatasheetDC6735500.51.85 mm Male
