Coaxial Low-Pass Filters

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum Passband FrequencyMaximum Passband FrequencyMinimum Rejection FrequencyMaximum Rejection FrequencyRejectionInsertion LossPassband Return LossImpedancePower Handling
SCF-17327330-KFKM-L1DatasheetDC16.5 GHz26.5 GHz40 GHz30 dB0.6 dB15 dB50 Ohms1 W
SCF-20323330-KFKM-L3DatasheetDC20 GHz23 GHz40 GHz30 dB1.5 dB-50 Ohms1 W
SCF-21333330-KFKM-L1DatasheetDC21 GHz33 GHz50 GHz30 dB0.6 dB15 dB50 Ohms1 W
SCF-25340330-KFKM-L1DatasheetDC25 GHz40 GHz60 GHz30 dB0.6 dB15 dB50 Ohms1 W
SCF-26328335-SFSF-L3DatasheetDC26 GHz28 GHz40 GHz35 dB2.5 dB-50 Ohms1 W
SCF-26328335-KFKM-L3DatasheetDC26 GHz28 GHz40 GHz35 dB2.5 dB-50 Ohms1 W
SCF-30350330-KFKM-L1DatasheetDC30 GHz50 GHz75 GHz30 dB1.0 dB15 dB50 Ohms1 W

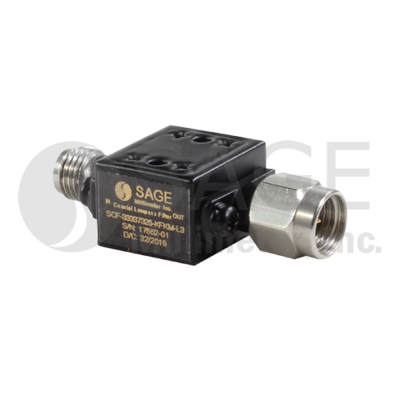

SCF-33337325-KFKM-L3DatasheetDC33 GHz37 GHz50 GHz25 dB2.0 dB10 dB50 Ohms10 W
SCF-36360330-KFKM-L1DatasheetDC36 GHz60 GHz90 GHz30 dB1.0 dB15 dB50 Ohms1 W
SCF-55375330-2F2M-L1DatasheetDC50 GHz75 GHz110 GHz30 dB1.5 dB15 dB50 Ohms1 W

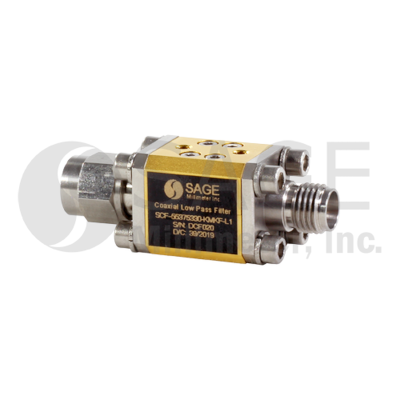

SCF-55375330-KFKM-L1DatasheetDC50 GHz75 GHz110 GHz30 dB1.5 dB15 dB50 Ohms1 W
