Low Noise Amplifiers

メーカー名:Eravant
低ノイズアンプ(LNA)は、最先端のPHEMTまたはMMICデバイス、薄膜技術、および改善されたDC電源を利用して設計および製造され、広い動作帯域幅と優れたゲインフラットネスで低ノイズ性能を実現します。
標準モデルは汎用アプリケーションに焦点を当てていますが、異なる周波数範囲、ゲイン、ノイズ指数を持つ追加モデルがWebサイトにリストされています。
ユーザーの特定のニーズを満たすカスタムデザインも提供されます。

Low noise amplifiers, or LNAs, are designed and manufactured by utilizing the most advanced PHEMT or MMIC devices, thin film technologies, and an improved DC power supply to deliver a low noise performance with broad operating bandwidths and good gain flatness. While standard models focus on general purpose applications, additional models with differing frequency ranges, gains and noise figures are listed on the website. Custom designs are also offered to meet any user’s specific needs.

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyGainNoise FigureP1dBInput Return LossOutput Return LossDC BiasRF Input/Output
SBL-0322031530-SFSF-E3Datasheet0.3 GHz20 GHz15 dB3.0 dB+10 dBm10 dB10 dB+12 VDC/70 mASMA (F)
SBL-0131833025-SFSF-E3Datasheet1 GHz18 GHz30 dB2.5 dB+20 dBm13 dB13 dB+12 VDC/250 mASMA (F)
SBL-1141741365-0606-E1Datasheet110 GHz170 GHz13 dB6.5 dB-5 dBm6 dB6 dB+8 VDC/40 mAWR-06 Waveguide
SBL-1141741860-0606-EIDatasheet110 GHz170 GHz18 dB6.0 dB-5 dBm6 dB6 dB+3 VDC/30 mAWR-06 Waveguide
SBL-1141743065-0606-E1Datasheet110 GHz170 GHz30 dB6.5 dB-5 dBm6 dB6 dB+8 VDC/70 mAWR-06 Waveguide
SBL-1732333025-KFKF-S1Datasheet17 GHz23 GHz30 dB2.5 dB+10 dBm10 dB10 dB+8 VDC/200 mA2.92 mm (F)
SBL-1832732025-KFKF-S1Datasheet18 GHz26.5 GHz20 dB2.5 dB+18 dBm10 dB10 dB+8 VDC/130 mA2.92 mm (F)
SBL-1832733025-KFKF-S1Datasheet18 GHz26.5 GHz30 dB2.5 dB+10 dBm10 dB10 dB+8 VDC/200 mA2.92 mm (F)
SBL-1832734025-KFKF-S1Datasheet18 GHz26.5 GHz40 dB2.5 dB+18 dBm10 dB10 dB+8 VDC/250 mA2.92 mm (F)
SBL-1832735025-KFKF-S1Datasheet18 GHz26.5 GHz50 dB2.5 dB+15 dBm10 dB10 dB+8 VDC/230 mA2.92 mm (F)
SBL-1834034030-2F2F-S1Datasheet18 GHz40 GHz40 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/200 mA2.4 mm (F)
SBL-1834034030-KFKF-S1Datasheet18 GHz40 GHz40 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/200 mA2.92 mm (F)
SBL-1834034038-2F2F-E3Datasheet18 GHz40 GHz40 dB4.0 dB+18 dBm10 dB10 dB+12 VDC/300 mA2.4 mm (F)
SBL-1834034038-KFKF-E3Datasheet18 GHz40 GHz40 dB4.0 dB+18 dBm10 dB10 dB+12 VDC/300 mA2.92 mm (F)

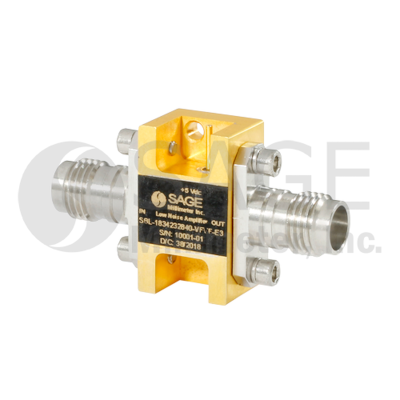

SBL-1834232840-VFVF-E3Datasheet18 GHz42 GHz28 dB4.0 dB+15 dBm10 dB10 dB+5 VDC/240 mA1.85 mm (F)
SBL-1834232840-KFKF-E3Datasheet18 GHz42 GHz28 dB4.0 dB+15 dBm10 dB10 dB+5 VDC/210 mA2.92 mm (F)
SBL-1834232840-KFKF-E3-UDatasheet18 GHz42 GHz28 dB4.0 dB+15 dBm10 dB10 dB+5 VDC/240 mA2.92 mm (F)
SBL-1834432840-KFKF-E3Datasheet18 GHz44 GHz28 dB4.0 dB+15 dBm10 dB10 dB+12 VDC/250 mA2.92 mm (F)
SBL-2034433040-2F2F-S1Datasheet20 GHz44 GHz30 dB4.0 dB+15 dBm10 dB7 dB+8 VDC/160 mA2.4 mm (F)
SBL-2434434025-2F2F-E3Datasheet24.25 GHz43.5 GHz38 dB (Min), 43 dB (Max)+21 dBm10 dB10 dB+12 VDC/300 mA2.4 mm (F)
SBL-2434235035-KFKF-E3Datasheet24 GHz42 GHz50 dB3.5 dB+21 dBm10 dB10 dB+12 VDC/400 mA2.92 mm (F)
SBL-2734031840-KFKF-E3Datasheet26.5 GHz40 GHz18 dB4.0 dB+11 dBm10 dB10 dB+5 VDC/70 mA2.92 mm (F)
SBL-2634032030-KF28-E1Datasheet26.5 GHz40 GHz20 dB3.0 dB+8 dBm10 dB10 dB+8 VDC/70 mA2.92 mm (F) Connector/WR-28 Uni-Guide™ Waveguide
SBL-2634032030-2828-E1Datasheet26.5 GHz40 GHz20 dB3.0 dB+8 dBm10 dB10 dB+8 VDC/66 mAWR-28 Uni-Guide™ Waveguide
SBL-2634032030-2828-S1Datasheet26.5 GHz40 GHz20 dB3.0 dB+8 dBm10 dB10 dB+8 VDC/66 mAWR-28 Waveguide
SBL-2634032030-KFKF-S1Datasheet26.5 GHz40 GHz20 dB3.0 dB+8 dBm10 dB10 dB+8 VDC/70 mA2.92 mm (F)
SBL-2634032030-KF28-S1Datasheet26.5 GHz40.0 GHz20 dB3.0 dB+8 dBm10 dB10 dB+8 VDC/66 mA2.92 mm (F)/WR-28 Waveguide
SBL-2634033030-KF28-E1Datasheet26.5 GHz40 GHz30 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/150 mA2.92 mm (F) Connector/WR-28 Uni-Guide™ Waveguide
SBL-2634033030-2828-E1Datasheet26.5 GHz40 GHz30 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/150 mAWR-28 Uni-Guide™ Waveguide
SBL-2634033030-KFKF-S1Datasheet26.5 GHz40 GHz30 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/150 mA2.92 mm (F)
SBL-2634033030-KF28-S1Datasheet26.5 GHz40.0 GHz30 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/150 mA2.92 mm (F)/WR-28 Waveguide
SBL-2734034025-2F2F-E3Datasheet26.5 GHz40 GHz40 dB2.5 dB+10 dBm10 dB10 dB+12 VDC/200 mA2.4 mm (F)
SBL-2734034025-KFKF-E3Datasheet26.5 GHz40 GHz40 dB2.5 dB+10 dBm10 dB10 dB+12 VDC/200 mA2.92 mm (F)
SBL-2733533530-KF28-E1Datasheet27 GHz35 GHz35 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/150 mA2.92 mm (F) Connector/WR-28 Uni-Guide™ Waveguide
SBL-2733533530-2828-E1Datasheet27 GHz35 GHz35 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/150 mAWR-28 Uni-Guide™ Waveguide
SBL-2733533530-28KF-E1Datasheet27 GHz35 GHz35 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/135 mAWR-28 Uni-Guide™ Waveguide/2.92 mm (F) Connector
SBL-2733533530-KFKF-S1Datasheet27 GHz35 GHz35 dB3.0 dB-15 dBm10 dB10 dB+8 VDC/150 mA2.92 mm (F)
SBL-2733533530-2828-S1Datasheet27 GHz35 GHz35 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/135 mAWR-28 Waveguide
SBL-3333733030-2828-E1Datasheet33 GHz37 GHz30 dB3.0 dB+10 dBm10 dB15 dB+8 VDC/150 mAWR-28 Uni-Guide™ Waveguide
SBL-3333733030-28KF-E1Datasheet33 GHz37 GHz30 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/150 mAWR-28 Uni-Guide™ Waveguide/2.92 mm (F) Connector
SBL-3333733030-KFKF-S1Datasheet33 GHz37 GHz30 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/135 mA2.92 mm (F)
SBL-3333733030-2828-S1Datasheet33 GHz37 GHz30 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/150 mAWR-28 Waveguide
SBL-3333733640-2828-S1-KDatasheet33 GHz37 GHz36 dB4.0 dB+12 dBm10 dB10 dB+8 VDC/150 mAWR-28 Waveguide
SBL-3333734030-2828-E1Datasheet33 GHz37 GHz40 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/205 mAWR-28 Uni-Guide™ Waveguide
SBL-3333734030-28KF-E1Datasheet33 GHz37 GHz40 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/205 mAWR-28 Uni-Guide™ Waveguide/2.92 mm (F) Connector
SBL-3333734030-KFKF-S1Datasheet33 GHz37 GHz40 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/205 mA2.92 mm (F)
SBL-3333734030-2828-S1Datasheet33 GHz37 GHz40 dB3.0 dB+10 dBm10 dB10 dB+8 VDC/205 mAWR-28 Waveguide
SBL-3335031550-2222-E1Datasheet33 GHz50 GHz25 dB5.0 dB+12 dBm10 dB15 dB+8 VDC/120 mAWR-22 Uni-Guide™ Waveguide
SBL-3335031550-2F2F-S1Datasheet33 GHz50 GHz15 dB5.0 dB+13 dBm10 dB15 dB+8 VDC/120 mA2.4 mm (F)
SBL-3335033040-2F22-E1Datasheet33 GHz50 GHz30 dB4.0 dB+12 dBm6 dB8 dB+8 VDC/160 mA2.4 mm (F) Connector/WR-22 Uni-Guide™ Waveguide
SBL-3335033040-2222-E1Datasheet33 GHz50 GHz30 dB4.0 dB+12 dBm6 dB8 dB+8 VDC/160 mAWR-22 Uni-Guide™ Waveguide
SBL-3335033040-2F22-S1Datasheet33 GHz50 GHz30 dB4.0 dB+12 dBm10 dB7 dB+8 VDC/160 mA2.4mm (F) Connector/WR-22 WG
SBL-3335033040-2F2F-S1Datasheet33 GHz50 GHz30 dB4.0 dB+12 dBm10 dB7 dB+8 VDC/160 mA2.4 mm (F)
SBL-3335033040-2222-S1Datasheet33 GHz50 GHz30 dB4.0 dB+12 dBm10 dB7 dB+8 VDC/160 mAWR-22 Waveguide
SBL-3634632535-2F2F-S1Datasheet36 GHz45.5 GHz25 dB3.5 dB+10 dBm10 dB10 dB+8 VDC/100 mA2.4 mm (F)
SBL-3735232445-1919-E1Datasheet37 GHz51.5 GHz24 dB4.5 dB+12 dBm8 dB8 dB+6 VDC/130 mAWR-19 Uni-Guide™ Waveguide
SBL-3735231530-1919-E1Datasheet37 GHz52 GHz15 dB3 dB+6 dBm8 dB8 dB+6 VDC/60 mAWR-19 Uni-Guide™ Waveguide
SBL-4034533540-2F2F-S1Datasheet40 GHz45 GHz35 dB4.0 dB8 dBm8 dB8 dB+8 VDC/100 mA2.4 mm (F)
SBL-4036033080-VF19-E1Datasheet40 GHz60 GHz30 dB6.0 dB+16 dBm10 dB10 dB+8 VDC/400 mA1.85 mm (F) Connector/WR-19 Uni-Guide™ Waveguide
SBL-4036033080-1919-E1Datasheet40 GHz60 GHz30 dB6.0 dB+16 dBm6 dB6 dB+8 VDC/400 mAWR-19 Uni-Guide™ Waveguide
SBL-4036033080-VFVF-S1Datasheet40 GHz60 GHz30 dB6.0 dB+16 dBm6 dB6 dB+8 VDC/400 mA1.85 mm (F)
SBL-4036033080-1919-S1Datasheet40 GHz60 GHz30 dB6.0 dB+16 dBm6 dB6 dB+8 VDC/400 mAWR-19 Waveguide
SBL-4036035060-1919-E1Datasheet40 GHz60 GHz50 dB6.0 dB+16 dBm10 dB10 dB+8 VDC/450 mAWR-19 Uni-Guide™ Waveguide
SBL-4036035060-VFVF-S1Datasheet40 GHz60 GHz50 dB6.0 dB+16 dBm8 dB10 dB+8 VDC/450 mA1.85 mm (F)
SBL-4036035060-1919-S1Datasheet40 GHz60 GHz50 dB6.0 dB+16 dBm8 dB10 dB+8 VDC/450 mAWR-19 Waveguide
SBL-4735232445-1919-E1Datasheet47 GHz51.5 GHz24 dB4.5 dB+12 dBm8 dB8 dB+6 VDC/130 mAWR-19 Uni-Guide™ Waveguide
SBL-4735232445-192F-S1Datasheet47 GHz51.5 GHz24 dB4.5 dB+12 dBm8 dB8 dB+6 VDC/130 mAWR-19 WG/2.4mm (F) Connector
SBL-4735232445-1919-S1Datasheet47 GHz51.5 GHz24 dB4.5 dB+12 dBm8 dB8 dB+6 VDC/130 mAWR-19 Waveguide
SBL-5037033550-VFVF-S1Datasheet50 GHz70 GHz35 dB5.0 dB+11 dBm8 dB8 dB+8 VDC/150 mA1.85 mm (F)
SBL-5037531850-1515-E1Datasheet50 GHz75 GHz18 dB5.0 dB+11 dBm8 dB8 dB+8 VDC/100 mAWR-15 Waveguide
SBL-5037531850-1515-S1Datasheet50 GHz75 GHz18 dB5.0 dB+11 dBm8 dB8 dB+8 VDC/100 mAWR-15 Waveguide
SBL-5037533550-1515-E1Datasheet50 GHz75 GHz35 dB5.0 dB+11 dBm8 dB8 dB+8 VDC/150 mAWR-15 Waveguide
SBL-5037533550-1515-E1-ETDatasheet50 GHz75 GHz35 dB5.0 dB+11 dBm8 dB8 dB+8 VDC/150 mAWR-15 Waveguide
SBL-5037533550-1515-S1Datasheet50 GHz75 GHz35 dB5.0 dB+11 dBm8 dB8 dB+8 VDC/150 mAWR-15 Waveguide
SBL-5037533555-1F15-E1-WCDatasheet50 GHz75 GHz35 dB5.5 dB+11 dBm8 dB8 dB+8 VDC/150 mA1 mm (F) Connector/WR-15 Waveguide
SBL-5037535050-1515-E1Datasheet50 GHz75 GHz50 dB5.0 dB+11 dBm8 dB8 dB+8 VDC/300 mAWR-15 Waveguide
SBL-5037535055-1F15-E1-WCDatasheet50 GHz75 GHz50 dB5.5 dB+11 dBm8 dB8 dB+8 VDC/300 mA1 mm (F) Connector/WR-15 Waveguide
SBL-5039532270-1F1F-S1Datasheet50 GHz95 GHz22 dB7.0 dB+11 dBm10 dB10 dB+8 VDC/300 mA1 mm (F) Connector
SBL-5436631850-1515-E1Datasheet54 GHz66 GHz18 dB5.0 dB+10 dBm8 dB8 dB+8 VDC/100 mAWR-15 Waveguide
SBL-5436631850-1515-S1Datasheet54 GHz66 GHz18 dB5.0 dB+10 dBm8 dB8 dB+8 VDC/100 mAWR-15 Waveguide
SBL-5539531260-1212-E1Datasheet55 GHz95 GHz10 dB6.0 dB+10 dBm10 dB10 dB+8 VDC/150 mAWR-12 Waveguide
SBL-5539531260-1212-S1Datasheet55 GHz95 GHz10 dB6.0 dB+12 dBm10 dB10 dB+8 VDC/150 mAWR-12 Waveguide
SBL-5539532560-1212-E1Datasheet55 GHz95 GHz25 dB6.0 dB+12 dBm10 dB10 dB+8 VDC/300 mAWR-12 Waveguide
SBL-5539532560-1212-S1Datasheet55 GHz95 GHz25 dB6.0 dB+12 dBm10 dB10 dB+8 VDC/300 mAWR-12 Waveguide
SBL-6039032550-1212-E1Datasheet60 GHz90 GHz25 dB5.0 dB+3 dBm8 dB8 dB+8 VDC/30 mAWR-12 Waveguide
SBL-6039032550-1212-S1Datasheet60 GHz90 GHz25 dB5.0 dB+3 dBm8 dB8 dB+8 VDC/30 mAWR-12 Waveguide
SBL-6039032560-1F12-E1-WCDatasheet60 GHz90 GHz25 dB6.0 dB+3 dBm8 dB8 dB+8 VDC/30 mA1 mm (F) Connector/WR-12 Waveguide
SBL-6039034050-1212-E1Datasheet60 GHz90 GHz40 dB5.0 dB+10 dBm8 dB8 dB+8 VDC/150 mAWR-12 Waveguide
SBL-6039034050-1212-S1Datasheet60 GHz90 GHz40 dB5.0 dB+10 dBm8 dB8 dB+8 VDC/150 mAWR-12 Waveguide
SBL-6531042250-1010-E1Datasheet65 GHz100 GHz22 dB5.0 dB-3 dBm8 dB8 dB+8 VDC/30 mAWR-10 Waveguide
SBL-6531241550-1010-E1Datasheet65 GHz120 GHz15 dB5 dB-5 dBm10 dB10 dB+8 VDC/35 mAWR-10 Waveguide
SBL-6531241550-1010-S1Datasheet65 GHz120 GHz15 dB5 dB-5 dBm10 dB10 dB+8 VDC/35 mAWR-10 Waveguide
SBL-6531243550-1010-E1Datasheet35 GHz120 GHz35 dB5 dB-5 dBm10 dB10 dB+8 VDC/65 mAWR-10 Waveguide
SBL-6531243550-1010-S1Datasheet35 GHz120 GHz35 dB5 dB-5 dBm10 dB10 dB+8 VDC/65 mAWR-10 Waveguide
SBL-6731241550-1010-E2Datasheet67 GHz116 GHz15 dB5.0 dB0 dBm7 dB7 dB+5 VDC/40 mAWR-10 Waveguide
SBL-7138632040-1212-E1Datasheet71 GHz86 GHz20 dB4.0 dB-+8 VDC/30 mAWR-12 Waveguide
SBL-7138632040-1212-S1Datasheet71 GHz86 GHz20 dB4.0 dB+2 dBm6 dB6 dB+8 VDC/30 mAWR-12 Waveguide
SBL-7138633540-1212-E1Datasheet71 GHz86 GHz35 dB4.0 dB+5 dBm6 dB6 dB+8 VDC/150 mAWR-12 Waveguide
SBL-7138633540-1212-S1Datasheet71 GHz86 GHz35 dB4.0 dB+5 dBm6 dB6 dB+8 VDC/150 mAWR-12 Waveguide
SBL-7531043550-1010-E1Datasheet75 GHz100 GHz35 dB5.0 dB-5 dBm6 dB8 dB+8 VDC/100 mAWR-10 Waveguide
SBL-7531142050-1010-E1Datasheet75 GHz110 GHz20 dB5.0 dB+2 dBm6 dB6 dB+8 VDC/30 mAWR-10 Waveguide
SBL-7531142050-1010-S1Datasheet75 GHz110 GHz20 dB5.0 dB+2 dBm6 dB6 dB+8 VDC/30 mAWR-10 Waveguide
SBL-7531142060-1F10-E1-WCDatasheet75 GHz110 GHz20 dB6.0 dB+2 dBm6 dB6 dB+8 VDC/30 mA1 mm (F) Connector/WR-10 Waveguide
SBL-7531143060-1010-E1Datasheet75 GHz110 GHz30 dB6.0 dB-5 dBm10 dB10 dB+8 VDC/80 mAWR-10 Waveguide
SBL-7531143550-1010-E1Datasheet75 GHz110 GHz35 dB5.0 dB-5 dBm6 dB8 dB+8 VDC/100 mAWR-10 Waveguide
SBL-7531143550-1010-E1-ETDatasheet75 GHz110 GHz35 dB5.0 dB-5 dBm6 dB8 dB+8 VDC/100 mAWR-10 Waveguide
SBL-7531143550-101F-E1-WCDatasheet75 GHz110 GHz35 dB5.0 dB-5 dBm6 dB6 dB+8 VDC/100 mA
SBL-7531143550-1010-S1Datasheet75 GHz110 GHz35 dB5.0 dB-5 dBm6 dB8 dB+8 VDC/100 mAWR-10 Waveguide
SBL-7539032540-1010-E1Datasheet75 GHz90 GHz25 dB4.0 dB+2 dBm8 dB8 dB+8 VDC/30 mAWR-10 Waveguide
SBL-7539032540-1010-S1Datasheet75 GHz90 GHz25 dB4.0 dB+2 dBm8 dB8 dB+8 VDC/30 mAWR-10 Waveguide
SBL-7539032540-1212-S1Datasheet75 GHz90 GHz25 dB4.0 dB+2 dBm6 dB6 dB+8 VDC/30 mAWR-12 Waveguide
SBL-8031042540-1010-E1Datasheet80 GHz100 GHz25 dB4.0 dB+2 dBm6 dB8 dB+8 VDC/30 mAWR-10 Waveguide
SBL-8031042540-1010-S1Datasheet80 GHz100 GHz25 dB4.0 dB+2 dBm6 dB8 dB+8 VDC/30 mAWR-10 Waveguide
SBL-9031142250-1010-E1Datasheet90 GHz110 GHz22 dB5.0 dB-5 dBm8 dB6 dB+8 VDC/50 mAWR-10 Waveguide
SBL-9031142250-1010-S1Datasheet90 GHz110 GHz22 dB5.0 dB-5 dBm8 dB6 dB+8 VDC/50 mAWR-10 Waveguide
SBL-9531441565-0808-E1Datasheet95 GHz145 GHz15 dB6.5 dB-5 dBm10 dB10 dB+8 VDC/40 mAWR-08 Waveguide
SBL-9531443565-0808-E1Datasheet95 GHz145 GHz35 dB6.5 dB-5 dBm10 dB10 dB+8 VDC/80 mAWR-08 Waveguide
SBL-0131832630-SFSF-I1Datasheet1 GHz18 GHz28 dB2.5 dB+15 dBm7 dB7 dB+12 VDC/160 mASMA (F)

備考

Remarks
