Coaxial Isolators and Circulators

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossIsolationReturn LossForward Power HandlingImpedanceRF Input and Output
SNC-1832731614-KFKFKF-C7Datasheet18.0 GHz26.5 GHz1.6 dB14 dB12 dB10 W50 Ohms2.92 mm (F) Connectors
SNC-1832731614-SFSFSF-C7Datasheet18.0 GHz26.5 GHz1.6 dB14 dB14 dB10 W50 OhmsSMA (F) Connectors
SNC-1832731515-KFKF-I7Datasheet18.0 GHz26.5 GHz1.5 dB15 dB14 dB10 W50 Ohms2.92 mm (F) Connectors
SNC-1832731515-SFSF-I7Datasheet18.0 GHz26.5 GHz1.5 dB15 dB14 dB10 W50 OhmsSMA (F) Connectors
SNC-2233331515-KFKFKF-C7Datasheet22 GHz33 GHz1.6 dB14 dB14 dB10 W50 Ohms2.92 mm (F) Connectors

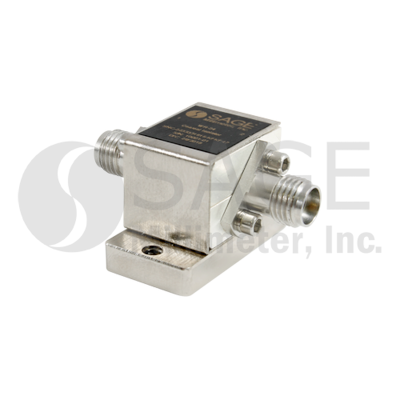

SNC-2233331615-KFKF-I7Datasheet22 GHz33 GHz1.6 dB15 dB14 dB10 W50 Ohms2.92 mm (F) Connectors
SNC-2734031614-KFKFKF-C7Datasheet26.5 GHz40.0 GHz1.6 dB14 dB13 dB10 W50 Ohms2.92 mm (F) Connectors
SNC-2734031614-KFKF-I7Datasheet26.5 GHz40.0 GHz1.6 dB14 dB12 dB10 W50 Ohms2.92 mm (F) Connectors

備考

Remarks
