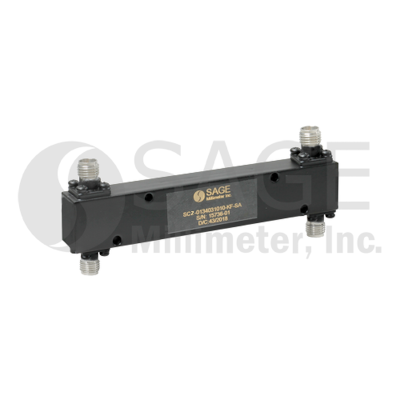

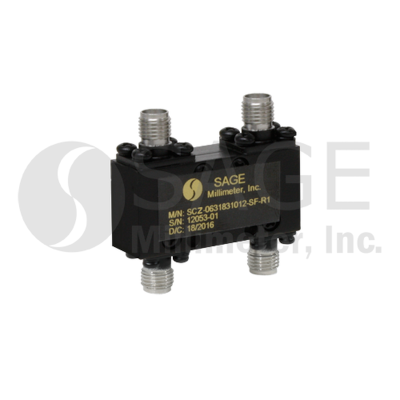

Coaxial Hybrid Couplers

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Coupling [dB]Return Loss [dB]Impedance [Ohms]RF Ports
SCZ-0234031009-KFKF-43Datasheet2402.531450K (F)
SCZ-1034031009-KFKF-43Datasheet10402.631150K (F)
SCZ-1834031209-KFKF-43Datasheet1840231450K (F)
SCZ-2734031209-KFKF-43Datasheet26.540231150K (F)
SCZ-1032731009-KFKF-43Datasheet1026.52.631250K (F)
SCZ-2634031218-KFKF-43Datasheet2640331250K (F)
SCZ-0432431409-SFSF-43Datasheet4241.531250K (F)
SCZ-0232431209-SFSF-43Datasheet224231350SMA (F)
SCZ-0131831509-SFSF-43Datasheet1181.531350SMA (F)
SCZ-0631831609-SFSF-43Datasheet618131450SMA (F)
SCZ-0431231609-SFSF-43Datasheet412.4131750SMA (F)
SCZ-0520831609-SFSF-43Datasheet0.582.231450SMA (F)
SCZ-0230832009-SFSF-43Datasheet280.831750SMA (F)
SCZ-1031831518-SFSF-43Datasheet1182.631450SMA (F)
SCZ-0431831618-SFSF-43Datasheet4181.631450SMA (F)
