Coaxial High-Pass Filters

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum Passband FrequencyMaximum Passband FrequencyMinimum Rejection FrequencyMaximum Rejection FrequencyRejectionInsertion LossVSWRImpedancePower HandlingRF Ports
SCF-15312340-42KFKF-H1Datasheet15 GHz26 GHzDC12 GHz40 dB0.8 dB1.350 Ohms50 W2.92 mm (F)
SCF-18315340-34KFKF-H1Datasheet18 GHz33 GHzDC15 GHz40 dB1.2 dB1.550 Ohms50 W2.92 mm (F)
SCF-22318340-28KFKF-H1Datasheet22 GHz40 GHzDC18 GHz40 dB1.0 dB1.650 Ohms50 W2.92 mm (F)

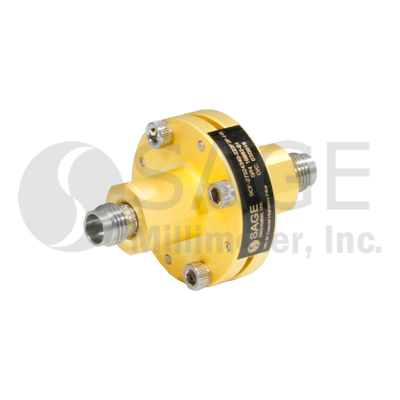

SCF-27324340-222F2F-H1Datasheet27 GHz50 GHzDC24 GHz40 dB0.8 dB1.350 Ohms40 W2.4 mm (F)

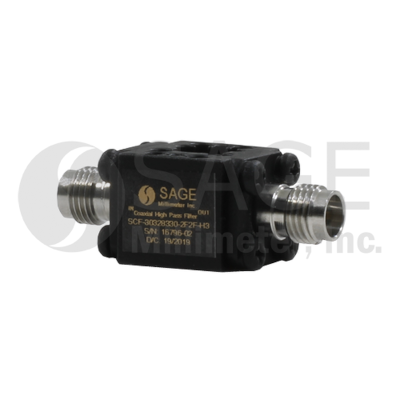

SCF-30328330-2F2F-H3Datasheet30 GHz50 GHzDC28 GHz30 dB2.5 dB50 Ohms-2.4mm (F)
SCF-34330340-19VFVF-H1Datasheet34 GHz60 GHzDC30 GHz40 dB1.0 dB1.350 Ohms30 W1.85 mm (F)
SCF-43335340-15VFVF-H1Datasheet43 GHz75 GHzDC35 GHz40 dB1.0 dB50 Ohms10 W1.85 mm (F)
SCF-51346340-121F1F-H1Datasheet51 GHz90 GHzDC46 GHz40 dB1.0 dB1.650 Ohms10 W1 mm (F)

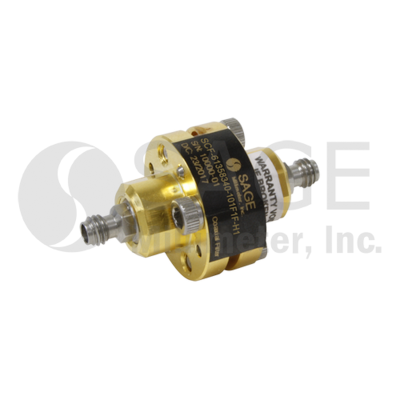

SCF-61358340-101F1F-H1Datasheet61 GHz110 GHzDC58 GHz40 dB1.5 dB1.550 Ohms10 W1 mm (F)
