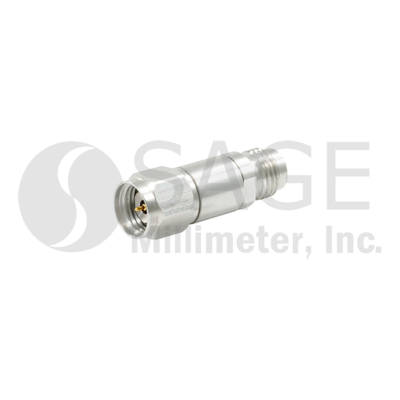

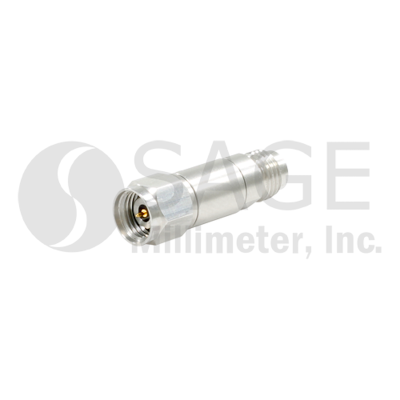

Coaxial Fixed Attenuators

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyAttenuationReturn LossPower HandlingConnector 1Connector 2
SCA-10-VMVF-S2DatasheetDC67 GHz10 dB16 dB1 W1.85 mm Male1.85 mm Female
SCA-10-VMVF-S9DatasheetDC67 GHz10 dB14 dB2 W1.85 mm Male1.85 mm Female
SCA-10-2M2F-S2DatasheetDC50 GHz10 dB19 dB1 W2.4 mm Male2.4 mm Female
SCA-10-2M2F-S9DatasheetDC50 GHz10 dB17 dB2 W2.4 mm Male2.4 mm Female
SCA-10-KMKF-S9DatasheetDC40 GHz10 dB18 dB2 W2.92 mm Male2.92 mm Female
SCA-10-3M3F-S2DatasheetDC26.5 GHz10 dB15 dB1 W3.5 mm Male3.5 mm Female
SCA-10-SMSF-S9DatasheetDC26.5 GHz10 dB20 dB2 WSMA MaleSMA Female
SCA-02-2M2F-S2DatasheetDC50 GHz2 dB19 dB1 W2.4 mm Male2.4 mm Female
SCA-20-VMVF-S2DatasheetDC67 GHz20 dB13 dB1 W1.85 mm Male1.85 mm Female
SCA-20-VMVF-S9DatasheetDC67 GHz20 dB14 dB2 W1.85 mm Male1.85 mm Female
SCA-20-2M2F-S9DatasheetDC50 GHz20 dB17 dB2 W2.4 mm Male2.4 mm Female
SCA-20-KMKF-S9DatasheetDC40 GHz20 dB18 dB2 W2.92 mm Male2.92 mm Female
SCA-20-3M3F-S2DatasheetDC26.5 GHz20 dB15 dB1 W3.5 mm Male3.5 mm Female
SCA-20-SMSF-S9DatasheetDC26.5 GHz20 dB20 dB2 WSMA MaleSMA Female
SCA-03-VMVF-S9DatasheetDC67 GHz3 dB14 dB2 W1.85 mm Male1.85 mm Female
SCA-03-2M2F-S9DatasheetDC50 GHz3 dB17 dB2 W2.4 mm Male2.4 mm Female
SCA-03-KMKF-S9DatasheetDC40 GHz3 dB18 dB2 W2.92 mm Male2.92 mm Female
SCA-03-3M3F-S2DatasheetDC26.5 GHz3 dB15 dB1 W3.5 mm Male3.5 mm Female
SCA-03-SMSF-S9DatasheetDC26.5 GHz3 dB20 dB2 WSMA MaleSMA Female
SCA-30-VMVF-S2DatasheetDC67 GHz30 dB16 dB1 W1.85 mm Male1.85 mm Female
SCA-30-2M2F-S2DatasheetDC50 GHz30 dB19 dB1 W2.4 mm Male2.4 mm Female
SCA-30-2M2F-S9DatasheetDC50 GHz30 dB17 dB2 W2.4 mm Male2.4 mm Female
SCA-30-KMKF-S9DatasheetDC40 GHz30 dB18 dB2 W2.92 mm Male2.92 mm Female
SCA-30-3M3F-S2DatasheetDC26.5 GHz30 dB15 dB1 W3.5 mm Male3.5 mm Female

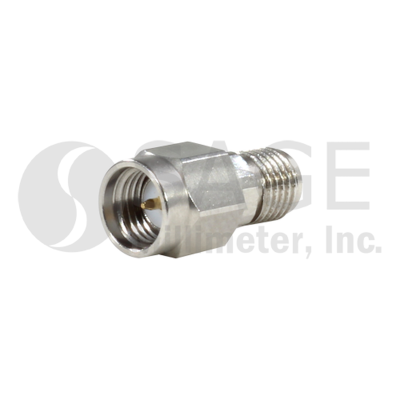

SCA-30-SMSF-S9DatasheetDC26.5 GHz30 dB20 dB2 WSMA MaleSMA Female
SCA-06-VMVF-S2DatasheetDC67 GHz6 dB1 W1.85 mm Male1.85 mm Female
SCA-06-VMVF-S9DatasheetDC67 GHz6 dB2 W1.85 mm Male1.85 mm Female
SCA-06-2M2F-S9DatasheetDC50 GHz6 dB17 dB2 W2.4 mm Male2.4 mm Female
SCA-06-KMKF-S9DatasheetDC40 GHz6 dB18 dB2 W2.92 mm Male2.92 mm Female
SCA-06-3M3F-S2DatasheetDC26.5 GHz6 dB15 dB1 W3.5 mm Male3.5 mm Female
SCA-06-SMSF-S9DatasheetDC26.5 GHz6 dB20 dB2 WSMA MaleSMA Female

備考

Remarks
