Coaxial Directional Couplers

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossCouplingPower HandlingDirectivityPort Return LossImpedanceRF Port
SCD-0134031010-KF-SADatasheet1 GHz40 GHz1.8 dB10 dB50 Watts10 dB12 dB50 Ohms2.92 mm Female
SCD-0135031008-2F-SADatasheet1 GHz50 GHz3.5 dB10 dB50 Watts8 dB10 dB50 Ohms2.4 mm Female
SCD-0136731008-VF-SADatasheet1 GHz67 GHz4.0 dB10 dB10 Watts8 dB10 dB50 Ohms1.85 mm Female
SCD-1036731008-VF-SADatasheet10 GHz67 GHz2.6 dB10 dB10 Watts8 dB9 dB50 Ohms
SCD-1834031012-KF-SADatasheet18 GHz40 GHz1.5 dB10 dB20 Watts12 dB14 dB50 Ohms
SCD-1835031010-2F-SADatasheet18 GHz50 GHz2.2 dB10 dB50 Watts10 dB10 dB50 Ohms
SCD-0231831012-SF-SADatasheet2 GHz18 GHz1.0 dB10 dB30 Watts12 dB12 dB50 OhmsSMA Female
SCD-0235031010-2F-SADatasheet2 GHz50 GHz2.3 dB10 dB50 Watts10 dB10 dB50 Ohms2.4 mm Female
SCD-2735031010-2F-SADatasheet26.5 GHz50 GHz2.2 dB10 dB50 Watts10 dB10 dB50 Ohms
SCD-0631831012-SF-SADatasheet6 GHz18 GHz1.0 dB10 dB30 Watts12 dB15 dB50 OhmsSMA Female
SCD-0632731012-SF-SADatasheet6 GHz26.5 GHz1.0 dB10 dB30 Watts12 dB15 dB50 OhmsSMA Female
SCD-0634031010-KF-SADatasheet6 GHz40 GHz1.7 dB10 dB30 Watts10 dB13 dB50 Ohms

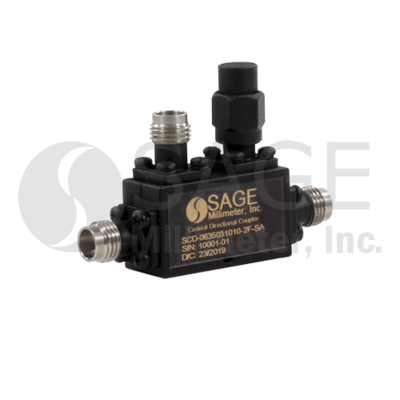

SCD-0635031010-2F-SADatasheet6 GHz50 GHz1.8 dB10 dB20 Watts10 dB10 dB50 Ohms
SCD-0134032010-KF-SADatasheet1 GHz40 GHz2.1 dB20 dB20 Watts10 dB12 dB50 Ohms2.92 mm Female
SCD-0135032008-2F-SADatasheet1 GHz50 GHz4.0 dB20 dB50 Watts8 dB10 dB50 Ohms2.4 mm Female
SCD-0136732008-VF-SADatasheet1 GHz67 GHz2.5 dB20 dB10 Watts8 dB10 dB50 Ohms1.85 mm Female
SCD-1036732008-VF-SADatasheet10 GHz67 GHz2.0 dB20 dB10 Watts8 dB9 dB50 Ohms
SCD-1834032012-KF-SADatasheet18 GHz40 GHz1.5 dB20 dB20 Watts12 dB14 dB50 Ohms
SCD-1835032010-2F-SADatasheet18 GHz50 GHz2.3 dB20 dB50 Watts10 dB10 dB50 Ohms
SCD-0231832012-SF-SADatasheet2 GHz18 GHz1.0 dB20 dB30 Watts12 dB12 dB50 OhmsSMA Female
SCD-0235032010-2F-SADatasheet2 GHz50 GHz2.8 dB20 dB50 Watts10 dB10 dB50 Ohms2.4 mm Female
SCD-2735032010-2F-SADatasheet26.5 GHz50 GHz2.3 dB20 dB50 Watts10 dB10 dB50 Ohms
SCD-0631832012-SF-SADatasheet6 GHz18 GHz1.0 dB20 dB30 Watts12 dB14 dB50 OhmsSMA Female
SCD-0632732012-SF-SADatasheet6 GHz26.5 GHz1.0 dB20 dB30 Watts12 dB15 dB50 OhmsSMA Female
SCD-0634032010-KF-SADatasheet6 GHz40 GHz1.7 dB20 dB30 Watts10 dB15 dB50 Ohms
SCD-0635032010-2F-SADatasheet6 GHz50 GHz2.3 dB20 dB50 Watts10 dB10 dB50 Ohms
SCD-0231833010-SF-SADatasheet2 GHz18 GHz1.0 dB30 dB30 Watts10 dB12 dB50 OhmsSMA Female
SCD-0631833010-SF-SADatasheet6 GHz18 GHz1.0 dB30 dB30 Watts10 dB14 dB50 OhmsSMA Female
