Coaxial Connector Horn Antennas

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Gain [dBi]3 dB Beamwidth, E-Plane3 dB Beamwidth, H-PlaneReturn LossAntenna Port
SAR-1532-101F-E2Datasheet751101532°32°23 dB1 mm Female
SAR-1532-101M-E2Datasheet751101532°32°23 dB1 mm Male
SAR-1532-101F-R2Datasheet751101532°32°23 dB90° 1 mm Female
SAR-1532-101M-R2Datasheet751101532°32°23 dB90° 1 mm Male
SAR-2013-101F-E2Datasheet751102016°18°1.15:11 mm Female
SAR-2013-101M-E2Datasheet751102016°18°1.15:11 mm Male
SAR-2013-101F-R2Datasheet751102016°18°23 dB90° 1 mm Female
SAR-2013-101M-R2Datasheet751102016°18°23 dB90° 1 mm Male
SAR-2309-101F-E2Datasheet751102311°12°1.15:11 mm Female
SAR-2309-101M-E2Datasheet751102311°12°1.15:11 mm Male
SAR-2309-101F-R2Datasheet751102311°12°1.15:190° 1 mm Female
SAR-2309-101M-R2Datasheet751102311°12°1.15:190° 1 mm Male
SAR-2507-101F-E2Datasheet751102510°23 dB1 mm Female
SAR-2507-101M-E2Datasheet751102510°23 dB1 mm Male
SAR-2507-101F-R2Datasheet751102510°23 dB90° 1 mm Female
SAR-2507-101M-R2Datasheet751102510°23 dB90° 1 mm Male
SAR-2013-121F-E2Datasheet60902014°15°23 dB1 mm Female
SAR-2013-121M-E2Datasheet60902014°15°23 dB1 mm Male
SAR-2309-151F-R2Datasheet50752310.5°12°23 dB90° 1 mm Female
SAR-2309-151M-R2Datasheet50752310.5°12°23 dB90° 1 mm Male
SAR-2309-15VF-R2Datasheet50752310.5°12°23 dB90° 1.85 mm Female
SAR-2309-151F-E2Datasheet50752310.5°12°22 dB1 mm Female
SAR-2309-15VM-R2Datasheet50752310.5°12°23 dB90° 1.85 mm Male
SAR-2309-151M-E2Datasheet50752310.5°12°22 dB1 mm Male
SAR-1725-15VF-E2Datasheet50751726°25°15 dB1.85 mm Female
SAR-1725-15VM-E2Datasheet50751726°25°15 dB1.85 mm Male
SAR-2309-15VF-E2Datasheet50752310.5°12°23 dB1.85 mm Female
SAR-2309-15VM-E2Datasheet50752310.5°12°23 dB1.85 mm Male
SAR-2013-15VF-E2Datasheet50752014°15°23 dB1.85 mm Female
SAR-2013-15VM-E2Datasheet50752014°15°23 dB1.85 mm Male
SAR-2013-19VF-R2Datasheet40602014°16°18 dB90° 1.85 mm (V) Female
SAR-2013-19VM-R2Datasheet40602014°16°18 dB90° 1.85 mm (V) Male
SAR-2309-19VF-R2Datasheet40602310°11°18 dB90° 1.85 mm Female
SAR-2309-19VM-R2Datasheet40602310°11°18 dB90° 1.85 mm Male
SAR-2507-19VF-R2Datasheet40602510°18 dB90° 1.85 mm Female
SAR-2507-19VM-R2Datasheet40602510°18 dB90° 1.85 mm Male
SAR-2013-22VF-E2Datasheet33502015°16°18 dB1.85 mm Female
SAR-2013-22VM-E2Datasheet33502015°16°18 dB1.85 mm Male
SAR-1725-15VF-R2Datasheet50751726°25°1.43:190° 1.85 mm (V) Female
SAR-2013-22VF-R2Datasheet33502015°16°23 dB90° 1.85 mm Female
SAR-1725-15VM-R2Datasheet50751726°25°1.43:190° 1.85 mm (V) Male
SAR-2013-22VM-R2Datasheet33502015°16°23 dB90° 1.85 mm Male
SAR-2013-222F-E2Datasheet33502015°16°15 dB2.4 mm Female
SAR-2013-222M-E2Datasheet33502015°16°15 dB2.4 mm Male
SAR-2013-222F-R2Datasheet33502015°16°25 dB90° 2.4 mm Female
SAR-2013-222M-R2Datasheet33502015°16°25 dB90° 2.4 mm Male
SAR-2309-22VF-E2Datasheet33502310°11°23 dB1.85 mm Female
SAR-2309-22VM-E2Datasheet33502310°11°23 dB1.85 mm Male
SAR-2309-22VF-R2Datasheet33502310°11°23 dB90° 1.85 mm Female
SAR-2309-22VM-R2Datasheet33502310°11°23 dB90° 1.85 mm Male
SAR-2309-222F-E2Datasheet33502310°11°23 dB2.4 mm Female
SAR-2309-222M-E2Datasheet33502310°11°23 dB2.4 mm Male
SAR-2309-222F-R2Datasheet33502310°11°23 dB90° 2.4 mm Female
SAR-2309-222M-R2Datasheet33502310°11°23 dB90° 2.4 mm Male
SAR-1725-28KF-E2Datasheet26.5401723°24°23 dB2.92 mm Female
SAR-2309-28KF-E2Datasheet26.5402310°11°23 dB2.92 mm Female
SAR-2309-28KM-E2Datasheet26.5402310°11°23 dB2.92 mm Male
SAR-1725-28KM-E2Datasheet26.5401723°24°23 dB2.92 mm Male
SAR-1725-28KF-E2-WRDatasheet26.5401723°24°20 dB2.92 mm Female
SAR-1725-28KF-R2Datasheet26.5401723°24°23 dB90° 2.92 mm Female
SAR-1725-28KM-E2-WRDatasheet26.5401723°24°20 dB2.92 mm Male
SAR-1725-28KM-R2Datasheet26.5401723°24°23 dB90° 2.92 mm Male
SAR-2013-28KF-E2Datasheet26.5402014°16°19 dB2.92 mm Female
SAR-2013-28KM-E2Datasheet26.5402014°16°19 dB2.92 mm Male
SAR-2013-282F-E2Datasheet26.5402014°16°19 dB2.4 mm Female
SAR-2013-282M-E2Datasheet26.5402014°16°19 dB2.4 mm Male
SAR-2309-28VF-R2Datasheet26.5402310°11°23 dB90° 1.85 mm Female
SAR-2309-28VM-R2Datasheet26.5402310°11°23 dB90° 1.85 mm Male
SAR-2309-282F-R2Datasheet26.5402310°11°23 dB90° 2.4 mm Female
SAR-2309-282M-R2Datasheet26.5402310°11°23 dB90° 2.4 mm Male
SAR-1725-34KF-E2Datasheet22331726°24°23 dB2.92 mm Female
SAR-1725-34KM-E2Datasheet22331726°24°23 dB2.92 mm Male
SAR-1725-34KF-R2Datasheet22331726°24°23 dB90° 2.92 mm Female
SAR-1725-34KM-R2Datasheet22331726°24°23 dB90° 2.92 mm Male
SAR-1725-34KF-E2-WRDatasheet22331726°24°20 dB2.92 mm Female
SAR-1725-34KM-E2-WRDatasheet22331726°24°20 dB2.92 mm Male
SAR-2013-34KF-E2Datasheet22332014°16°23 dB2.92 mm Female
SAR-2013-34KM-E2Datasheet22332014°16°23 dB2.92 mm Male
SAR-2013-34KF-R2Datasheet22332014°16°23 dB90° 2.92 mm Female
SAR-2013-34KM-R2Datasheet22332014°16°23 dB90° 2.92 mm Male

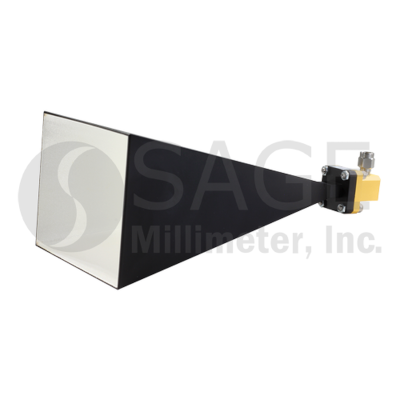

SAR-2309-34KF-R2Datasheet22332310°11°23 dB90° 2.92 mm Female
SAR-2309-34KM-R2Datasheet22332310°11°23 dB90° 2.92 mm Male
SAR-2013-42KF-E2Datasheet1826.52015°16°18 dB2.92 mm Female
SAR-2013-42KM-E2Datasheet1826.52015°16°18 dB2.92 mm Male
SAR-2013-42KF-R2Datasheet1826.52015°16°20 dB90° 2.92 mm Female
SAR-2013-42KM-R2Datasheet1826.52015°16°20 dB90° 2.92 mm Male
