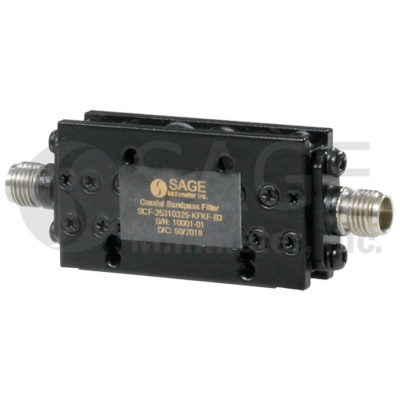

Coaxial Band-Pass Filters

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum Passband FrequencyMaximum Passband FrequencyLow Side RejectionHigh Side RejectionReturn LossInsertion LossImpedanceRF Ports
SCF-12302360-SFSF-B3Datasheet11.4 GHz13.4 GHz60 dB60 dB14 dB0.6 dB50 OhmsSMA (F)
SCF-12315250-SFSF-B3Datasheet11.6 GHz13.1 GHz50 dB70 dB18 dB0.8 dB50 OhmsSMA (F)
SCF-13302360-SFSF-B3Datasheet11.7 GHz13.7 GHz60 dB60 dB12 dB0.8 dB50 OhmsSMA (F)
SCF-14304360-SFSF-B3Datasheet12 GHz16 GHz60 dB60 dB12 dB1 dB50 OhmsSMA (F)
SCF-15314260-SFSF-B3Datasheet13.8 GHz15.2 GHz60 dB60 dB18 dB0.8 dB50 OhmsSMA (F)
SCF-15301370-SFSF-B3Datasheet14.8 GHz15.8 GHz70 dB70 dB14 dB1 dB50 OhmsSMA (F)
SCF-16303260-SFSF-B3Datasheet16.25 GHz16.55 GHz60 dB60 dB16 dB0.8 dB50 OhmsSMA (F)
SCF-17304240-SFSF-B3Datasheet16.8 GHz17.2 GHz40 dB40 dB16 dB1.5 dB50 OhmsSMA (F)
SCF-17304240-SFSF-B3-2Datasheet16.94 GHz17.34 GHz40 dB40 dB18 dB1.5 dB50 OhmsSMA (F)
SCF-18301360-SFSF-B3Datasheet17 GHz18 GHz60 dB60 dB14 dB0.8 dB50 OhmsSMA (F)
SCF-18301370-SFSF-B3Datasheet17 GHz18 GHz70 dB70 dB16 dB1 dB50 OhmsSMA (F)
SCF-22308340-SFSF-B3Datasheet18 GHz26.1 GHz40 dB40 dB10 dB3 dB50 OhmsSMA (F)

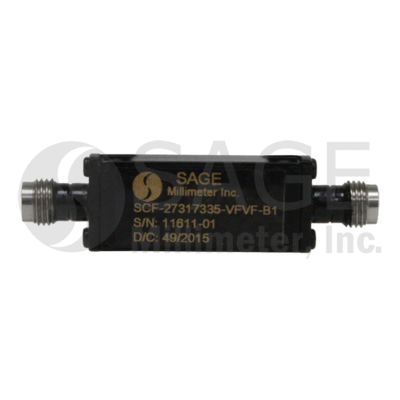

SCF-27317335-VFVF-B1Datasheet18 GHz35 GHz45 dB45 dB10 dB3 dB50 Ohms1.85 mm (F)
SCF-21306340-SFSF-B3Datasheet18.0 GHz24.0 GHz40 dB40 dB10 dB3.0 dB50 OhmsSMA (F)
SCF-10316340-SFSF-B3Datasheet2 GHz18 GHz60 dB40 dB10 dB1 dB50 OhmsSMA (F)
SCF-22304340-SFSF-B3Datasheet20 GHz24 GHz40 dB40 dB10 dB3.0 dB50 OhmsSMA (F)
SCF-22301360-SFSF-B3Datasheet21.5 GHz22.5 GHz60 dB60 dB18 dB2 dB50 OhmsSMA (F)
SCF-26301370-SFSF-B3Datasheet25 GHz26 GHz70 dB70 dB11 dB3 dB50 OhmsSMA (F)
SCF-28315250-KFKF-B3Datasheet27 GHz28.5 GHz50 dB50 dB12 dB2 dB50 Ohms2.92 mm (F)
SCF-34312340-KFKF-B3Datasheet28 GHz40 GHz40 dB40 dB10 dB3 dB50 Ohms2.92 mm (F)
SCF-30301360-KFKF-B3Datasheet29.3 GHz30.3 GHz60 dB60 dB11 dB3 dB50 OhmsSMA (F)
SCF-35310340-KFKF-B3Datasheet30 GHz40 GHz40 dB40 dB10 dB1 dB50 Ohms2.92 mm (F)
SCF-36302270-SFSF-B3Datasheet35.4 GHz35.6 GHz70 dB70 dB14 dB4 dB50 OhmsSMA (F)
SCF-08308320-SFSF-B1Datasheet4 GHz12 GHz25 dB25 dB10 dB1.5 dB50 OhmsSMA (F)
SCF-96222270-SFSF-B3Datasheet8.5 GHz10.7 GHz70 dB70 dB12 dB1.0 dB50 OhmsSMA (F)
SCF-10301270-SFSF-B3Datasheet9.9 GHz10 GHz70 dB70 dB18 dB2.5 dB50 OhmsSMA (F)
