Broadwall Waveguide Directional Couplers

メーカー名: Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Insertion Loss [dB]Coupling [dB]Directivity [dB]VSWRCoupler TypeRF Ports

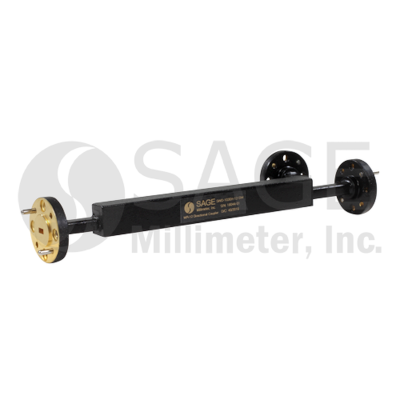

SWD-1030H-12-SWDatasheet6090110301.1:13-Port Multi-hole, WaveguideWR-12 WG

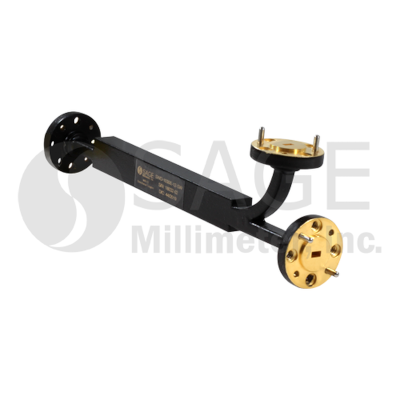

SWD-1030E-12-SWDatasheet6090110301.1:13-Port Multi-hole, WaveguideWR-12 WG
SWD-3030E-22-SWDatasheet33500.7303020 db3-Port Multi-hole, WaveguideWR-22 WG
SWD-2030E-28-SW5Datasheet26.5400.7203020 dB3-Port Multi-hole, WaveguideWR-28 WG

備考

Remarks
