Broadband Ridged Square Antennas

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyGain3 dB Beamwidth, E-Plane3 dB Beamwidth, H-PlaneReturn LossAntenna Port
SAV-0131831040-NF-U2Datasheet1 GHz18 GHz10 dbi--10 dBN(F)
SAV-0330631050-NF-S1Datasheet3 GHz6 GHz10 dBi50°50°10 dBN(F)

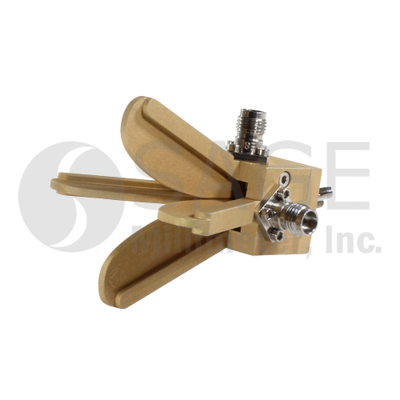

SAV-0535031140-2F-U5-QRDatasheet5 GHz50 GHz11 dbi40°40°10 dB2.4 mm (F)
SAV-0131231226-SF-S5-DP-QRDatasheet1 GHz12 GHz12 dbi27°24°7 dBSMA (F)
SAV-4525031429-2F-U5Datasheet4.5 GHz50 GHz14 dbi29°29°14 dB2.4 mm (F)
SAV-0434031428-KF-U5-QRDatasheet4 GHz40 GHz14 dbi28°28°10 dBK (F)
SAV-0434031427-KF-U5Datasheet4 GHz40 GHz14 dbi27°27°14 dBK (F)
SAV-0632531431-SF-U3-QRDatasheet6 GHz24.5 GHz14 dbi26°36°8 dBSMA (F)
SAV-0632531431-SF-S1-QR-WRDatasheet6 GHz24.5 GHz14 dbi26°36°8 dBSMA (F)
SAV-0632531431-SF-S1-QRDatasheet6 GHz24.5 GHz14 dbi26°36°8 dBSMA (F)

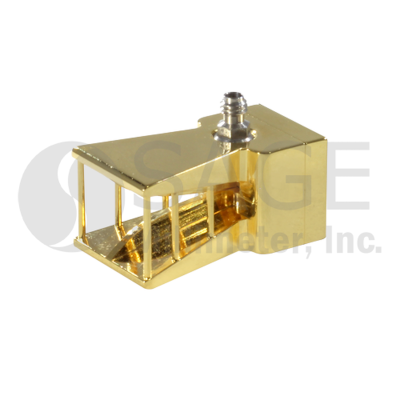

SAV-1431141535-1F-U5Datasheet14 GHz110 GHz15 dbi35°35°10 dB1 mm (F)

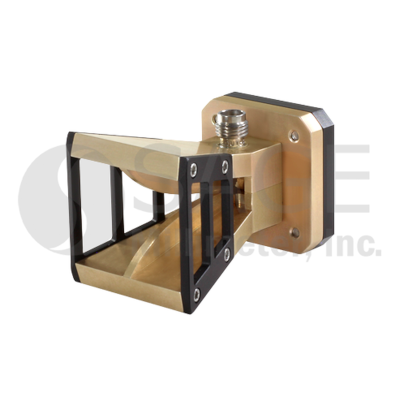

SAV-0636731522-VF-U5Datasheet6 GHz67 GHz15 dbi22°22°12 dBV (F)
SAV-0130430883-SF-U4-QRDatasheet1 GHz4 GHz8 dbi68°98°9 dBSMA (F)
