Between Series Coaxial Adapters

メーカー名:Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum FrequencyMaximum FrequencyInsertion LossReturn LossImpedanceConnector 1Connector 2
SCT-NFSM-UBDatasheetDC18 GHz0.2 dB26 dB50 OhmsN FemaleSMA Male
SCT-NMSF-UBDatasheetDC18 GHz0.2 dB26 dB50 OhmsN MaleSMA Female
SCT-NMSM-UBDatasheetDC18 GHz0.2 dB26 dB50 OhmsN MaleSMA Male

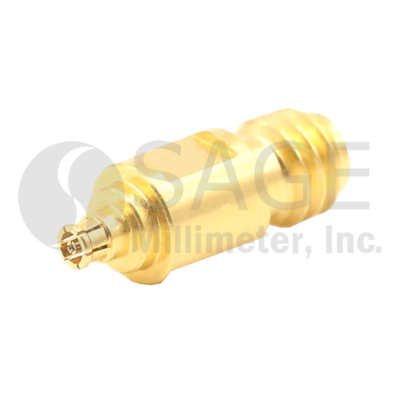

SCT-AF1F-UBDatasheetDC100 GHz-14 dB50 OhmsSMPS Female1 mm Female
SCT-AF1M-UBDatasheetDC100 GHz-14 dB50 OhmsSMPS Female1 mm Male

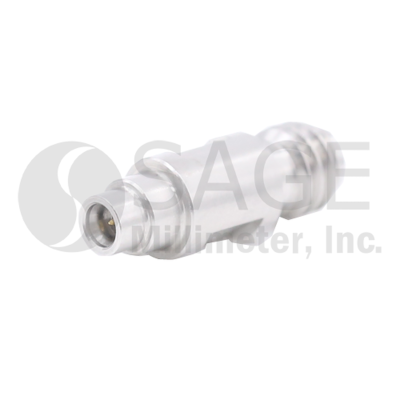

SCT-AM1F-UBDatasheetDC100 GHz-14 dB50 OhmsSMPS Male1 mm Female
SCT-AM1M-UBDatasheetDC100 GHz-14 dB50 OhmsSMPS Male1 mm Male
SCT-NFSF-UBDatasheetDC18 GHz0.2 dB26 dB50 OhmsN FemaleSMA Female
SCT-SFVF-UBDatasheetDC26.5 GHz0.4 dB20 dB50 OhmsSMA Female1.85 mm Female
SCT-SFVM-UBDatasheetDC26.5 GHz0.4 dB20 dB50 OhmsSMA Female1.85 mm Male
SCT-SF2F-UBDatasheetDC26.5 GHz0.3 dB20 dB50 OhmsSMA Female2.4 mm Female
SCT-SF2M-UBDatasheetDC26.5 GHz0.3 dB20 dB50 OhmsSMA Female2.4 mm Male
SCT-SFKF-UBDatasheetDC26.5 GHz0.5 dB20 dB50 OhmsSMA Female2.92 mm Female
SCT-SFKM-UBDatasheetDC26.5 GHz0.5 dB20 dB50 OhmsSMA Female2.92 mm Male
SCT-SMVF-UBDatasheetDC26.5 GHz0.4 dB20 dB50 OhmsSMA Male1.85 mm Female
SCT-SMVM-UBDatasheetDC26.5 GHz0.4 dB20 dB50 OhmsSMA Male1.85 mm Male
SCT-SM2F-UBDatasheetDC26.5 GHz0.3 dB20 dB50 OhmsSMA Male2.4 mm Female
SCT-SM2M-UBDatasheetDC26.5 GHz0.3 dB20 dB50 OhmsSMA Male2.4 mm Male
SCT-SMKF-UBDatasheetDC26.5 GHz0.5 dB20 dB50 OhmsSMA Male2.92 mm Female
SCT-SMKM-UBDatasheetDC26.5 GHz0.5 dB20 dB50 OhmsSMA Male2.92 mm Male
SCT-3F2M-U2DatasheetDC27 GHz-22 dB50 Ohms3.5 mm Female2.4 mm Male
SCT-3FKM-UBDatasheetDC33 GHz0.5 dB21 dB50 Ohms3.5 mm Female2.92 mm Male
SCT-3F2F-UBDatasheetDC33 GHz0.5 dB21 dB50 Ohms3.5 mm Female2.4 mm Female
SCT-3F2M-UBDatasheetDC33 GHz0.5 dB21 dB50 Ohms3.5 mm Female2.4 mm Male
SCT-3FKF-UBDatasheetDC33 GHz0.4 dB20 dB50 Ohms3.5 mm Female2.92 mm Female
SCT-3MKF-UBDatasheetDC33 GHz0.4 dB21 dB50 Ohms3.5 mm Male2.92 mm Female
SCT-3MKM-UBDatasheetDC33 GHz0.5 dB21 dB50 Ohms3.5 mm Male2.92 mm Male
SCT-3M2F-UBDatasheetDC33 GHz0.4 dB21 dB50 Ohms3.5 mm Male2.4 mm Female
SCT-3M2M-UBDatasheetDC33 GHz0.4 dB21 dB50 Ohms3.5 mm Male2.4 mm Male
SCT-KFDF-UBDatasheetDC40 GHz0.6 dB18 dB50 Ohms2.92 mm FemaleSMPM Female
SCT-KFDM-UBDatasheetDC40 GHz0.6 dB18 dB50 Ohms2.92 mm FemaleSMPM Male
SCT-KFAF-UBDatasheetDC40 GHz-17 dB50 Ohms2.92 mm FemaleSMPS Female
SCT-KFAM-UBDatasheetDC40 GHz-17 dB50 Ohms2.92 mm FemaleSMPS Male
SCT-KFVF-UBDatasheetDC40 GHz0.8 dB21 dB50 Ohms2.92 mm Female1.85 mm Female
SCT-KFVM-UBDatasheetDC40 GHz0.7 dB21 dB50 Ohms2.92 mm Female1.85 mm Male
SCT-KF2F-UBDatasheetDC40 GHz0.5 dB21 dB50 Ohms2.92 mm Female2.4 mm Female
SCT-KF2M-UBDatasheetDC40 GHz0.5 dB21 dB50 Ohms2.92 mm Female2.4 mm Male
SCT-KMVF-UBDatasheetDC40 GHz0.8 dB21 dB50 Ohms2.92 mm Male1.85 mm Female
SCT-KMVM-UBDatasheetDC40 GHz0.8 dB21 dB50 Ohms2.92 mm Male1.85 mm Male
SCT-KM2F-UBDatasheetDC40 GHz0.5 dB21 dB50 Ohms2.92 mm Male2.4 mm Female
SCT-KM2M-UBDatasheetDC40 GHz0.521 dB50 Ohms2.92 mm Male2.4 mm Male
SCT-KMDF-UBDatasheetDC40 GHz0.6 dB18 dB50 Ohms2.92 mm MaleSMPM Female
SCT-KMDM-UBDatasheetDC40 GHz0.6 dB18 dB50 Ohms2.92 mm MaleSMPM Male
SCT-KMAF-UBDatasheetDC40 GHz-17 dB50 Ohms2.92 mm MaleSMPS Female
SCT-KMAM-UBDatasheetDC40 GHz-17 dB50 Ohms2.92 mm MaleSMPS Male
SCT-2FVF-UBDatasheetDC50 GHz0.5 dB17 dB50 Ohms2.4 mm Female1.85 mm Female
SCT-2FVM-UBDatasheetDC50 GHz0.6 dB17 dB50 Ohms2.4 mm Female1.85 mm Male
SCT-2FDF-UBDatasheetDC50 GHz0.6 dB17 dB50 Ohms2.4 mm FemaleSMPM Female
SCT-2FDM-UBDatasheetDC50 GHz0.6 dB17 dB50 Ohms2.4 mm FemaleSMPM Male
SCT-2FAF-UBDatasheetDC50 GHz-17 dB50 Ohms2.4 mm FemaleSMPS Female
SCT-2FAM-UBDatasheetDC50 GHz-17 dB50 Ohms2.4 mm FemaleSMPS Male
SCT-2MVF-UBDatasheetDC50 GHz0.6 dB17 dB50 Ohms2.4 mm Male1.85 mm Female
SCT-2MVM-UBDatasheetDC50 GHz0.25 dB17 dB50 Ohms2.4 mm Male1.85 mm Male
SCT-2MDF-UBDatasheetDC50 GHz0.6 dB17 dB50 Ohms2.4 mm MaleSMPM Female
SCT-2MDM-UBDatasheetDC50 GHz0.6 dB17 dB50 Ohms2.4 mm MaleSMPM Male
SCT-2MAF-UBDatasheetDC50 GHz-17 dB50 Ohms2.4 mm MaleSMPS Female
SCT-2MAM-UBDatasheetDC50 GHz-17 dB50 Ohms2.4 mm MaleSMPS Male
SCT-DFVF-UBDatasheetDC65 GHz0.7 dB17 dB50 OhmsSMPM Female1.85 mm Female
SCT-DFVM-UBDatasheetDC65 GHz0.7 dB17 dB50 OhmsSMPM Female1.85 mm Male
SCT-DF1F-UBDatasheetDC65 GHz1.0 dB16 dB50 OhmsSMPM Female1 mm Female
SCT-DF1M-UBDatasheetDC65 GHz1.0 dB16 dB50 OhmsSMPM Female1 mm Male
SCT-DMVF-UBDatasheetDC65 GHz0.7 dB17 dB50 OhmsSMPM Male1.85 mm Female
SCT-DMVM-UBDatasheetDC65 GHz0.7 dB17 dB50 OhmsSMPM Male1.85 mm Male
SCT-DM1F-UBDatasheetDC65 GHz1.0 dB16 dB50 OhmsSMPM Male1 mm Female
SCT-DM1M-UBDatasheetDC65 GHz1.0 dB16 dB50 OhmsSMPM Male1 mm Male
SCT-VF1F-UBDatasheetDC67 GHz0.9 dB14 dB50 Ohms1.85 mm Female1 mm Female
SCT-VF1M-UBDatasheetDC67 GHz0.9 dB14 dB50 Ohms1.85 mm Female1 mm Male
SCT-VFAF-UBDatasheetDC67 GHz-16 dB50 Ohms1.85 mm FemaleSMPS Female
SCT-VFAM-UBDatasheetDC67 GHz-16 dB50 Ohms1.85 mm FemaleSMPS Male
SCT-VM1F-UBDatasheetDC67 GHz0.9 dB14 dB50 Ohms1.85 mm Male1 mm Female
SCT-VM1M-UBDatasheetDC67 GHz0.8 dB14 dB50 Ohms1.85 mm Male1 mm Male

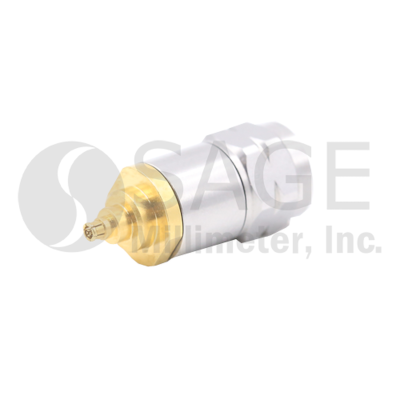

SCT-VMAF-UBDatasheetDC67 GHz-16 dB50 Ohms1.85 mm MaleSMPS Female
SCT-VMAM-UBDatasheetDC67 GHz-16 dB50 Ohms1.85 mm MaleSMPS Male

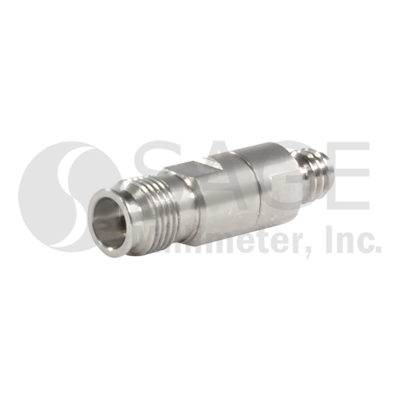

SCT-EF1F-UBDatasheetDC90 GHz0.65 dB14 dB50 Ohms1.35 mm Female1 mm Female
SCT-EF1F-UB-2DatasheetDC90 GHz0.65 dB13 dB50 Ohms1.35 mm Female1 mm Female
SCT-EF1M-UBDatasheetDC90 GHz0.65 dB14 dB50 Ohms1.35 mm Female1 mm Male
SCT-EF1M-UB-2DatasheetDC90 GHz0.65 dB13 dB50 Ohms1.35 mm Female1 mm Male
SCT-EM1F-UBDatasheetDC90 GHz0.65 dB14 dB50 Ohms1.35 mm Male1 mm Female
SCT-EM1F-UB-2DatasheetDC90 GHz0.65 dB13 dB50 Ohms1.35 mm Male1 mm Female
SCT-EM1M-UBDatasheetDC90 GHz0.65 dB14 dB50 Ohms1.35 mm Male1 mm Male
SCT-EM1M-UB-2DatasheetDC90 GHz0.65 dB13 dB50 Ohms1.35 mm Male1 mm Male
