Benchtop Amplifiers

メーカー名:Eravant

製品仕様

Product Specifications

ModelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Gain [dB]P1dB [dBm]Psat [dBm]Max Pin [dBm]Input Return Loss [dB]Output Return Loss [dB]Power Supply [VAC]RF Port
STB-3533735038-KF28-S1Datasheet34.536.550+38+40-1010100 - 240K(F) Input, WR-28 Waveguide Output
STB-3533735536-KF28-S1Datasheet34.536.555+35+37-1010100 - 240K(F) Input, WR-28 Waveguide Output
STB-1141741860-0606-L1Datasheet11017018-15--2566100 - 240WR-06 Waveguide
STB-5037533350-1515-L1Datasheet507533+8--77100 - 240WR-15 Waveguide
STB-7531142515-1010-S1Datasheet7511025+15+1801010100 - 240WR-10 Waveguide
STB-7531144050-1010-L1Datasheet7511040+3--1066100 - 240WR-10 Waveguide

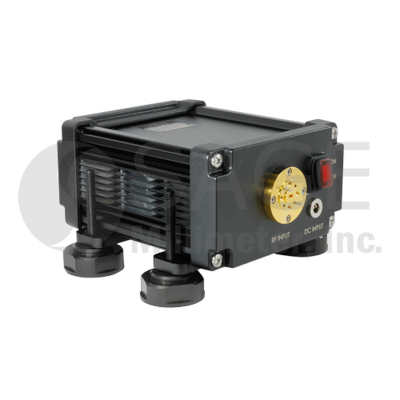

STB-5037032515-1515-S1Datasheet507028+15+1801010100 - 240WR-15 Waveguide
STB-5037532512-1515-S1Datasheet507525+12+1601010100 - 240WR-15 Waveguide
STB-6039032012-1212-S1Datasheet609020+12+16 dB01010100 - 240WR-12 Waveguide
STB-0115032518-2F2F-S1Datasheet0.015025+18+19-1866100 - 2402.4 mm (F)
STB-2734033840-282F-L1-1Datasheet26.54038+10--1866100 - 240WR-28 Waveguide Input, 2.4 mm (F) Output
STB-2735033015-2F2F-S1Datasheet26.55030+15--1099100 - 2402.4 mm (F)
STB-3734333028-2F2F-S1Datasheet374330+28+30-66100 - 2402.4 mm (F)
STB-1834032513-KFKF-S1Datasheet184025+13+16+1099100 - 240K(F)

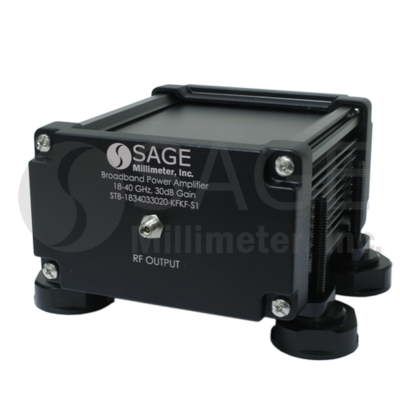

STB-1834033020-KFKF-S1Datasheet184030+20-+899100 - 240K(F)
STB-1834034030-KFKF-L1Datasheet184040+10--201010100 - 240K(F)
STB-1834032020-KFKF-S1Datasheet184020+20+21-1010100 - 240K(F)
STB-1832735025-KF2F-L1Datasheet1826.550+15-+201010100 - 240K(F) Input, 2.4 mm (F) Output
STB-1832732528-KFKF-S1Datasheet1826.528+28+30+899100 - 240K(F)
