Balanced Harmonic Mixers

メーカー名: Eravant

製品仕様

Product Specifications

Model NumberData sheetMinimum RF FrequencyMaximum RF FrequencyMinimum LO FrequencyMaximum LO FrequencyMinimum IF FrequencyMaximum IF FrequencyConv. LossHarmonic NumberRF Port
SFH-06SFSF-A3Datasheet110 GHz170 GHz3.0 GHz6.1 GHzDC1.3 GHz50 dB28WR-06 Waveguide
SFH-06SFSF-A3-2Datasheet110 GHz170 GHz5.0 GHz12.0 GHzDC1.6 GHz45 dB14WR-06 Waveguide

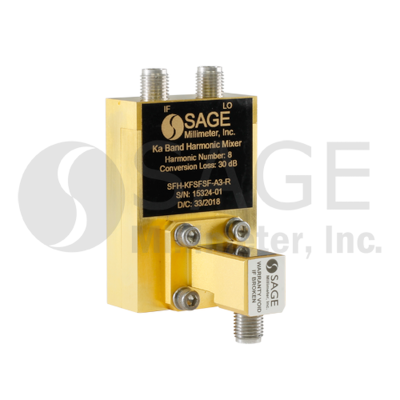

SFH-KFSFSF-A3-RDatasheet26.5 GHz40 GHz3.0 GHz6.1 GHzDC1.3 GHz30 dB82.92 mm (F)
SFH-28SFSF-A3Datasheet26.5 GHz40 GHz3.0 GHz6.1 GHzDC1.3 GHz30 dB8WR-28 Waveguide
SFH-28SFSF-A3-2Datasheet26.5 GHz40 GHz6 GHz12 GHzDC1.6 GHz20 dB4WR-28 Waveguide
SFH-22SFSF-A3Datasheet33 GHz50 GHz3.0 GHz6.1 GHzDC1.3 GHz33 dB10WR-22 Waveguide
SFH-22SFSF-A3-2Datasheet33 GHz50 GHz5 GHz12 GHzDC1.6 GHz25 dB6WR-22 Waveguide
SFH-19SFSF-A3Datasheet40 GHz60 GHz3.0 GHz6.1 GHzDC1.3 GHz35 dB10WR-19 Waveguide
SFH-19SFSF-A3-2Datasheet40 GHz60 GHz5.0 GHz12.0 GHzDC1.6 GHz28 dB6WR-19 Waveguide
SFH-15SFSF-A3Datasheet50 GHz75 GHz3.0 GHz6.1 GHzDC1.3 GHz40 dB14WR-15 Waveguide
SFH-15SFSF-A3-2Datasheet50 GHz75 GHz5 GHz12 GHzDC1.6 GHz35 dB8WR-15 Waveguide

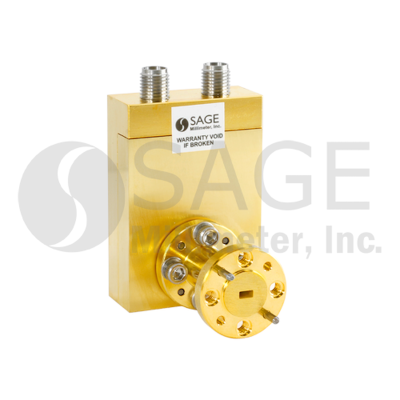

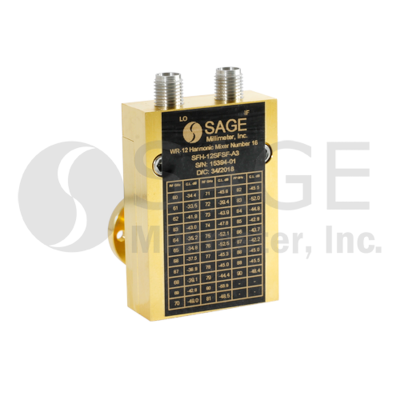

SFH-12SFSF-A3Datasheet60 GHz90 GHz3.0 GHz6.1 GHzDC1.3 GHz45 dB16WR-12 Waveguide
SFH-12SFSF-A3-2Datasheet60 GHz90 GHz5 GHz12 GHzDC1.6 GHz25 dB8WR-12 Waveguide
SFH-10SFSF-A3Datasheet75 GHz110 GHz3.0 GHz6.1 GHzDC1.3 GHz47 dB18WR-10 Waveguide
SFH-10SFSF-A3-2Datasheet75 GHz110 GHz5 GHz12 GHzDC1.6 GHz40 dB10WR-10 Waveguide
SFH-08SFSF-A3Datasheet90 GHz140 GHz3.0 GHz6.1 GHzDC1.3 GHz48 dB24WR-08 Waveguide
SFH-08SFSF-A3-2Datasheet90 GHz140 GHz5.0 GHz12.0 GHzDC1.6 GHz42 dB12WR-08 Waveguide

備考

Remarks
