任意波形発生器〔AWG〕
メーカー名：Euvis, Inc.
Arbitrary Waveform Generator
The Euvis AWG modules generate arbitrary CW waveforms with sampling rates up to 8 GSPS.
The on-board SRAM's/DRAM's provide up to 8M/1G x 12-bit data memory.
The AWG modules can be controlled by a PC via a USB or PCIe interface.
The sole RF input is a single-ended clock source, which can be operated up to 4 GHz.
The RF outputs of the module are comprised of differential analog outputs with 50-ohm back terminations.
The modules accept high-speed trigger signals and generate synchronization outputs and programmable marker signals.
The waveform generation can be in continuous or burst/pulse mode.

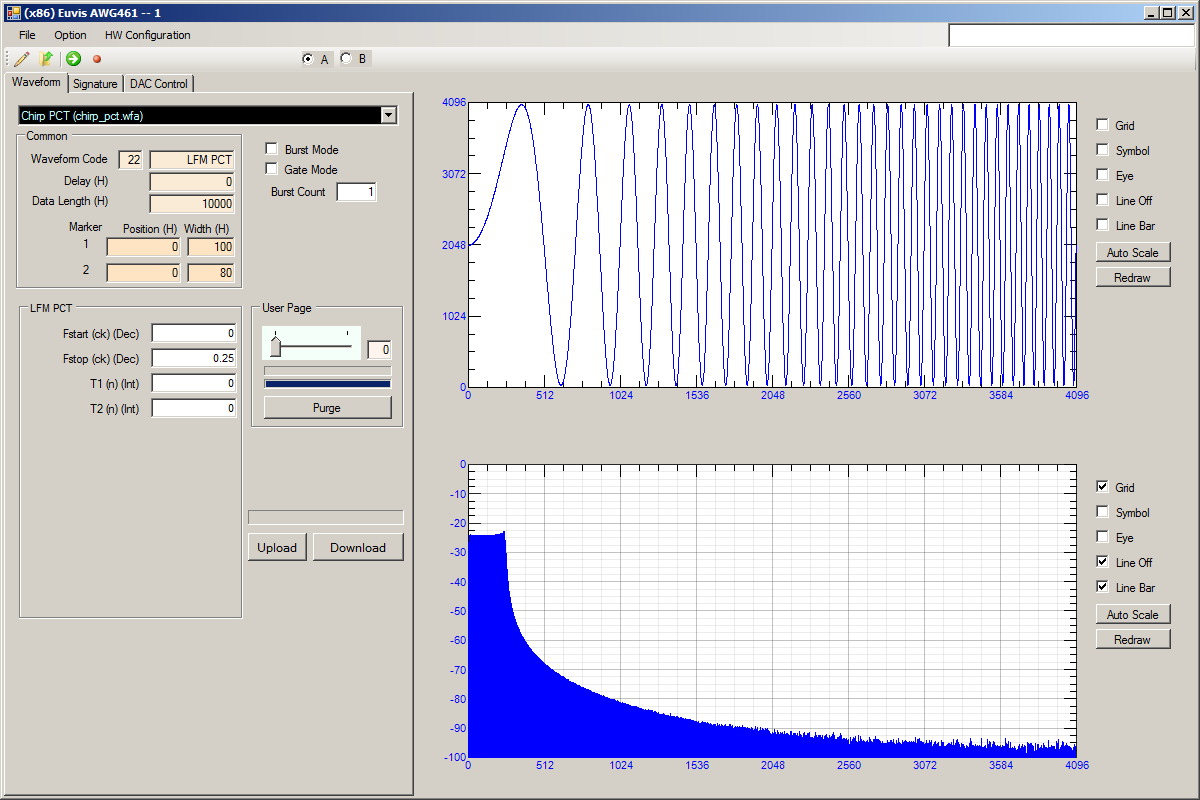

The waveform contents can be dynamically changed using the user page selection.
The companion API provides interfaces software development.
The Euvis AWG modules generate arbitrary CW waveforms with sampling rates up to 8 GSPS.
The on-board SRAM's/DRAM's provide up to 8M/1G x 12-bit data memory.
The AWG modules can be controlled by a PC via a USB or PCIe interface.
The sole RF input is a single-ended clock source, which can be operated up to 4 GHz.
The RF outputs of the module are comprised of differential analog outputs with 50-ohm back terminations.
The modules accept high-speed trigger signals and generate synchronization outputs and programmable marker signals.
The waveform generation can be in continuous or burst/pulse mode.
The waveform contents can be dynamically changed using the user page selection.
The companion API provides interfaces software development.
製品仕様
Product Specifications
| Part Number | Data sheet | Analog Output Sampling Rate | Memory Size | Features | Availability |
|---|---|---|---|---|---|
| AWG432 | 5 GSPS | 1G x 12b | Deep Memory PCXe x8 | Now | |
| AWG461 | 5 GSPS | 1G x 12b | Deep Memory PCIe x8 | Now | |
| AWG414 |  | 2 x 4 GSPS | 2 x 4M x 12b | Dual channels | Now |
| AWG474 | | 2 x 4 GSPS | 2 x 1G x 10b | Deep Memory Dual channels | Now |
| AWG801 | | 8 GSPS | 8M x 11b | Trigger and 3 markers Built-in waveforms USB interface | Now |
| AWG872 | | 2 x 8 GSPS | 2 x 8M x 11b | Dual channels | Now |
備考
Remarks
【主な特長】
- 10ビットの直線性を備えた12ビットDAC
12-bit DAC with 10-bit linearity - 最大5 GHzのクロックレート
Clock rate up to 5 GHz - 最大8 Gspsのサンプリングレート
Sampling rate up to 8 Gsps - マルチページ構成で最大8M / 1Gの12ビットワードメモリ長さ
up to 8M/1G 12-bit words memory depth with multi-page configuration - 最大クロックレートで最大2/256ミリ秒のチャーピング波形
Up to 2/256 millisecond chirping waveform at maximum clock rate - 外部トリガーを受け入れ、プログラム可能なマーカー信号を生成
Accepts external trigger and generates programmable marker signal - プログラム可能な周期長
Programmable cyclic length - PCIe / USBインターフェース
PCIe / USB interfaces - 12V電源
12V power supply - ユーザーフレンドリーな入力データ形式とさまざまな組み込み波形
User-friendly input data formats and various built-in waveforms - システム開発を容易にするためのコンパニオンAPIおよびソフトウェアドライバー
Companion API and software drivers for easy system development
