Amplitude Detectors with Isolators

メーカー名:Eravant

製品仕様

Product Specifications

modelData sheetMinimum Frequency [GHz]Maximum Frequency [GHz]Sensitivity [mV/mW]Sensitivity Flatness [dB]RF Input Power [dBm]Video Bandwidth [MHz]Return Loss [dB]Output Voltage PolarityRF Port

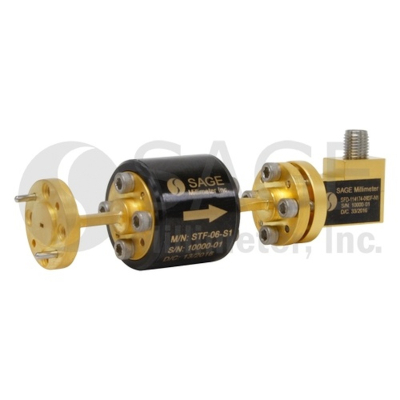

STD-06SF-NIDatasheet110170300±2.0-2010-NegativeWR-06 Waveguide
STD-06SF-PIDatasheet110170300±2.0-2010-PositiveWR-06 Waveguide
STD-28SF-NIDatasheet26.5401300±1.5-201015NegativeWR-28 Waveguide
STD-28SF-PIDatasheet26.5401300±1.5-201015PositiveWR-28 Waveguide
STD-22SF-PIDatasheet33501200±1.5-201015PositiveWR-22 Waveguide
STD-22SF-NIDatasheet33501200±1.5-201015NegativeWR-22 Waveguide

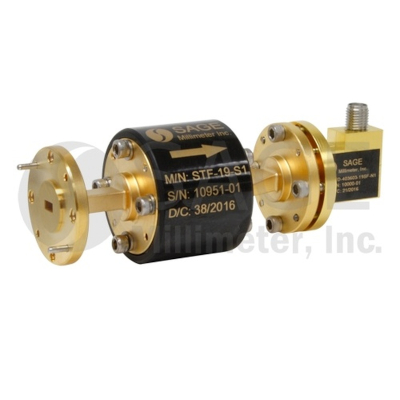

STD-19SF-PIDatasheet40601200±1.5-201015PositiveWR-19 Waveguide
STD-19SF-NIDatasheet40601200±1.5-201015NegativeWR-19 Waveguide
STD-15SF-PIDatasheet50751000±2.0-201015PositiveWR-15 Waveguide
STD-15SF-NIDatasheet50751000±2.0-201015NegativeWR-15 Waveguide
STD-12SF-NIDatasheet6090900±2.0-201015NegativeWR-12 Waveguide
STD-12SF-PIDatasheet6090900±2.0-201015PositiveWR-12 Waveguide
STD-10SF-PIDatasheet75110800±2.0-201015PositiveWR-10 Waveguide
STD-10SF-NIDatasheet75110800±2.0-201015NegativeWR-10 Waveguide

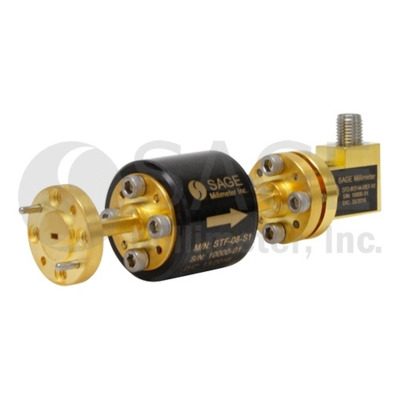

STD-08SF-NIDatasheet90140300±2.0-2010-NegativeWR-08 Waveguide
STD-08SF-PIDatasheet90140300±2.0-2010-PositiveWR-08 Waveguide
