ローノイズ受信用アンプ
取扱いメーカー
すぐお見積りいたします
概要
品名：MPS-173011－××
周波数帯域：1400-1700MHz
雑音指数：6.0dB Max.
利得(Gain)：13dB(Typ.)
P-1dB：30.0dBm
小サイズでも、高信頼性・低ノイズ

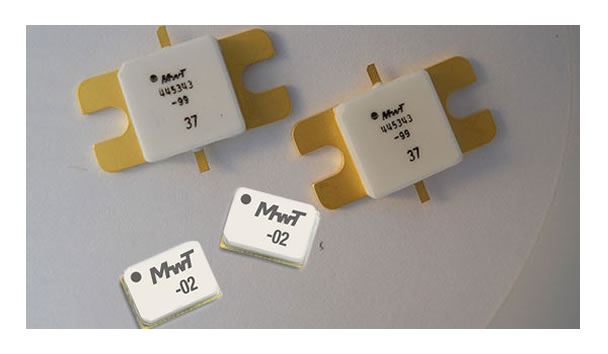

宇宙環境にも適したMwT社のガリウムヒ素デバイスを使用
仕様
| Model | Freq Range (MHz) | Linear Gain Typ/ Min (dB) | Gain ± Flatness Typ/ Max (dB) | VSWR Input Typ/ Max (dB | VSWR Output Typ/ Max (dB) | Noise Figure Typ/ Max (dB) | Pout @ -1 dB Typ/ Min (dBm) | PAE @ -1 dB (%) | IP3 Typ/ Min (dBm) | DC Voltage Applied (V) | DC Current Typ-Max (mA) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MPS- 080817P-02 | 806-849 | 14.0/ 13.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 28.0 / NA | 26 | 44.0 / 42.0 | 7.5 | 330-400 |
| MPS- 080817P-82 | 806-849 | 14.0/ 13.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 28.0 / NA | 26 | 44.0 / 42.0 | 7.5 | 330-400 |
| MPS- 080817P-85 | 806-849 | 14.0/ 13.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 28.0 / NA | 26 | 44.0 / 42.0 | 7.5 | 330-400 |
| MPS- 080817N-02 | 806-849 | 13.5/1 2.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 0.8 / 1.0 | 23.0 / NA | 26 | 36.0 / 33.0 | 7.5 | 180-250 |
| MPS- 080817N-82 | 806-849 | 13.5/ 12.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 0.8 / 1.0 | 23.0 / NA | 26 | 36.0 / 33.0 | 7.5 | 180-250 |
| MPS- 080817N-85 | 806-849 | 13.5/ 12.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 0.8 / 1.0 | 23.0 / NA | 26 | 36.0 / 33.0 | 7.5 | 180-250 |
| MPS- 0808A9-85 | 806-849 | 16.0/ 14.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 22.0 / NA | 26 | 36.0 / 33.0 | 6 | 180-250 |
| MPS- 080917P-02 | 870-925 | 14.5/ 13.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 28.0 / NA | 26 | 44.0 / 42.0 | 7.5 | 330-400 |
| MPS- 080917P-85 | 870-925 | 14.5/ 13.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 28.0 / NA | 26 | 44.0 / 42.0 | 7.5 | 330-400 |
| MPS- 080917N-02 | 870-925 | 13.5/ 12.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 0.8 / 1.0 | 23.0 / NA | 26 | 36.0 / 33.0 | 7.5 | 180-250 |
| MPS- 080917N-82 | 870-925 | 13.5/ 12.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 0.8 / 1.0 | 23.0 / NA | 26 | 36.0 / 33.0 | 7.5 | 180-250 |
| MPS- 080917N-85 | 870-925 | 13.5/ 12.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 0.8 / 1.0 | 23.0 / NA | 26 | 36.0 / 33.0 | 7.5 | 180-250 |
| MPS- 0809A9-82 | 870-925 | 16.0/ 14.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 22.0 / NA | 26 | 36.0 / 33.0 | 6 | 180-250 |
| MPS- 0809A9-85 | 870-925 | 16.0/ 14.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 22.0 / NA | 26 | 36.0 / 33.0 | 6 | 180-250 |
| MPS- 090917P-02 | 925-960 | 14.5/ 13.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 28.0 / NA | 26 | 44.0 / 42.0 | 7.5 | 330-400 |
| MPS- 090917P-82 | 925-960 | 14.5/ 13.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 28.0 / NA | 26 | 44.0 / 42.0 | 7.5 | 330-400 |
| MPS- 090917P-85 | 925-960 | 14.5/ 13.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 28.0 / NA | 26 | 44.0 / 42.0 | 7.5 | 330-400 |
| MPS- 090917N-02 | 925-960 | 13.5/ 12.0 | 0.20/ 0.30 | 2.0 / 2.5 | 2.0 / 2.5 | 0.8 / 1.0 | 23.0 / NA | 26 | 36.0 / 33.0 | 7.5 | 180-250 |
| MPS- 090917N-85 | 925-960 | 13.5/ 12.0 | 0.20/ 0.30 | 2.0 / 2.5 | 2.0 / 2.5 | 0.8 / 1.0 | 23.0 / NA | 26 | 36.0 / 33.0 | 7.5 | 180-250 |
| MPS- 0909A9-82 | 925-960 | 16.0/ 14.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 22.0 / NA | 26 | 36.0 / 33.0 | 6 | 180-250 |
| MPS- 0909A9-85 | 925-960 | 16.0/ 14.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 22.0 / NA | 26 | 36.0 / 33.0 | 6 | 180-250 |
| MPS- 1718A9-82 | 1710-1785 | 15.5/ 14.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 22.0 / NA | 26 | 36.0 / 33.0 | 6 | 100-150 |
| MPS- 1718A9-85 | 1710-1785 | 15.5/ 14.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 22.0 / NA | 26 | 36.0 / 33.0 | 6 | 100-150 |
| MPS- 1820A9-82 | 1850-1910 | 15.5/ 14.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 22.0 / NA | 26 | 36.0 / 33.0 | 6 | 100-137 |
| MPS- 1820A9-85 | 1850-1910 | 15.5/ 14.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 1.1 / 1.5 | 22.0 / NA | 26 | 36.0 / 33.0 | 6 | 100-137 |
| MPS- 081017N-02 | 800-960 | 13.5/ 12.0 | 2.0 / - | 2.0 / - | 1.0 / 1.3 | 21.0 / - | 36.0 / - | 6.0-7.0 | 180-250 | ||
| MPS- 081017P-02 | 800-960 | 14.0/ 13.0 | 2.0 / - | 2.0 / - | 1.3 / 1.7 | 26.0 / - | 44.0 / - | 6.0-7.0 | 330-400 |
