高直線性ドライバ・アンプ
取扱いメーカー
すぐお見積りいたします
概要
品名：MPS-173011－××
周波数帯域：1400-1700MHz
雑音指数：6.0dB Max.
利得(Gain)：13dB(Typ.)
P-1dB：30.0dBm
小サイズでも、高信頼性・低ノイズ

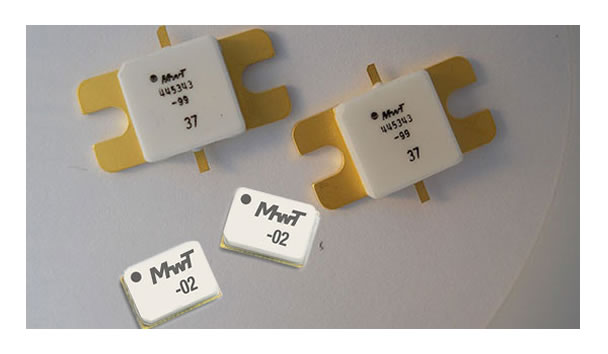

宇宙環境にも適したMwT社のガリウムヒ素デバイスを使用
仕様
| Model | Freq Range (MHz) | Linear Gain Typ/ Min (dB) | Gain ± Flatness Typ/ Max (dB) | VSWR Input Typ/ Max (dB) | VSWR Output Typ/ Max (dB) | Noise Figure Typ/Max (dB) | Pout @ -1 dB Typ/ Min (dBm) | IP3 Typ/ Min (dBm) | DC Voltage Applied (V) | DC Current Typ-Max (mA) |
|---|---|---|---|---|---|---|---|---|---|---|
| MPS- 0030H16-02 | 10-3000 | 14.5/ 16.0 | 0.50/ 0.80 | 2.0 / - | 2.0 / - | - | 27.0 / 25.5 | 33.5 / - | 7.0-8.0 | 240-270 |
| MPS- 0325A9D-82 | 300-2500 | 12.5/ 13.5 | 0.20/ 0.60 | 1.4 / 1.7 | 1.2 / 1.7 | 4.0 / - | 25.0 / - | 42.0 / 39.0 | 7.5 | 300-330 |
| MPS- 081017-02 | 800-1000 | 15.0/ 14.0 | 2.0 / - | 2.5 / - | 28.5 / - | 45.0 / 42.0 | 7.5 | 380-450 | ||
| MPS- 0810A9-02 | 800-960 | 15.0/ 14.0 | 1.5 / - | 2.0 / - | 1.1 / 1.5 | 20.5 / - | 34.0 / - | 6 | 160-240 | |
| MPS- 0810A9D-82 | 800-960 | 14.0/ 13.0 | 0.20/ 0.30 | 1.4 / 1.5 | 1.2 / 1.5 | 5.0 / - | 26.0 / 25.0 | 42.0 / 41.0 | 7.5 | 300-400 |
| MPS- 0820A9D-02 | 800-2050 | 13.5/ 12.5 | 1.4 / - | 1.4 / - | 5.5 / - | 24.0 / - | 43.0 / - | 6 | 220-280 | |
| MPS- 093011-82 | 800-1000 | 16.0/ 14.0 | 0.25/ 0.50 | 1.5 / - | 2.2 / - | 6.0 / - | 30.0 / - | 45.0 / 43.0 | 7.5 | 380-450 |
| MPS- 093011-85 | 800-1000 | 16.0/ 14.0 | 0.25/ 0.50 | 1.5 / - | 2.2 / - | 6.0 / - | 30.0 / - | 45.0 / 43.0 | 7.5 | 380-450 |
| MPS- 1720A9-02 | 800-960 | 14.0/ 13.0 | 2.1 / 2.2 | 1.5 / 2.1 | 1.1 / 1.5 | 20.0 / - | 33.0 / - | 6 | 100-140 | |
| MPS- 172208-82 | 1900-2000 | 13.0/ 12.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 5.0 / - | 26.0 / 25.0 | 38.0 / - | 7.5 | 380-450 |
| MPS- 172208-85 | 1900-2000 | 13.0/ 12.0 | 0.20/ 0.50 | 2.0 / 2.5 | 2.0 / 2.5 | 5.0 / - | 26.0 / 25.0 | 38.0 / - | 7.5 | 380-450 |
| MPS- 173011-82 | 1400-1700 | 14.0/ 13.0 | 0.25/ 0.50 | 1.5 / - | 2.2 / - | 6.0 / - | 30.0 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 173011-85 | 1400-1700 | 14.0/ 13.0 | 0.25/ 0.50 | 1.5 / - | 2.2 / - | 6.0 / - | 30.0 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 1820A9D-02 | 1800-2000 | 14.0/ 13.0 | 0.20/ 0.30 | 1.4 / 1.5 | 1.2 / 1.5 | 5.0 / - | 26.0 / 25.0 | 42.0 / 41.0 | 7.5 | 300-400 |
| MPS- 1820A9D-82 | 1800-2000 | 14.0/ 13.0 | 0.20/ 0.30 | 1.4 / 1.5 | 1.2 / 1.5 | 5.0 / - | 26.0 / 25.0 | 42.0 / 41.0 | 7.5 | 300-400 |
| MPS- 182117-02 | 1800-2100 | 14.0/ 13.0 | 2.0 / - | 2.5 / - | 28.5 / - | 45.0 / 42.0 | 7.5 | 380-450 | ||
| MPS- 182217-02 | 1800-2200 | 14.0/ 13.0 | 0.25/ 0.50 | 1.5 / - | 3.0 / - | 6.0 / - | 28.5 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 182217-82 | 1800-2200 | 14.0/ 13.0 | 0.25/ 0.50 | 1.5 / - | 3.0 / - | 6.0 / - | 28.5 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 2125A9D-02 | 2100-2500 | 14.0/ 13.0 | 0.20/ 0.50 | 1.4 / 1.5 | 1.2 / 1.5 | 5.0 / - | 26.0 / 25.0 | 42.0 / 41.0 | 7.5 | 300-400 |
| MPS- 2125A9D-82 | 2100-2500 | 14.0/ 13.0 | 0.20/ 0.50 | 1.4 / 1.5 | 1.2 / 1.5 | 5.0 / - | 26.0 / 25.0 | 42.0 / 41.0 | 7.5 | 300-400 |
| MPS- 213011-02 | 1700-2100 | 14.0/ 13.0 | 0.25/ 0.50 | 1.5 / - | 2.2 / - | 6.0 / - | 29.0 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 213011-82 | 1700-2100 | 14.0/ 13.0 | 0.25/ 0.50 | 1.5 / - | 2.2 / - | 6.0 / - | 29.0 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 213011-85 | 1700-2100 | 14.0/ 13.0 | 0.25/ 0.50 | 1.5 / - | 2.2 / - | 6.0 / - | 29.0 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 242520-83 | 2400-2500 | 13.0/ 12.0 | 0.30/ 0.50 | 3.0 / - | 2.0 / - | - / - | 36.0 / 35.0 | 8 | 750-900 | |
| MPS- 242717-02 | 2400-2700 | 13.0/ 12.0 | 2.0 / - | 28.0 / - | 45.0 / 42.0 | 6.0-7.0 | 380-450 | |||
| MPS- 252730-83 | 2500-2700 | 13.0/ 12.0 | 0.40/ 0.60 | 3.0 / - | 2.0 / - | 36.0 / 35.0 | 8 | 750-900 | ||
| MPS- 253011-02 | 2400-2700 | 13.0/ 12.0 | 0.25/ 0.50 | 1.5 / - | 2.2 / - | 6.0 / - | 29.0 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 253011-82 | 2400-2700 | 13.0/ 12.0 | 0.25/ 0.50 | 1.5 / - | 2.2 / - | 6.0 / - | 29.0 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 253011-85 | 2400-2700 | 13.0/ 12.0 | 0.25/ 0.50 | 1.5/ - | 2.2 / - | 6.0 / - | 29.0 / - | 45.0 / 42.0 | 7.5 | 380-450 |
| MPS- 343517-02 | 3400-3500 | 13.0/ 12.0 | 0.25/ 0.50 | 2.0 / - | 2.2 / - | 6.0 / - | 29.0 / - | 40 | 7.5 | 380-450 |
| MPS- 343517-82 | 3400-3500 | 13.0/ 12.0 | 0.25/ 0.50 | 2.0 / - | 2.2 / - | 6.0 / - | 29.0 / - | 40 | 7.5 | 380-450 |
| MPS- 3435A9D-82 | 3400-3500 | 13.0/ 12.0 | 0.20/ 0.30 | 1.4 / 1.5 | 1.3 / 1.5 | 6.0 / - | 24.0 / 23.0 | 41.0 / 39.0 | 7.5 | 300-400 |
| MPS- 343617-82 | 3400-3600 | 13.0/ 12.0 | 2.0 / - | 2.2 / - | 29.0 / - | 48.0 / 44.0 | 7.5 | 350-420 | ||
| MPS- 343717-02 | 3400-3700 | 12.5/ 11.7 | 1.5 / - | 2.5 / - | 28.5 / - | 45.0 / 42.0 | 6.0-7.0 | 330-400 | ||
| MPS- 343717-82 | 3400-3700 | 12.5/ 11.7 | 1.5 / - | 2.5 / - | 28.5 / - | 45.0 / 42.0 | 6.7 | 380-450 | ||
| MPS- 363817-82 | 3600-3800 | 13.0/ 12.0 | 2.0 / - | 2.2 / - | 29.0 / - | 48.0 / 44.0 | 7.5 | 350-420 | ||
| ULA 808-82 | 1800-2100 | 14.0/ 13.0 | 0.25/ 0.50 | 2.0 / - | 2.0 / - | 28.0 / - | 48.0 / 46.0 | 8 | 270-350 | |
| ULA 818-82 | 800-1000 | 15.5/ 14.0 | 0.25/ 0.50 | 1.5 / - | 1.5 / - | 28.0 / - | 48.0 / 46.0 | 8 | 270-350 |
