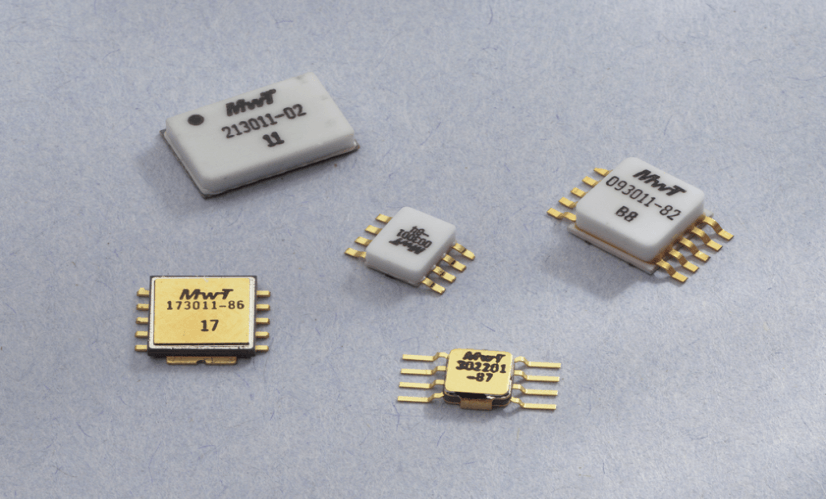

MPS / WPS WiMAX アンプ
取扱いメーカー
すぐお見積りいたします
| Model | Freq Range (MHz) | Linear Gain Typ (dB) | Gain ± Flatness Typ/Max (dB) | VSWR Input Typ (dB) | VSWR Output Typ (dB) | P-1dB Type (dBm) | IP3 Typ/Min (dBm) | DC Voltage (V) | DC Current Typ/Max (mA) |
|---|---|---|---|---|---|---|---|---|---|
| WPS-242717-02 | 2450-2700 | 13 | 0.30/0.60 | 1.5 | 2.5 | 28.5 | 45 | 7.5 | 330 |
| WPS-242717-82 | 2450-2700 | 13 | 0.30/0.60 | 1.5 | 2.5 | 28.5 | 45 | 7.5 | 330 |
| WPS-252717-82 | 2500-2700 | 13 | 0.30/0.60 | 1.5 | 2.5 | 28.5 | 45 | 7.5 | 300 |
| WPS-252724-02 | 2500-2700 | 14 | 0.30/0.60 | 1.5 | 2.5 | 36 | 50 | 8.5 | 1200 |
| WPS-252724-99 | 2500-2700 | 14 | 0.30/0.60 | 1.5 | 2.5 | 36 | 50 | 8.5 | 1200 |
| MPS-343717-02 | 3400-3700 | 13 | 0.30/0.60 | 1.5 | 2.5 | 29 | 45 | 7.5 | 380-450 |
| MPS-343617-82 | 3400-3600 | 13 | 0.30/0.60 | 1.5 | 2.5 | 29 | 48 | 7.5 | 380-450 |
| MPS-363817-82 | 3600-3800 | 13 | 0.30/0.60 | 1.5 | 2.5 | 29 | 48 | 7.5 | 380-450 |
| WPS-343722-02 | 3400-3700 | 13 | 0.30/0.60 | 1.5 | 2.5 | 32 | 47 | 8 | 600 |
| WPS-343724-02 | 3400-3700 | 14 | 0.30/0.60 | 1.5 | 2.5 | 36 | 50 | 8 | 1200 |
| WPS-343724-99 | 3400-3700 | 14 | 0.30/0.60 | 1.5 | 2.5 | 36 | 50 | 8 | 1200 |
| WPS-445124-02 | 4400-5100 | 10 | 2.5 | 3 | 36 | 49 | 8.5 | 1200 | |
| WPS-495917-02 | 4900-5900 | 13 | 0.30/0.60 | 1.5 | 2.5 | 28.5 | 44 | 7.5 | 300 |
| WPS-495922-02 | 4900-5900 | 11 | 0.30/0.60 | 1.5 | 2.5 | 32 | 47 | 7.5 | 600 |
