ローコスト・パッケージアンプ
取扱いメーカー
すぐお見積りいたします
仕様
| Model | Package Available Sealed / Hermetic | Gate Width / Length um | Gate Layout Method | Gate Drain Source Bond Pads Qty | Chip Thick-ness & VIA Hole mil, y/n | S.S. Gain @12GHz Typ/Max dB | N.F. @12Ghz Typ/Max dB | Ga @ N.F @12GHz Typ/Min dB | P-1dB @12GHz Typ dBm | IP3 @12GHz Typ dBm | Nominal Chip Size um - um | Ideal Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

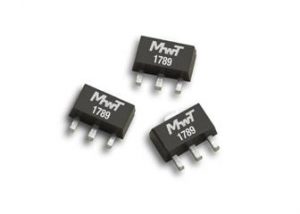

| MwT-1789 | sot89 | 2400/0.8 | Interdigit | 4, 4, 5 | 4, no | (3) | 18.0(1) | 28 | 44 | 1130 • 279 | Power Amp | |
| MwT-1789SB | sot89 | 2400/0.8 | Interdigit | 4, 4, 5 | 4, no | (3) | 18.0(1) | 28 | 44 | 1130 • 279 | Power Amp | |
| MwT-A989 | sot89 | 750/0.5 | Interdigit | 1, 1, 2 | 4, no | 17.0/15.0 (1) | 0.9 (1) | 25.0/23.0 | 40 | 419 • 292 | Power Amp | |
| MwT-17Q3 | QFN | 2400/0.8 | Interdigit | 4, 4, 5 | 4, no | 18.0/16.0(1) | 1.5(1) | 28.0/27.0 | 46 | 1130 • 279 | Power Amp | |
| MwT-22Q4 | QFN | 4800/0.5 | Interdigit | 6, 6, 7 | 4, no | 13.5/12.0(5) | 33.0/32.0 | 48 | 1651 • 508 | Power Amp |
SB = Self-Biased (1) @ 2.0GHz, (2) noise figure = 0.8dB @ 0.9Ghz, (3) noise figure = 3.0dB @ 2.0Ghz, (4) noise figure = 1.3dB @ 2.0Ghz, (5) @ 4.0Ghz
(*) NOTE: MwT-1789 comes in both HL (High Linearity) and LN (Low Noise) version. Both versions are available in four different frequency ranges: 900 MHz, 1.9 GHz, 2.5 GHz, 3.5 GHz.
(**) NOTE: MwT-A989 and MwT-1789 come in standard and SB (Single Biased).
(***) NOTE: MwT-17Q3 comes in four different frequency bands: 870–960MHz, 1.8–2.1GHz, 2.4–2.6GHz and 3.4–3.6GHz.
