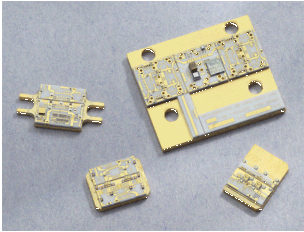

Standard Voltage Regulator Modules
取扱いメーカー
すぐお見積りいたします
| Model | Freq Range (GHz) | Insertion Loss Typ/Max dB | Ripple Rej @ 120Hz Min dB | Pw Diss Per VR Max Watts | Regulated Voltage Min / Max V | Supply Voltage Typ / Max V | Total Sup. Current Max mA | Case Code | Carrier Size mil x mil |
|---|---|---|---|---|---|---|---|---|---|
| MwT 0206-VRM | 2.0-6.0 | - / 0.5 | 50.0 | 1.5 | 7.9 / 8.1 | 12.0 / 20.0 | 800 | U/L-1 | 300 • 600 |
| MwT 0618-VRM | 6.0-18.0 | - / 1.0 | 50.0 | 1.5 | 7.9 / 8.1 | 12.0 / 20.0 | 800 | U/L-2 | 250 • 500 |
